Egenskaber

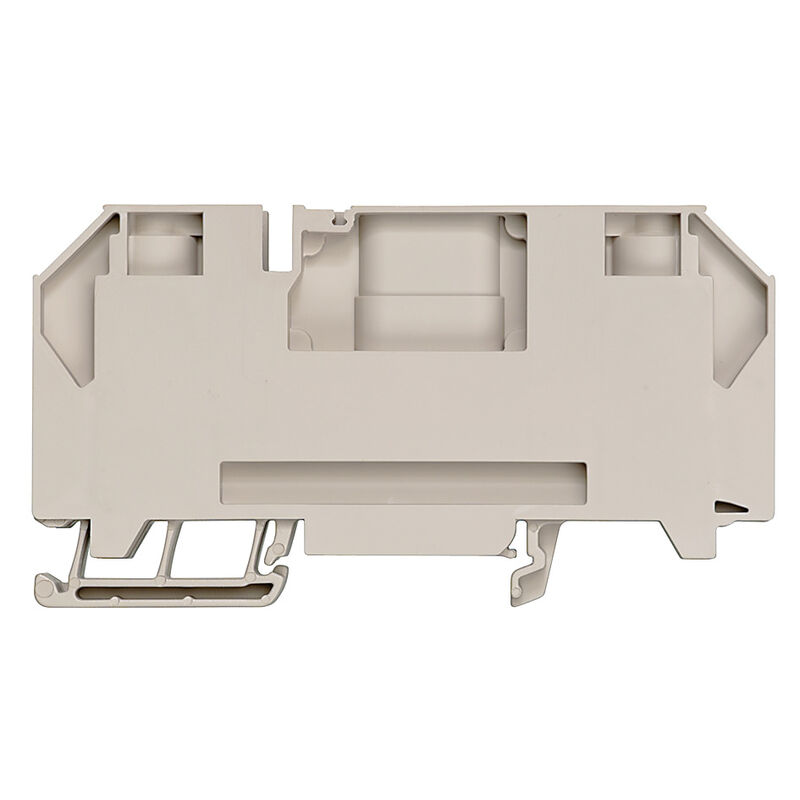

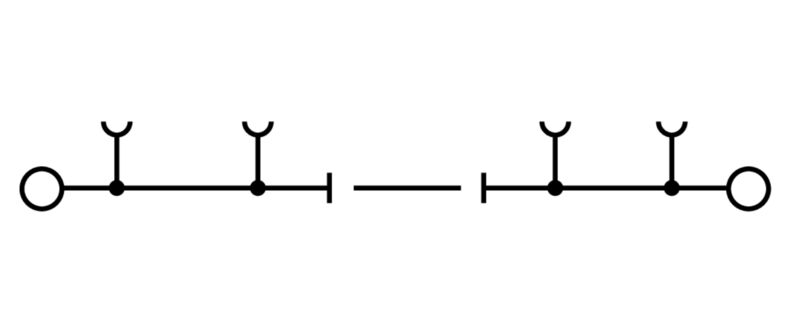

| Version | Measuring transformer disconnect terminal, Screw connection, 125, 2 |
| Order No. | 1925050000 |
| Type | WTL 35/1STB/WQV |
| GTIN (EAN) | 4032248566150 |
| Qty. | 10 Styk |
| Depth | 67,5 mm |
| Depth (inches) | 2,657 inch |
| 100 mm | |
| Height (inches) | 3,937 inch |
| Width | 16 mm |
| Width (inches) | 0,63 inch |
| Net weight | 94,688 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0eb7d846-d0a1-43e5-93a4-d7c6856c4cda |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
Spacer With sockets for screwable cross-connection in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | Yes |
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Blade size | 6.5 x 1.2 mm |
| Clamping range, max. | 35 mm² |
| Clamping range, min. | 4 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 35 mm² |
| Connection cross-section, stranded, min. | 10 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B9 |
| Number of connections | 2 |
| Stripping length | 18 mm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 4 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 4 mm² |
| TS 35 offset | 50 mm |
| Cross-disconnect | without |
| Integral test socket | Yes |
| Slitting | sliding |
| Torque max. screw separator | 2,4 Nm |
| Torque min. screw separator | 1,7 Nm |
| Rail | TS 35 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 12 |
| Rated cross-section | 35 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 125 A |
| Current at maximum wires | 125 A |
| Volume resistance according to IEC 60947-7-x | 0,26 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37278)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284528) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64914) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1925050000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1925050000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| Approvals |   |
| ROHS | Conform |
