ZDU 6 BL

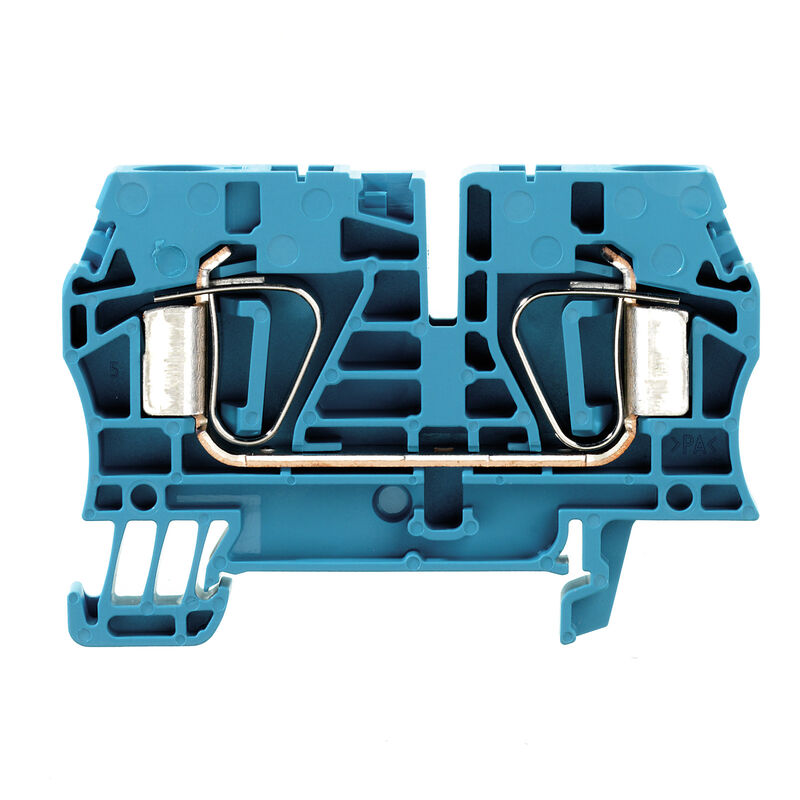

Product image
ZDU 6 BL

ZDU 6 BL

Feed-through terminal, Tension-clamp connection, 6 mm², 800 V, 41 A, blue

Produkt ID 1608630000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 29 Anvendte produkter 1056
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Feed-through terminal, Tension-clamp connection, 6 mm², 800 V, 41 A, blue
Order No.
1608630000
Type
ZDU 6 BL
GTIN (EAN)
4008190259259
数量
50 Styk

Dimensions and weights

Depth
45 mm
Depth (inches)
1,772 inch
Depth including DIN rail
45,5 mm
Height
65 mm
Height (inches)
2,559 inch
Width
8,1 mm
Width (inches)
0,319 inch
Net weight
17,19 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Termék karbonlábnyoma
  • Cradle to gate:
    0.149 kg CO2 eq.

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificat Nº (ATEX)
DEMKO15ATEX1467U
Tanúsítvány száma (IECEX)
IECEXULD15.0008U
Max. voltage (ATEX)
550 V
電流（ATEX）
39 A
Wire cross section max. (ATEX)
10 mm²
Max. feszültség (IECEX)
550 V
Current (IECEX)
39 A
最大導体断面積（IECEX）
10 mm²
マーキング EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Version
Tension-clamp connection
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35

Additional technical data

Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Typ připojení, další připojení
Tension-clamp connection

Conductors for clamping (rated connection)

Abisolierlänge
13 mm
Anschlussart
Tension-clamp connection
Anschlussrichtung
top
bliźniacza tulejka kablowa, maks.
2,5 mm²
bliźniacza tulejka kablowa, min.
0,5 mm²
Clamping range, max.
10 mm²
Connection cross-section, stranded, min.
0,22 mm²
Dimens. caña destornillador
1.0 x 5.5 mm
Gauge to IEC 60947-1
A5
Number of connections
2
Przekrój przyłącza przewodów, przewód jednodrutowy, maks.
10 mm²
Sección de conexión del conductor AWG, min.
AWG 22
Sección de embornado, mín.
0,22 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, max.
6 mm²
Wire connection cross section AWG, max.
AWG 8
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,22 mm²
Сечение подсоединяемого провода, тонкий скрученный, мин.
0,22 mm²
Сечение соединения проводов, твердое ядро, мин.
0,22 mm²
결선 단면적, 꼬임, 최대
6 mm²
와이어 결선 단면, 가는 꼬임, 최대
6 mm²
와이어 결선 단면, 가는 꼬임, 최소
0,22 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/1 채용 가는 꼬임, 최소
0,22 mm²

CSA rating data

Certifikat nr. (CSA)
200039-1152892
Current size D (CSA)
5 A
Ström Gr C (CSA)
50 A
Voltage size B (CSA)
600 V
Wire cross section min. (CSA)
20 AWG
Напряжение, класс C (CSA)
600 V
Поперечное сечение провода, макс. (CSA)
8 AWG
电压大小 D（CSA）
600 V
电流 大小 B (CSA)
50 A

General

Nosná lišta
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22

Rating data

Rated cross-section
6 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
41 A
Current at maximum wires
57 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
8 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size C (cURus)
50 A
Voltage size C (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
