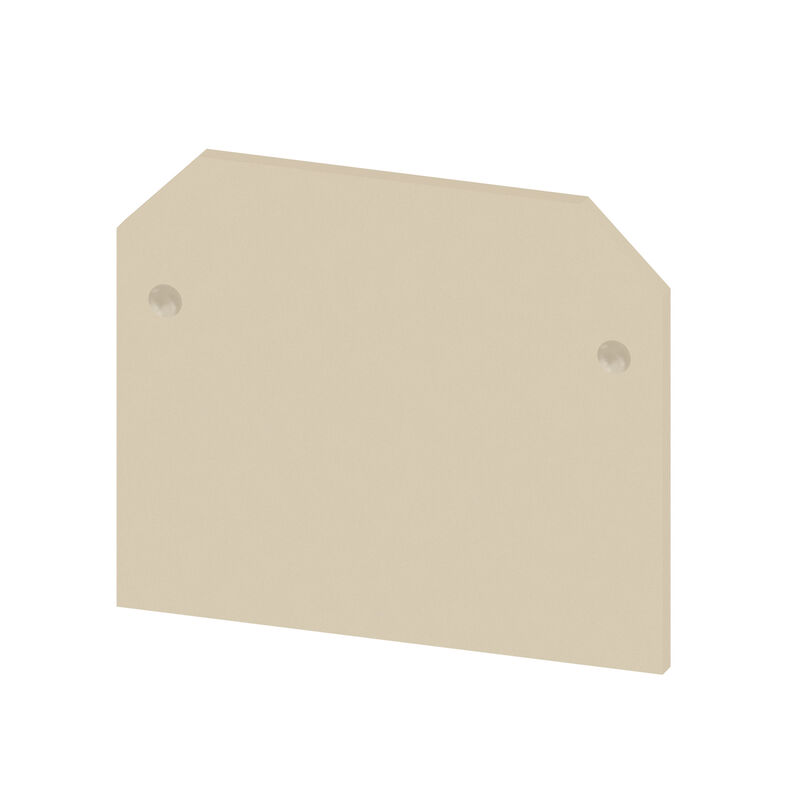

AP SAK2.5

AP SAK2.5

Ändplatta för plintar, beige, Höjd: 36.5 mm, Bredd: 1.5 mm, V-2, Polyamid 66, rastbar: Ja

Produkt ID 0279560000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 1 Anvendte produkter 420
Approvals Allmänna beställningsdata Dimensions and weights Temperaturer Экологическое соответствие изделия Material data Systemparametrar Additional technical data General Product images Classifications

Approvals

ROHS
Conform

Allmänna beställningsdata

Version
Ändplatta för plintar, beige, Höjd: 36.5 mm, Bredd: 1.5 mm, V-2, Polyamid 66, rastbar: Ja
Order No.
0279560000
Type
AP SAK2.5
GTIN (EAN)
4008190075736
Qty.
20 Styk

Dimensions and weights

Depth
31,1 mm
Depth (inches)
1,224 inch
Height
36,5 mm
Height (inches)
1,437 inch
Width
1,5 mm
Width (inches)
0,059 inch
Net weight
1,685 g

Temperaturer

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Экологическое соответствие изделия

RoHS Compliance Status
Kompatibel utan undantag
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.017 kg CO2eq.

Material data

Basic material
Polyamide 66
Colour
beige
UL 94 flammability rating
V-2

Systemparametrar

Version
End plate

Additional technical data

Installation advice
Direct mounting
Snap-on
Yes

General

Installation advice
Direct mounting

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
