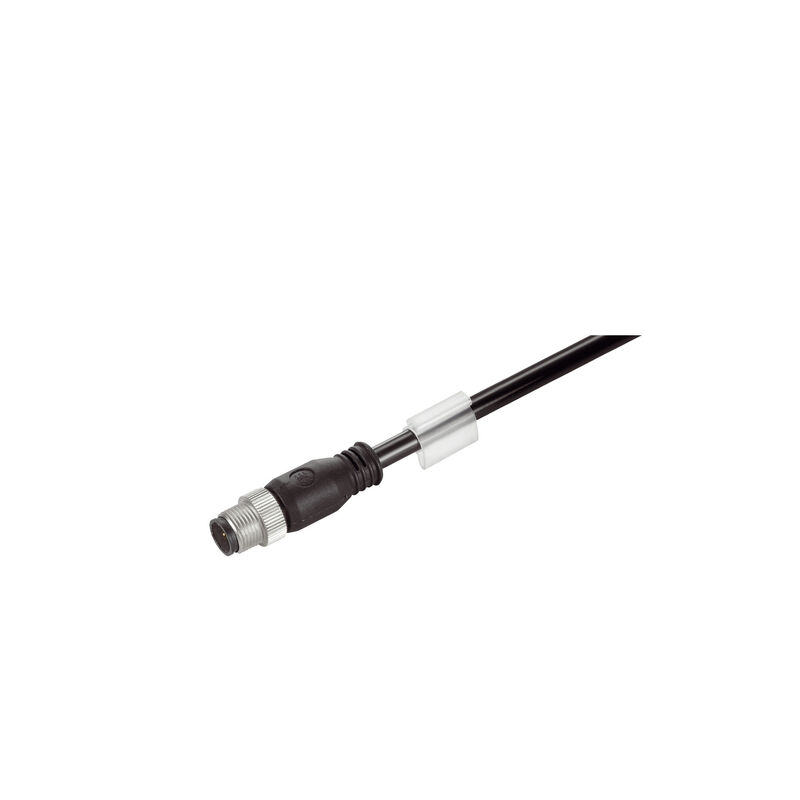

System cable, M12 D-code – IP 67 straight pin, Open, Cat. 5e, Radox EM 104, 8.5 m

Product ID 1010840085
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 8 Verwante producten 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Versione
System cable, M12 D-code – IP 67 straight pin, Open, Cat. 5e, Radox EM 104, 8.5 m
주문 번호
1010840085
Type
IE-C5DB4RE0085MCSXXX-X
GTIN (EAN)
4050118514551
Qty.
1 items

Dimensions and weights

Length
8,5 m
Length (inches)
334,646 inch
Net weight
672 g

Temperatures

Operating temperature
-25 °C...85 °C
Installation temperature
-25 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Corrosiveness of fumes
EN 50267-2-2
Fire safety for railway vehicles
According to BS 6853, GM/RT 2130, la,lb, II
According to EN 45545, HL1 - HL3
According to DIN 5510 1-4
According to NF F16-101, A1, A2, B
According to UNI CEI 11170, LR1-LR4
NFPA 130
Hydrogen halide content
According to EN-50267-2-1
Impervious to smoke
According to BS 6853 Appendix D
According to IEC 61034-2
According to UL1685, 12 (FT4 exp.)
Lodrät flamutbredning i kabelbuntar
in accordance with EN 50266
EN 50305
EN 60332-3-25
According to NF C32-070, 2.1
According to UL1685, 12 (FT4 exp.)
Multi-wire metallic data and control cable
According to EN50288-2-2
Poisonous gases
According to BS 6853 Appendix B
Zawartość fluoru
According to EN 60684-2 Section 45.2

General standards

Connector standard
IEC 61076-2-101

Cable structure

Barevné kódování
yellow
white
orange
blue
Cross-section
4*AWG 22/7 - 0.32 mm²
Insulation
PE
Insulation cross-section
1,95 mm
Material sheath
Radox EM 104
Number of wires
4
Sheath diameter, max.
7,55 mm
Sheath diameter, min.
6,95 mm
Sheathing colour
black
Shielding
SF/UTP
Wire connection cross section AWG, max.
AWG 22
Wire material
Copper alloy

Electrical properties of cable

Category
Cat. 5e

Mechanical and material properties of cable

Corrosiveness of fumes
EN 50267-2-2
Halogen
No
Impervious to smoke
According to BS 6853 Appendix D
According to IEC 61034-2
According to UL1685, 12 (FT4 exp.)
Min. bending radius, once only
10 x cable diameter
Min. bending radius, repetitive
6 *diameter
Resistance to oils
in accordance with EN 50264-1 or EN 50306-1
Resistance to spread of flame
in accordance with IEC 60332-1-2
According to NF C32-070, 2.1
NFPA 130

Plug, left

Plug left
M12, D-coded, Number of poles: 4, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Штекер правый
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
