IE-FPOZ2EE0020MSJ0SJ0-X

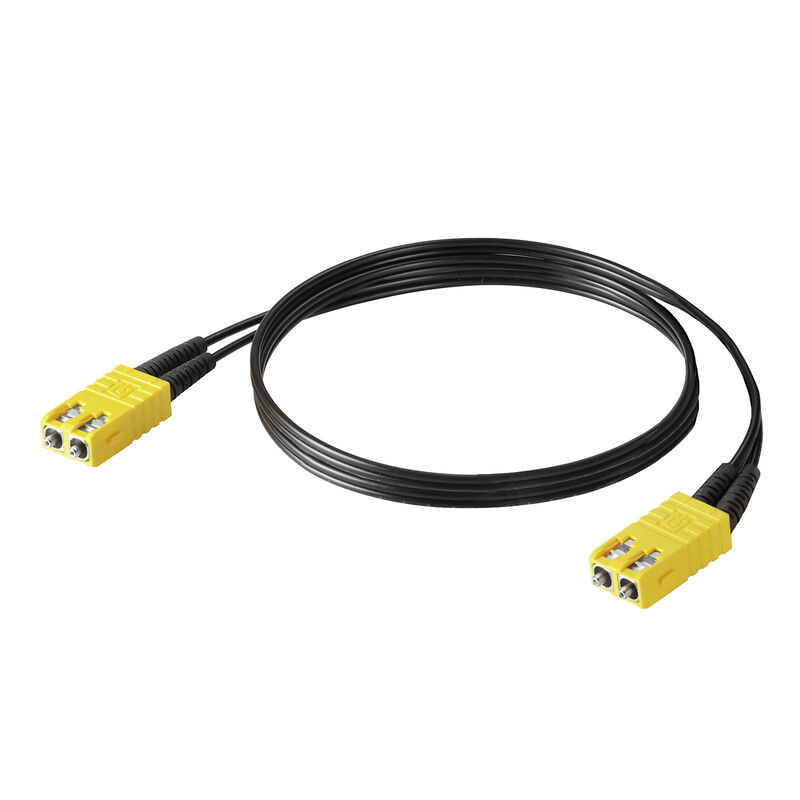

Connecting line, PROFINET, SCRJ IP 20, SCRJ IP 20, 980 µm, Polyethylene, 20 m

Product ID 1273430200
Gegevensblad downloaden Productdownloads
Toebehoren 2 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Connecting line, PROFINET, SCRJ IP 20, SCRJ IP 20, 980 µm, Polyethylene, 20 m
N. d’ordine
1273430200
Type
IE-FPOZ2EE0020MSJ0SJ0-X
GTIN(EAN)
4050118272611
Qty.
1 items

Dimensions and weights

長さ
20 m
Length (inches)
787,402 inch
Net weight
170 g

Temperatures

작동 온도
-20 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

General standards

Csatlakozó, standard
IEC 61754-24

Standards

Connettori a norma
IEC 61754-24

Fibre-optic

Attenuation
≤ 160 dB/km at 650 nm
Bandwidth
≥ 100 MHz*km at 650 nm
Dämpning
≤ 1.0 dB
Тип волокна
POF

Cable structure

Cable layout
ZIPCORD
Insulation
PE
Material sheath
Polyethylene
Número de conductores
2
Sheath diameter
2.2*4.5 mm
Érátmérő
980 µm
Цвет оболочки
black

Mechanical and material properties of cable

Bending cycles
10.000
Halogen
No
Min. bending radius, once only
25 mm
Min. bending radius, repetitive
25 mm
Pulling force
≤ 160 N

Plug

Plug left
SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
