LM MT300 26/10 SI
LM MT300 26/10 SI

LM MT300 26/10 SI

Dette produkt er snart ikke længere tilgængeligt.

Alternative produkt: 1751760001

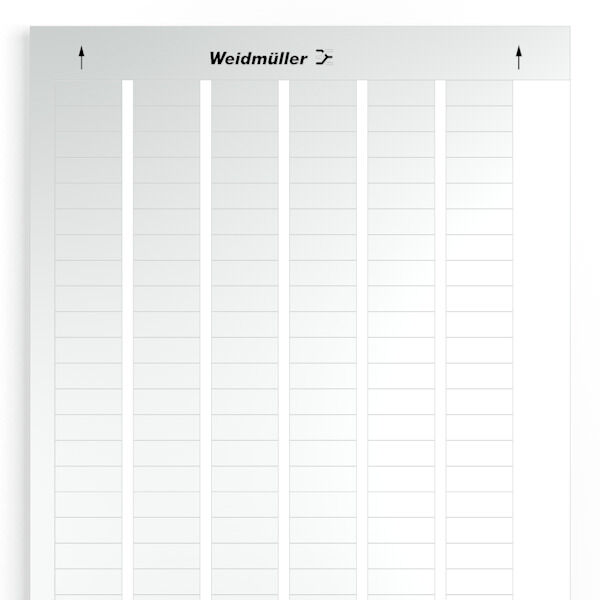

LaserMark, Repérage d’équipements et appareillages, 10 x 26 mm, argent

Produkt ID 1686400001
Download datablad Engineering-support Produktdownloads
Anvendte produkter 3
Approvals Informations générales de commande Dimensions and weights Temperatures Conformité environnementale du produit General data Device markers Klasyfikacje

Approvals

ROHS
Conform

Informations générales de commande

Version
LaserMark, Repérage d’équipements et appareillages, 10 x 26 mm, argent
Order No.
1686400001
Type
LM MT300 26/10 SI
GTIN (EAN)
4008190494001
Qty.
10 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1778709600000)/
Alternative product
[1751760001](~/p/1751760001)

Dimensions and weights

Depth
0,08 mm
Mélység (coll)
0,003 inch
Height
10 mm
Wysokość (cale)
0,394 inch
Width
26 mm
Width (inches)
1,024 inch
Net weight
10,8 g

Temperatures

Operating temperature range
-40...150 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Acrylate adhesive
Approval acc. to UL 969
Yes
Basic material
Polyester, PVC-free
Colour
silver
Halogen
No
Number of markers per combination
1 Label sheet = 156 Device markers
Number of markers per packaging unit
1560
Number of markers per packaging unit
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    156
Number per sheet
156
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Printing method
Laser print
UL 94 flammability rating
HB
Version
selbstklebend
Width
26 mm

Device markers

Halogen
No

Klasyfikacje

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
