LUF 10.00/04/90 5.0SN BK BX
LUF 10.00/04/90 5.0SN BK BX

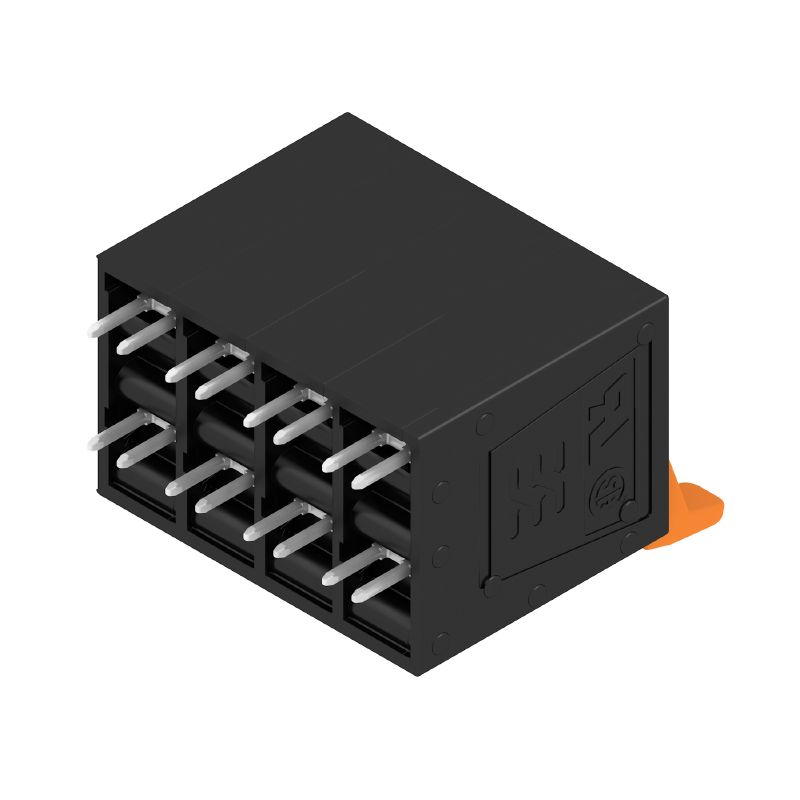

Product image
LUF 10.00/04/90 5.0SN BK BX
Product image
LUF 10.00/04/90 5.0SN BK BX
Dimensional drawing
LUF 10.00/04/90 5.0SN BK BX
Derating curve
LUF 10.00/04/90 5.0SN BK BX
Derating curve
LUF 10.00/04/90 5.0SN BK BX
Product benefits
High stability through pin design
LUF 10.00/04/90 5.0SN BK BX
Product image
PUSH IN connection up to 16 mm²

LUF 10.00/04/90 5.0SN BK BX

Printed circuit board terminals, 10.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5 mm, tinned, black, PUSH IN with lever, Clamping range, max. : 25 mm², Box

Product ID 1988620000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 1 Verwante producten 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 10.00 mm, Number of poles: 4, 90°, Solder pin length (l): 5 mm, tinned, black, PUSH IN with lever, Clamping range, max. : 25 mm², Box
Order No.
1988620000
Type
LUF 10.00/04/90 5.0SN BK BX
GTIN (EAN)
4050118373240
Qty.
30 items
Product data
IEC: 1000 V / 101 A / 0.5 - 25 mm²
UL: 300 V / 61 A / AWG 18 - AWG 6
Packaging
Box

Dimensions and weights

Depth
26,45 mm
Глубина (дюймов)
1,041 inch
Height
47,03 mm
Height (inches)
1,852 inch
Height of lowest version
42,03 mm
Width
41,58 mm
Width (inches)
1,637 inch
Масса нетто
43,633 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Power - series LU
Wire connection method
PUSH IN with lever
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
10 mm
Pitch in inches (P)
0,394 "
Number of poles
4
Количество полюсных рядов
1
Fitted by customer
No
Number of rows
1
Solder pin length (l)
5 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder eyelet hole diameter (D)
1,6 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
4
Screwdriver blade
0.8 x 4.0
Stripping length
18 mm
L1 in mm
30 mm
L1 in inches
1,181 "
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Touch-safe protection acc. to DIN VDE 57 106
touch-safe with connected connectors from 6 mm²
Protection degree
IP20

Material data

Materiales aislantes
Wemid (PA)
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 600
Класс пожаростойкости UL 94
V-0
Contact base material
E-Cu
Material de contacto
Cu-alloy
Contact surface
tinned
Estructura de capas de la conexión por soldadura
4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-40 °C
Operating temperature, max.
120 °C

Conductors suitable for connection

Sección de embornado, mín.
0,5 mm²
25 mm²
Sección de conexión del conductor AWG, min.
AWG 20
Sección de conexión del conductor AWG, máx.
AWG 4
Rígido, mín. H05(07) V-U
0,5 mm²
Rigide, max. H05(07) V-U
16 mm²
꼬임, 최소 H07V-R
6 mm²
многожильный, макс. H07V-R
25 mm²
Flexible, mín. H05(07) V-K
0,5 mm²
Flexible, máx. H05(07) V-K
25 mm²
con term. tub. con aislamiento DIN 46 228/4,mín.
0,5 mm²
con term. tub. con aislamiento DIN 46 228/4,máx
16 mm²
con terminal tubular, DIN 46228 pt 1, mín.
0,5 mm²
con terminal tubular según DIN 46 228/1, máx.
16 mm²
Plug gauge in accordance with EN 60999 a x b; ø
5.3mm (B6)
Conductor embornable
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      9019180000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004090000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      9019210000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004110000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      0565700000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004130000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      10 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        21 mm
    • Recommended wire-end ferrule:
      0565800000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0379300000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      16 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        21 mm
    • Recommended wire-end ferrule:
      0566000000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      0375200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        20 mm
    • Recommended wire-end ferrule:
      0565600000
    • Stripping length:
      • nominal:
        18 mm
    • Recommended wire-end ferrule:
      9004070000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60947-7-4
Corriente nominal, número de polos mín. (Tu=20 °C)
101 A
Corriente nominal, número de polos máx. (Tu=20 °C)
101 A
Rated current, min. number of poles (Tu=40°C)
101 A
Rated current, max. number of poles (Tu=40°C)
95 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
1.000 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
690 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
630 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
6 kV

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
150 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
61 A
Rated current (Use group C / CSA)
61 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 18
Wire cross-section, AWG, max.
AWG 6

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
150 V
Märkspänning (användargrupp D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
61 A
Märkström (användargrupp C / UL 1059)
61 A
Rated current (Use group D / UL 1059)
5 A
Wire cross-section, AWG, min.
AWG 18
Wire cross-section, AWG, max.
AWG 6
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
315 mm
VPE width
132 mm
VPE height
53 mm

Type tests

Test: Durability of markings
  • Standard:
    IEC 60947-1 section 8.2.4.5.1 / 06.07, IEC 60512-1-1:2002-02
  • Test:
    mark of origin, type identification, pitch, durability, stripping length
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 16 mm²
    • Type of conductor and conductor cross-section:
      stranded 16 mm²
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-U6
    • Type of conductor and conductor cross-section:
      H07V-K16
    • Type of conductor and conductor cross-section:
      AWG 4
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    2.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
  • Evaluation:
    passed
  • Requirement:
    4,5 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 4/7
    • Type of conductor and conductor cross-section:
      AWG 4/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 20/1
    • Type of conductor and conductor cross-section:
      AWG 20/19
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥100 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U16
    • Type of conductor and conductor cross-section:
      H07V-K16
  • Evaluation:
    passed
  • Requirement:
    ≥ 135 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 4/7
    • Type of conductor and conductor cross-section:
      AWG 4/19
  • Evaluation:
    passed

Important note

IPC shoda
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • The single-position PCB terminal block can be used for voltages up to 1500 V (DC) and 1000 V (AC). The relevant device standard and the appropriate required clearances and creepage distances should be observed in the application
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Product images

Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
