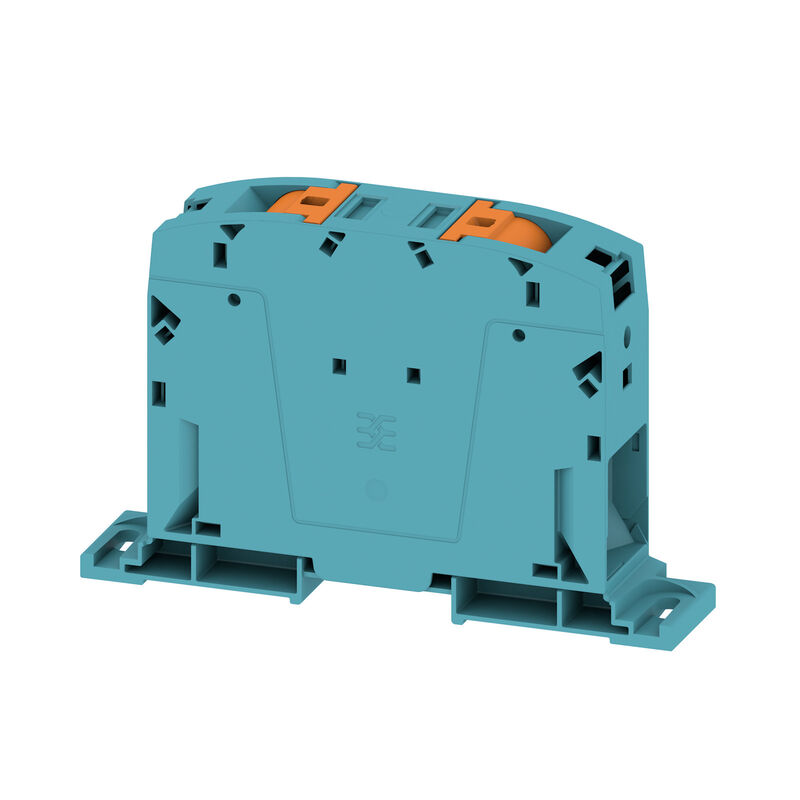

A2C 150/185 BL-DM

Feed-through terminal, PUSH IN, 150 mm², 1000 V, 309 A, blue

Produkt ID 2728780000

Version	Feed-through terminal, PUSH IN, 150 mm², 1000 V, 309 A, blue
Order No.	2728780000
Type	A2C 150/185 BL-DM
GTIN (EAN)	4050118801736
Qty.	5 Styk

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Colour	blue
Colour of operational elements	orange
UL 94 flammability rating	V-0

End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	Mounting plate
N-function	No
PE function	No
PEN function	No

Connection type, additional connection

PUSH IN

Blade size	1.0 x 5.5 mm
Clamping range, max.	185 mm²
Clamping range, min.	50 mm²
Connection cross-section, stranded, max.	185 mm²
Connection cross-section, stranded, min.	50 mm²
Connection direction	on side
Gauge to IEC 60947-1	B13
Number of connections	2
Stripping length	40 mm
Type of connection	PUSH IN
Wire connection cross section AWG, max.	kcmil 300
Wire connection cross section AWG, min.	AWG 1/0
Wire connection cross section, finely stranded, max.	185 mm²
Wire connection cross section, finely stranded, min.	50 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	50 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	150 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	50 mm²
Wire connection cross-section, solid core, max.	150 mm²
Wire connection cross-section, solid core, min.	50 mm²

Rail	Mounting plate
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	kcmil 300
Wire connection cross section AWG, min.	AWG 1/0

Rated cross-section	150 mm²
Rated voltage	1.000 V
Rated DC voltage	1.500 V
Rated current	309 A
Current at maximum wires	309 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0,1 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	9,89 W
Pollution severity	3
Surge voltage category	III

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	350 kcmil
Conductor size Factory wiring min. (cURus)	2 AWG
Conductor size Field wiring max. (cURus)	350 kcmil
Conductor size Field wiring min. (cURus)	2 AWG
Current size B (cURus)	310 A
Current size C (cURus)	310 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V

Product information

The max. connectable wire reduces by one wire size if a cross connector is used that has to be mounted in the wire entry.
