Egenskaber
| Version | A-series, End plate |
| Order No. | 2052350000 |

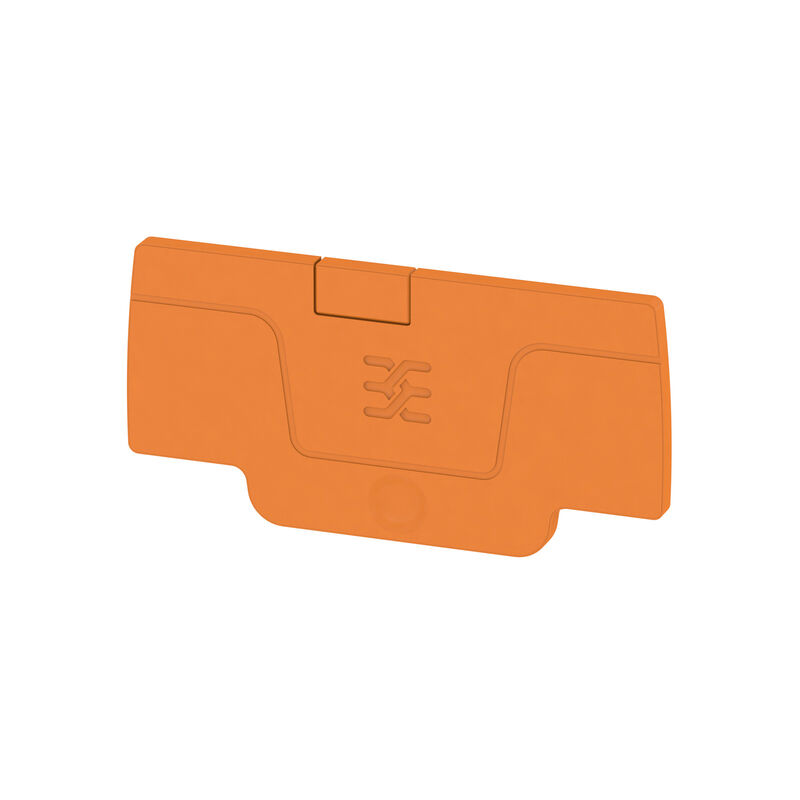

| Type | AEP 2C 1.5 OR |
| GTIN (EAN) | 4050118411980 |
| Qty. | 50 Styk |
| Depth | 26,3 mm |
| Depth (inches) | 1,035 inch |
| Height | 52,76 mm |
| Height (inches) | 2,077 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 1,36 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Snap-on | Yes |
| With snap-in pegs | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65865) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2052350000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2052350000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2052350000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2674600000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, blue
-
Produkt ID:2674590000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
-
Produkt ID:2674610000Pakningsenhed:50 Styk
PE terminal, PUSH IN, 1.5 mm², Green/yellow
-
Produkt ID:2482230000Pakningsenhed:50 Styk
PE terminal, PUSH IN, pluggable, 1.5 mm², 500 V, Green/yellow
-
Produkt ID:2482170000Pakningsenhed:50 Styk
Feed-through terminal, PUSH IN, Plug-in connection, 1.5 mm², 500 V, 17.5 A, blue
-
Produkt ID:2482160000Pakningsenhed:50 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
-
Produkt ID:2482220000Pakningsenhed:50 Styk
PE terminal, pluggable, PUSH IN, 1.5 mm², 500 V, Green/yellow
-
Produkt ID:2508220000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, Light Grey
-
Produkt ID:2508210000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, green
-
Produkt ID:2508190000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, yellow
-
Produkt ID:2508200000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, brown
-
Produkt ID:1552790000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
-
Produkt ID:1552830000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, orange
-
Produkt ID:2508170000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, black
-
Produkt ID:2508160000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, white
-
Produkt ID:1552820000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, blue
-
Produkt ID:2508180000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, Dark Blue
-
Produkt ID:2508020000Pakningsenhed:100 Styk
Feed-through terminal, PUSH IN, 1.5 mm², 500 V, 17.5 A, red
-
