Egenskaber

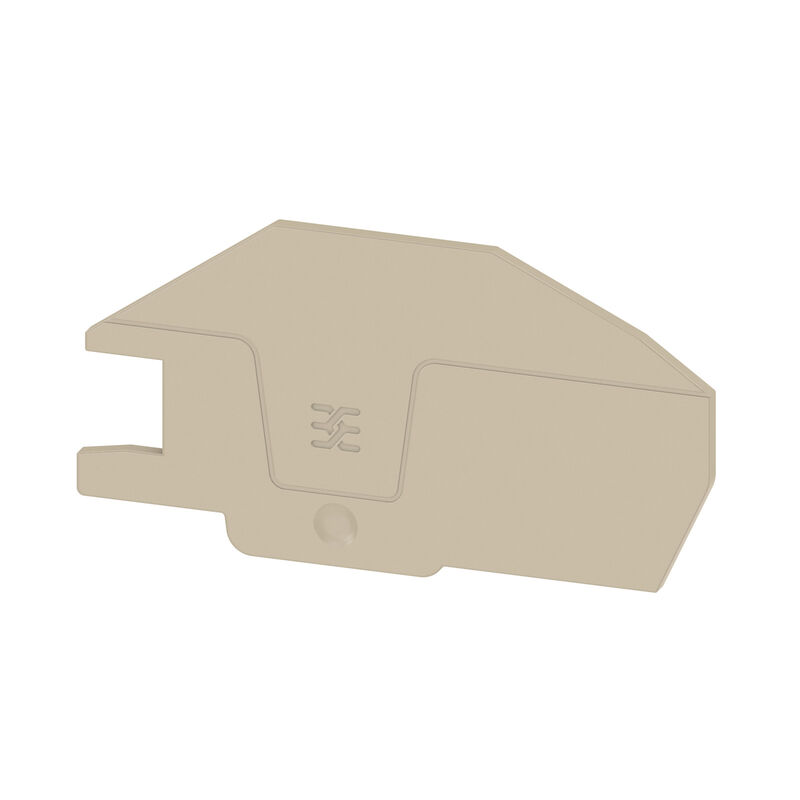

| Version | A-series, End plate |
| Order No. | 2668840000 |
| Type | AEP ITB 16 BB 2C |
| GTIN (EAN) | 4064675266266 |
| Qty. | 20 Styk |
| Height | 83,48 mm |
| Height (inches) | 3,287 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 3,45 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253725) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2668840000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2668840000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2668840000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2668740000Pakningsenhed:20 Styk
Multi level installation terminal block, PUSH IN, dark beige, 16 mm², 76 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2668750000Pakningsenhed:20 Styk
Multi level installation terminal block, PUSH IN, blue, 16 mm², 76 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:2668760000Pakningsenhed:20 Styk
PE terminal, PUSH IN, Green/yellow, 16 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocks1-tier16 mm²
Enkeltdel til
-
Produkt ID:2938390000Pakningsenhed:1 Styk
Toolbox (with contents), black, Width: 365 mm, Height: 135 mm, Depth: 445 mm
Terminal BlocksApplication rangeBuilding installation wiringAssortment case / L-BOXX
