Egenskaber

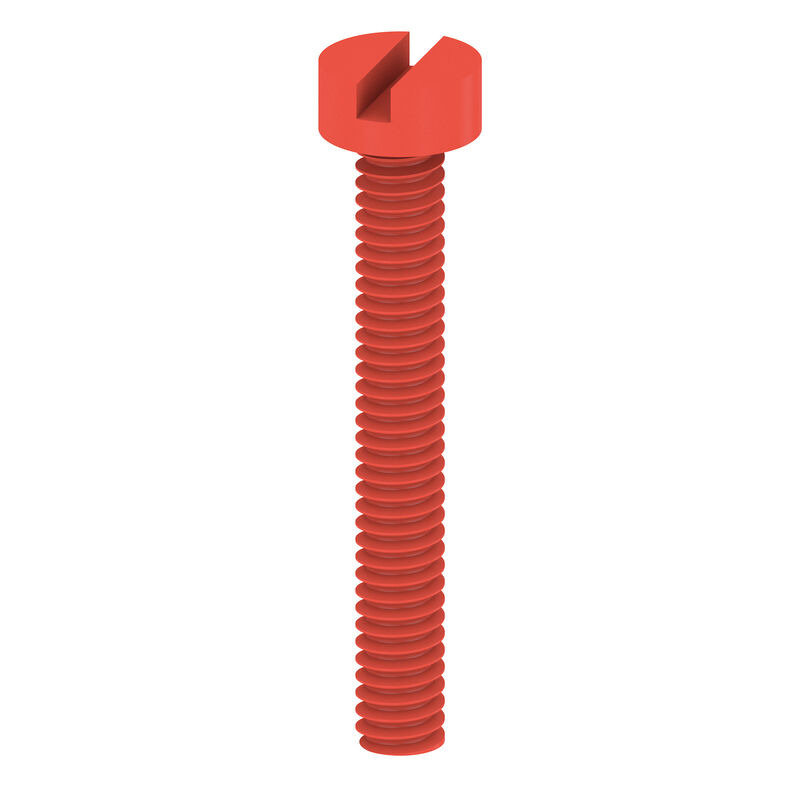

| Version | Mounting screw (Terminal), 2.50 mm, Polyamide 66, Depth: 3.8 mm, Width: 4.5 mm, Height: 18 mm |
| Order No. | 0303300000 |
| Type | BFSC M2.5X18 PA/RT |
| GTIN (EAN) | 4008190040673 |
| Qty. | 100 Styk |
| Depth | 3,8 mm |
| Depth (inches) | 0,15 inch |
| Height | 18 mm |
| Height (inches) | 0,709 inch |
| Width | 4,5 mm |
| Width (inches) | 0,177 inch |
| Diameter | 2,5 mm |
| Net weight | 0,095 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Colour | red |
| UL 94 flammability rating | V-2 |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Diameter | 2,5 mm |
| Metric size of the thread, external | 2,5 mm |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 100 °C |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0303300000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:0396860000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0396960000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0396660000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0396760000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:8014720000Pakningsenhed:10 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0538960000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0396360000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0538980000Pakningsenhed:25 Styk
Component terminal block, Screw connection, blue, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0538860000Pakningsenhed:25 Styk
Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0321560000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1, Mounting plate, V-2, PA 66, 100 °C
-
Produkt ID:0355460000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Produkt ID:0590080000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Produkt ID:0355480000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Produkt ID:0590260000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Produkt ID:0590060000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66
-
Produkt ID:0363680000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0590180000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0590160000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0363660000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0527660000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:1572700000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 800 V, 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0527680000Pakningsenhed:25 Styk
Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66
-
Produkt ID:0366560000Pakningsenhed:10 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 690 V, Number of connections: 20, Number of levels: 1, TS 15, V-2, PA 66, 100 °C
-
Produkt ID:0294320000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, medium yellow, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1, TS 15, V-0, 5VA, KrG, 130 °C
-
Produkt ID:0489560000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 690 V, Number of connections: 2, Number of levels: 1, TS 15, V-2, PA 66, 100 °C
-
Produkt ID:1538260000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1, TS 15, V-2, PA 66, 100 °C
-
Produkt ID:0303400000Pakningsenhed:50 Styk
Terminal cover, yellow, PVC, Height: 24.2 mm, Width: 20 mm, Depth: 1 mm, V-2
-
Produkt ID:0297900000Pakningsenhed:50 Styk
Terminal cover, yellow, PVC, Height: 24 mm, Width: 18 mm, Depth: 1 mm, V-2
