Egenskaber

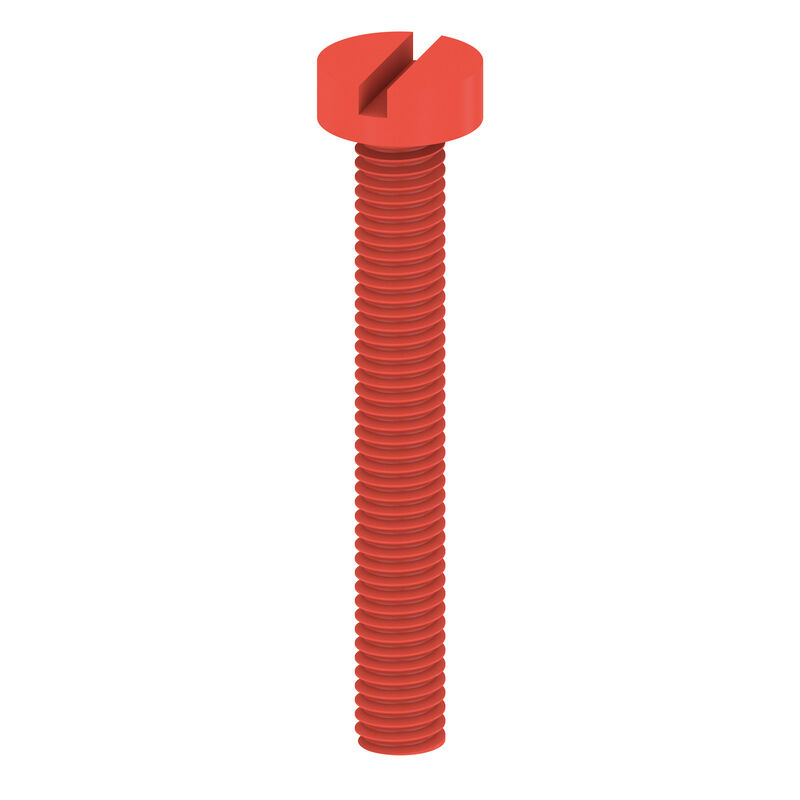

| Version | Mounting screw (Terminal), 3.00 mm, Polyamide 66, Depth: 4.8 mm, Width: 4.8 mm, Height: 22 mm |
| Order No. | 0128900000 |
| Type | BFSC M3X22 PA/RT |
| GTIN (EAN) | 4008190084158 |
| Qty. | 100 Styk |
| Depth | 4,8 mm |
| Depth (inches) | 0,189 inch |
| Height | 22 mm |
| Height (inches) | 0,866 inch |
| Width | 4,8 mm |
| Width (inches) | 0,189 inch |
| Net weight | 0,17 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Polyamide 66 |
| Colour | red |
| UL 94 flammability rating | V-2 |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Metric size of the thread, external | 3 mm |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 100 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58790) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0128900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0128900000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
