Egenskaber

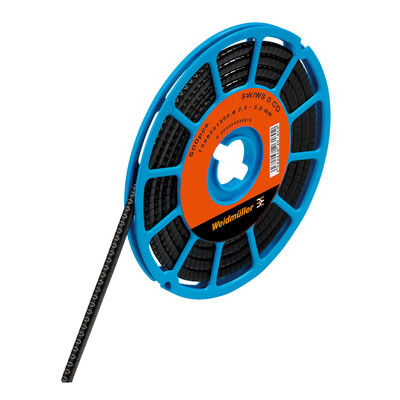

| Version | CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, black |
| Order No. | 1568251694 |
| Type | CLI C 1-3 SW NE CD |
| GTIN (EAN) | 4032248262052 |
| Qty. | 500 Styk |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 3 mm |
| Height (inches) | 0,118 inch |
| Width | 4,2 mm |
| Width (inches) | 0,165 inch |
| Net weight | 0,078 g |
| Operating temperature range | -30...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Halogen | Yes |
| Insulation cross-section, max. | 5 |
| Material | PVC, soft, without Cadmium |
| Material colour according to resistance code | 0 |
| Number of markers per combination | 1 Reel = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Printing | Blank |
| Recommended industries |
Process
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Version | CD |
| Width | 4,2 mm |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.5 - 5 mm |
| Conductor O.D., max. | 5 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 1.5 - 4 mm² |
| Halogen | Yes |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1568251694) |
| Product Change Notification |
[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
