Egenskaber

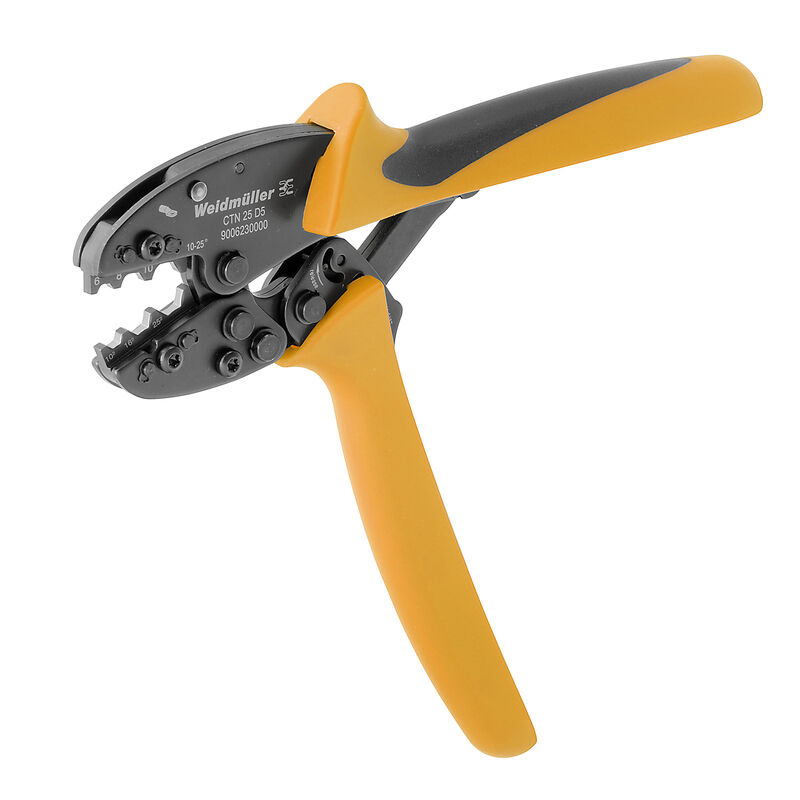

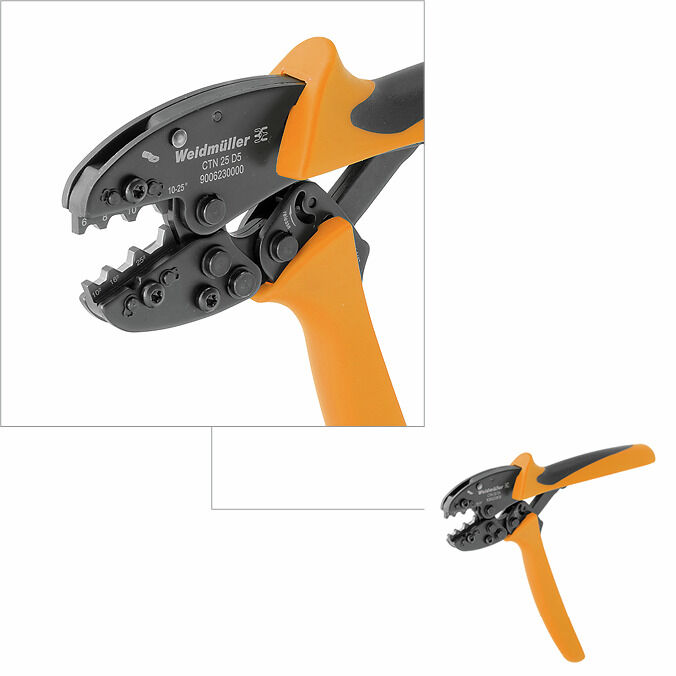

| Version | Pressing tool, Crimping tool for contacts, 10mm², 25mm², Hexagonal crimp |
| Order No. | 9006230000 |
| Type | CTN 25 D5 |
| GTIN (EAN) | 4008190198459 |
| Qty. | 1 Styk |
| Width | 250 mm |
| Width (inches) | 9,842 inch |
| Net weight | 645,78 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |

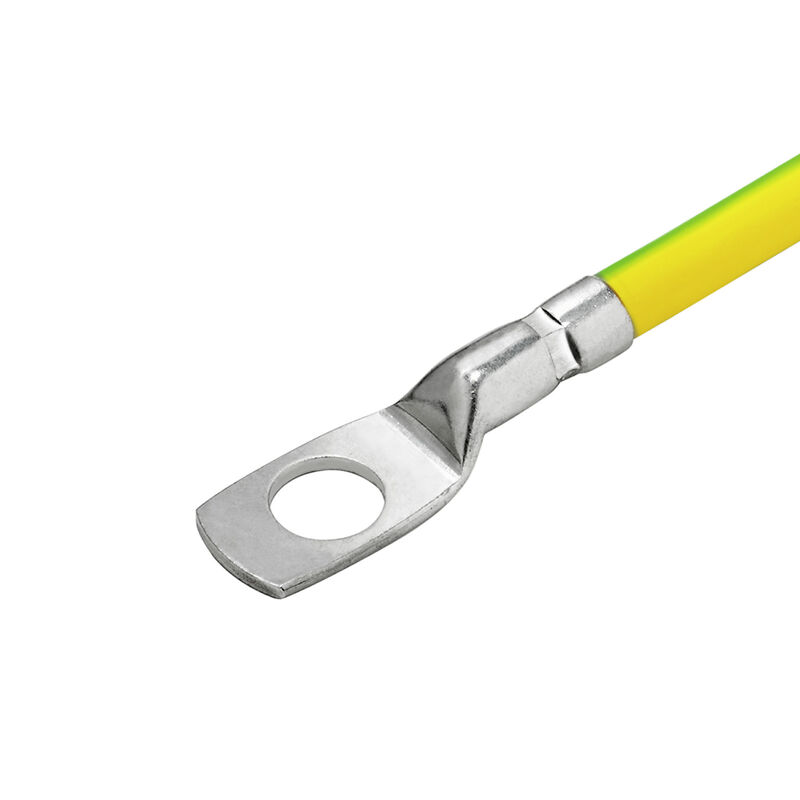

| Description of article | Crimping tool for non-insulated connectors, 10-25 mm² (tubular cable lug) |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 4 |
| Conductor cross-section, min. AWG | AWG 8 |
| Crimping range, max. | 25 mm² |
| Crimping range, min. | 10 mm² |
| Type of contact | Uninsulated connection |
| Crimping type/profile | Hexagonal crimp |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101169) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
