Egenskaber

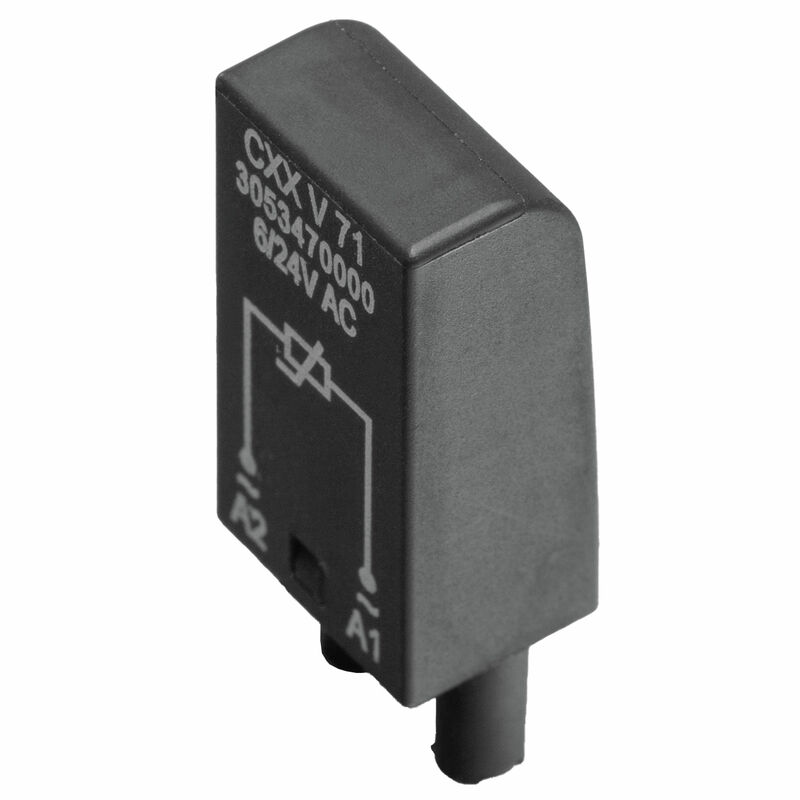

| Version | CUBESERIES, Protective varistor, Rated control voltage: 6…24 V AC, Plug-in connection |
| Order No. | 3053470000 |
| Type | CXX V 71 |
| GTIN (EAN) | 4099987023252 |
| Qty. | 20 Styk |

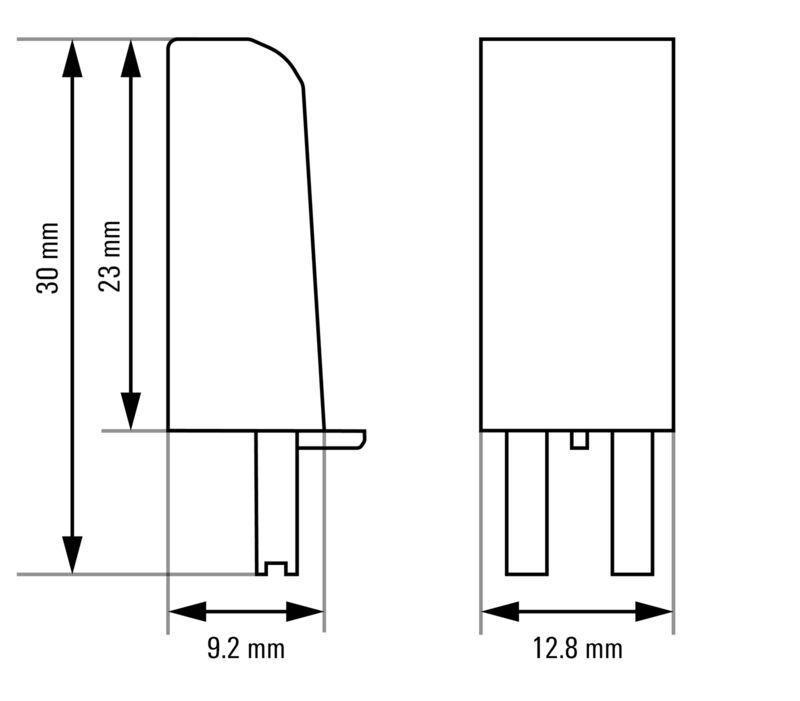

| Depth | 23 mm |
| Depth (inches) | 0,906 inch |
| Height | 9,2 mm |
| Height (inches) | 0,362 inch |
| Width | 12,8 mm |
| Width (inches) | 0,504 inch |
| Net weight | 2 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage | 6…24 V AC |
| Status indicator | No |

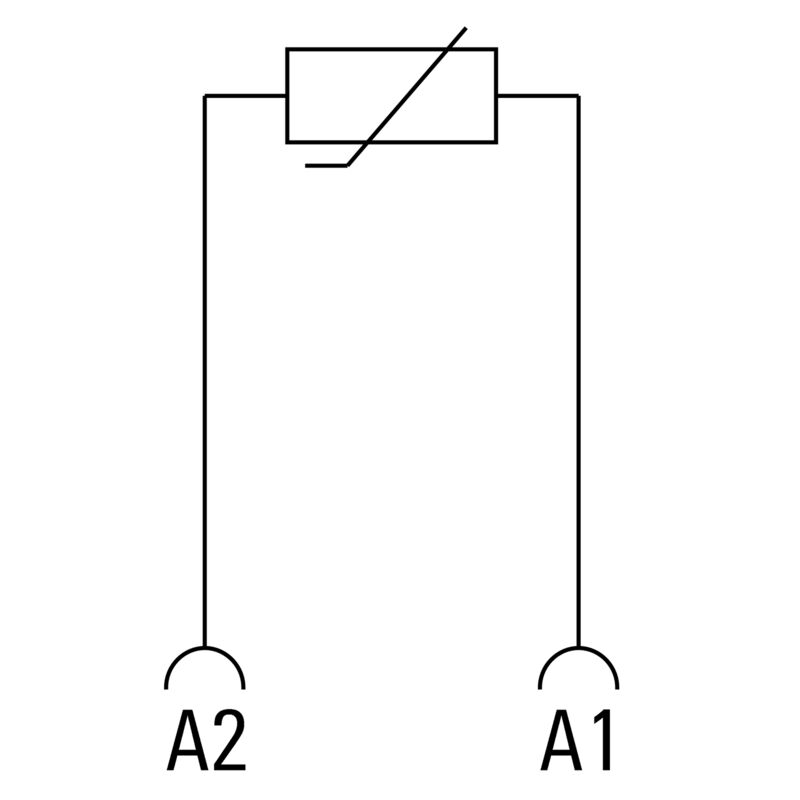

| Protective circuit | Varistor |
| UL94 flammability rating component |
|
| Wire connection method | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_319078) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-10-10 |
| ECLASS 10.0 | 27-37-10-10 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
