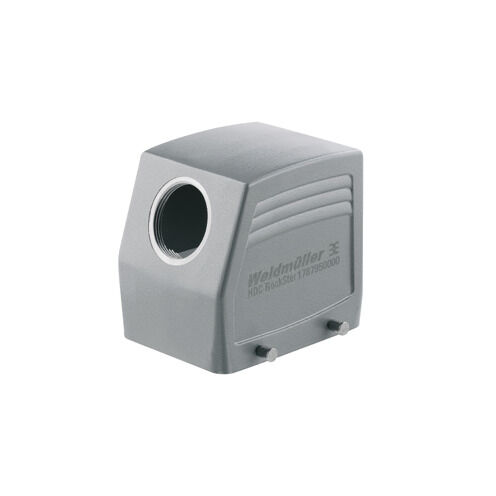

HDC enclosures, Installation size: 7, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 32

Produkt ID 1787950000
Download datablad Engineering-support Produktdownloads
Tilbehør 3 Er tilbehør til 12 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC enclosures, Installation size: 7, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 32
Order No.
1787950000
Type
HDC 32A TSBU 1M32G
GTIN (EAN)
4032248205394
Qty.
1 Styk

Dimensions and weights

Depth
82 mm
Depth (inches)
3,228 inch
Height
77 mm
Height (inches)
3,031 inch
Width
71 mm
Width (inches)
2,795 inch
Net weight
259 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

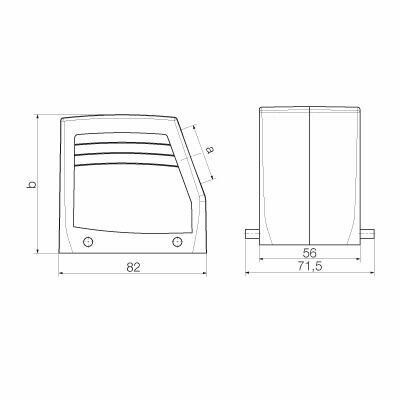

Dimensions

Entrata cavo
w. thread
Height of housing B
77 mm
Larghezza custodia C
56 mm
총 길이 하우징
82 mm

General data

Powierzchnia
Powder coating
Вид защиты
IP65
in plugged condition

Version

Adatti per ModuPlug®
No
BG
7
Colore (RAL)
RAL 7035
Cover
without cover
Entrée du câble
w. thread
Filettatura (interna)
M 32
Forme
Standard
Größe Kabeleingänge
M 32
Guarnizione
no sealing
Number of cable entry sideways
1
Número de entradas de cable en la parte superior
0
Szorítós változat
Side-locking clamp
Taille de construction
7
Tightening torque
1,2 Nm
Top part/bottom part/lid
upper part
Típus
Plug
Version boîtier
Cable entry from side
Plug housing
Version système de fermeture
Side-locking clamp on lower side

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
