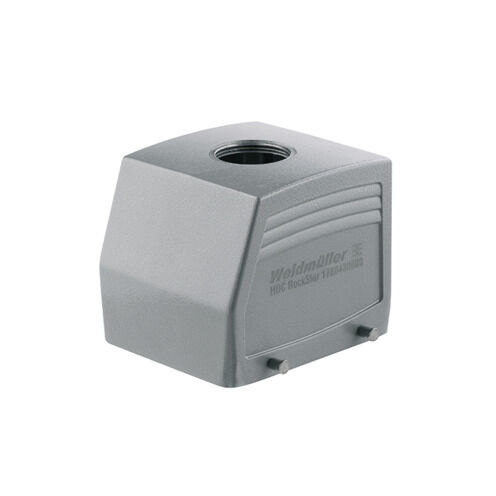

HDC 32B TOBU 1M40G

HDC enclosures, Size: 10, Protection degree: IP65 (in plugged condition), Plug housing, Cable entry from top, Side-locking clamp on lower side, Standard, Size of cable entries: M 40

Produkt ID 1221070000

Egenskaber

General ordering data

Version	HDC enclosures, Size: 10, Protection degree: IP65 (in plugged condition), Plug housing, Cable entry from top, Side-locking clamp on lower side, Standard, Size of cable entries: M 40
Order No.	1221070000
Type	HDC 32B TOBU 1M40G
GTIN (EAN)	4032248998180
Qty.	1 Styk

Dimensions and weights

Depth	94 mm
Depth (inches)	3,701 inch
Height	79 mm
Height (inches)	3,11 inch
Width	98 mm
Width (inches)	3,858 inch
Net weight	394 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6bI
REACH SVHC	Lead 7439-92-1
SCIP	d447edfa-0214-4f34-b5ba-82eae491b46a
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

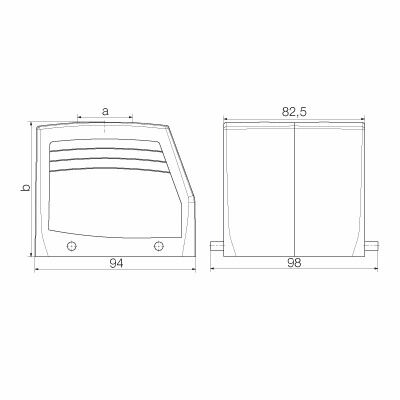

Dimensions

Cable entry	w. thread
Height of housing B	79 mm
Total length housing	94 mm
Width housing C	82,5 mm

General data

EMC housings	No
Housing main material	diecast aluminium
Material of locking element	Stainless steel, rust-proof
Protection degree	IP65 (in plugged condition)
Surface finish	Powder coating
Tightening torque	2 Nm

Version

BG	10
Cable entry	w. thread
Clamp version	Side-locking clamp
Colour (RAL)	RAL 7035
Design	Standard
Design of housing	Plug housing Cable entry from top
Design of locking system	Side-locking clamp on lower side
Internal thread	M 40
Number of cable entry on top	1
Number of cable entry sideways	0
Size	10
Size of cable entries	M 40
Suitable for ModuPlug^®	Yes
Tightening torque	2 Nm
Top part/bottom part/lid	upper part
Type	Plug

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79451)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1221070000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1221070000)
Product Change Notification	[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005) [20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006)
Technical Documentation	[1666870000_HDC_32B_TOBU_1PG29G_STP_Blatt__1.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_37870)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000437
ETIM 7.0	EC000437
ETIM 8.0	EC000437
ETIM 9.0	EC000437
ECLASS 9.0	27-44-02-02
ECLASS 9.1	27-44-02-02
ECLASS 10.0	27-44-02-02
ECLASS 11.0	27-44-02-02
ECLASS 12.0	27-44-02-02
ECLASS 13.0	27-44-02-02
ECLASS 14.0	27-44-02-02

Approvals

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202
