Egenskaber

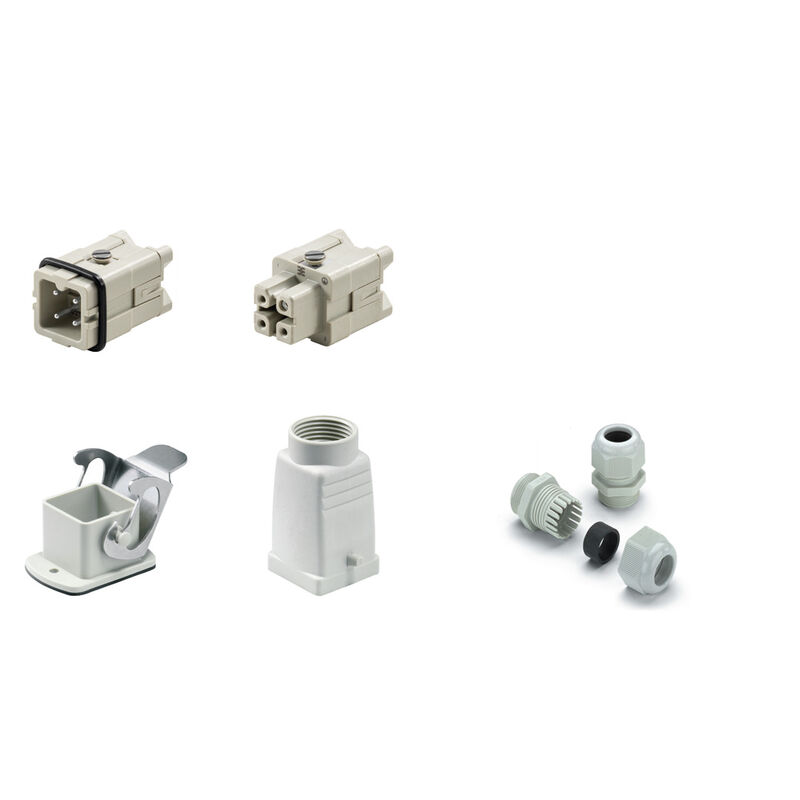

| Version | RockStar® HDC kits-Heavy-duty connectors, Kit, HA, Size: 1, Poles: 3, Screw connection, 400 V, 16 A, PG 11 |
| Order No. | 1712570000 |
| Type | HDC-KIT-HA 03.301 |
| GTIN (EAN) | 4008190947798 |
| Qty. | 1 Styk |
| Net weight | 97 g |
| Limit temperature | -30 °C ... 80 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | bfb1c983-6f18-4ba4-8907-38aad6aee076 |
| Protection degree | IP65 (in plugged condition) |
| Series | HA |
| BG | 1 |
| Colour (RAL) | RAL 7035 |
| Number of cable entry on top | 1 |
| Size | 1 |
| Size of cable entries | PG 11 |
| Type of connection | Screw connection |
| BG | 1 |
| Cable glands | PG 11 |
| Connection type PE | Screw connection |
| Material | Plastic |
| Number of poles | 3 |
| Rated current (DIN EN 61984) | 16 A |
| Rated voltage (DIN EN 61984) | 400 V |
| Series | HA |
| Size | 1 |
| BG | 1 |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Material | Plastic |
| Max. torque for main contact | 0,55 Nm |
| Min. torque for main contact | 0,5 Nm |
| Size | 1 |
| Type of connection | Screw connection |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102296) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1712570000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1712570000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-01-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Enkeltdele
-
Produkt ID:1652410000Pakningsenhed:1 Styk
HDC enclosures, Size: 1, Protection degree: IP65 (in plugged condition), Bulkhead housing, Side-locking clamp on lower side, Standard
-
Produkt ID:1652380000Pakningsenhed:1 Styk
HDC enclosures, Size: 1, Protection degree: IP65 (in plugged condition), Cable entry from top, Plug housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 11
-
Produkt ID:1498200000Pakningsenhed:1 Styk
HDC insert, Female, 400 V, 16 A, Number of poles: 3, Screw connection, Size: 1
-
Produkt ID:1498100000Pakningsenhed:1 Styk
HDC insert, Male, 400 V, 16 A, Number of poles: 3, Screw connection, Size: 1
-
Produkt ID:1568990000Pakningsenhed:50 Styk
VG K (standard plastic cable gland), Cable glands, straight, PG 11, 8 mm, OD min. 5 - OD max. 10 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6
