Egenskaber
| Version | Data use, 50 V, 10 A, Number of poles: 1, Crimp connection, Male, Required plug-in slots: |
| Order No. | 2748630000 |

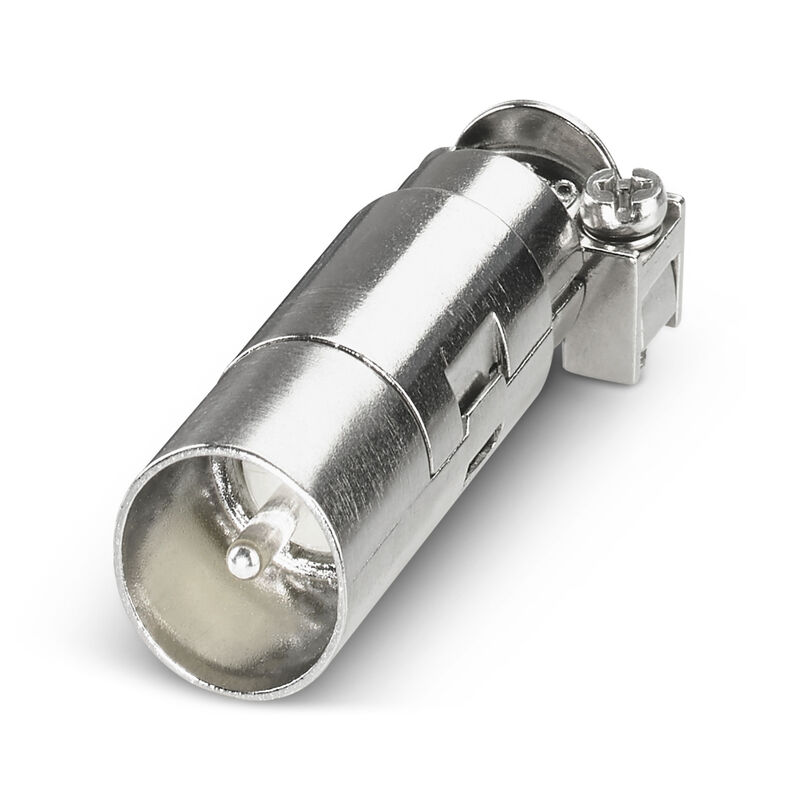

| Type | HDC MBUS HD 1 M |
| GTIN (EAN) | 4050118890693 |
| Qty. | 1 Styk |
| Depth | 46,2 mm |
| Depth (inches) | 1,819 inch |
| Height | 16,5 mm |
| Height (inches) | 0,65 inch |
| Width | 18 mm |
| Width (inches) | 0,709 inch |
| Net weight | 22,2 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | fa505316-3e43-4ad0-930c-360dfdbe182a |
| Material | Polycarbonate |
| Number of poles | 1 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 10 A |
| Rated impulse voltage (DIN EN 61984) | 0,8 kV |
| Rated voltage (DIN EN 61984) | 50 V |
| Series | ModuPlug |
| Surge voltage category | III |
| Type | Male |
| UL 94 flammability rating | V-0 |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Stripping length, rated connection | 8 mm |
| Type of connection | Crimp connection |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188728) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748630000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
Tilbehør
-
-
Produkt ID:1651620000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.37, turned, Copper alloy
-
Produkt ID:1651520000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.37, turned, Copper alloy
-
Produkt ID:1651530000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
-
Produkt ID:1651650000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Produkt ID:1651640000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Produkt ID:1651560000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Produkt ID:1651660000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Produkt ID:1651550000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Produkt ID:1601750000Pakningsenhed:100 Styk
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Produkt ID:2748560000Pakningsenhed:2 Styk
Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2
Er tilbehør til
-
Produkt ID:2748560000Pakningsenhed:2 Styk
Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2
-
Modstykker
-
Produkt ID:2748620000Pakningsenhed:1 Styk
Data use, 50 V, 10 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots:
Er et modstykke til
-
Produkt ID:2748620000Pakningsenhed:1 Styk
Data use, 50 V, 10 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots:
