HDC MHP100 PE FC
HDC MHP100 PE FC

HDC MHP100 PE FC

Power module, 1000 V, 100 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots: 1

Product ID 1429110000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 5 Verwante producten 111
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data PE connection data Version Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)

General ordering data

Változat
Power module, 1000 V, 100 A, Number of poles: 1, Crimp connection, Female, Required plug-in slots: 1
Nr zam.
1429110000
유형
HDC MHP100 PE FC
GTIN (EAN)
4050118233360
Qty.
1 ks

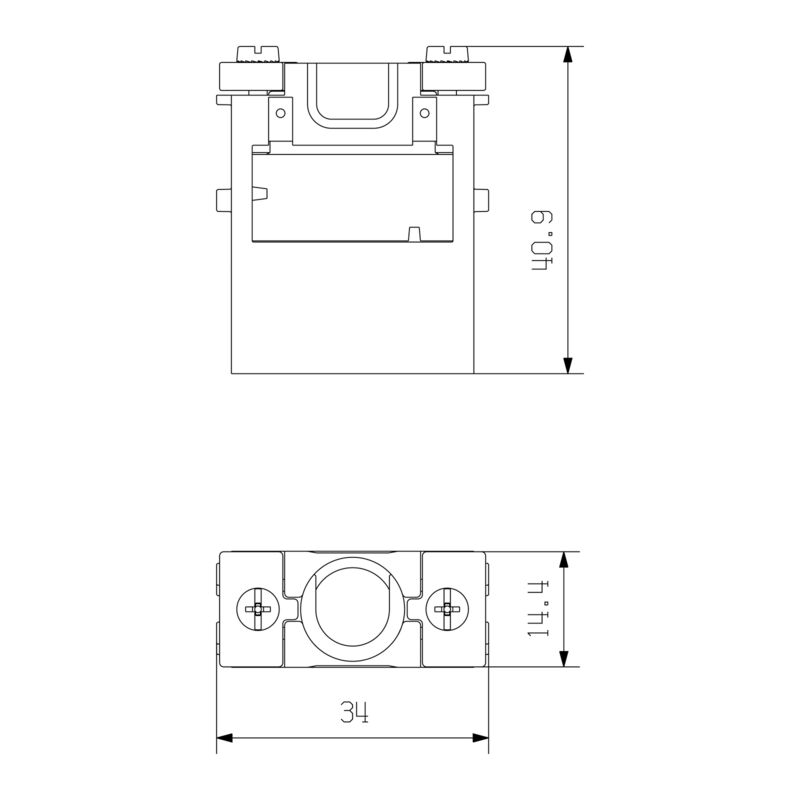

Dimensions and weights

Mélység
34 mm
Depth (inches)
1,339 inch
Wysokość
43,35 mm
Height (inches)
1,707 inch
너비
14,5 mm
Width (inches)
0,571 inch
Net weight
52,5 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polycarbonate, glass fibre reinforced
Insulation resistance
1012 Ω
Number of poles
1
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
100 A
Rated impulse voltage (DIN EN 61984)
8 kV
Rated voltage (DIN EN 61984)
1.000 V
Rated voltage according to UL/CSA
1000 V DC (IEC)
Required plug-in slots
1
Series
ModuPlug
Surge voltage category
III
Type
Female
UL 94 flammability rating
V-0

PE connection data

Connection type PE
Crimp connection

Version

Type of connection
Crimp connection

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-17
ECLASS 15.0
27-44-02-17
