Egenskaber

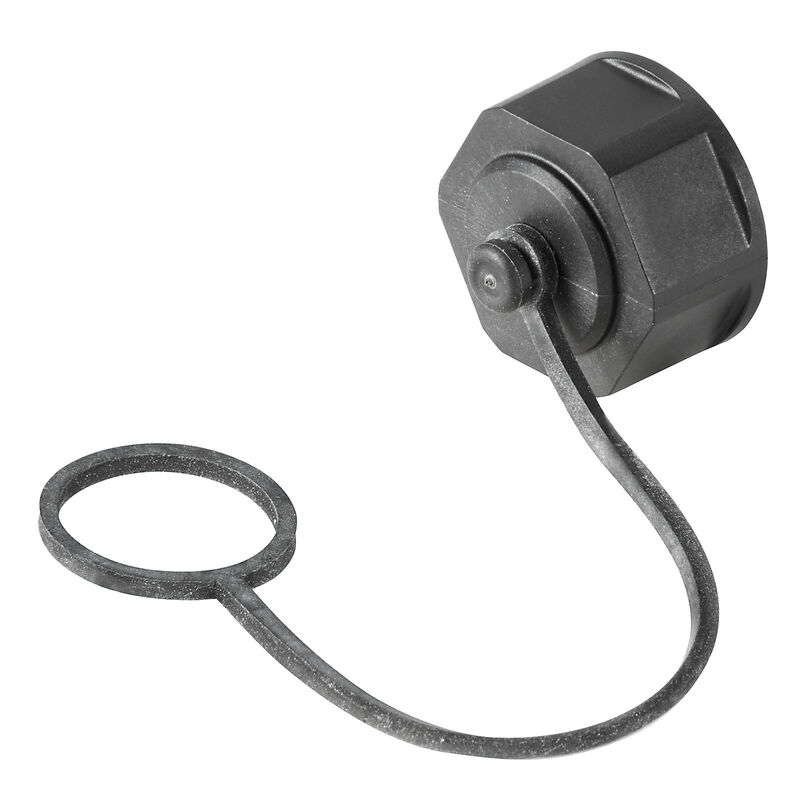

| Version | Flange-mounted housing, protective cap |
| Order No. | 1965700000 |
| Type | IE-BP-V01P |
| GTIN (EAN) | 4032248653928 |
| Qty. | 10 Styk |
| Depth | 22,7 mm |
| Depth (inches) | 0,894 inch |
| Net weight | 7,446 g |
| Operating temperature | -40 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Housing main material | PA UL 94 V0 |
| Protection degree | IP67 |
| Type of mounting | Indoors only |
| UL 94 flammability rating | V-0 |
| Approval/Certificate/Document of Conformity |
[UL Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58422)
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002314 |
| ETIM 7.0 | EC002314 |
| ETIM 8.0 | EC002314 |
| ETIM 9.0 | EC002314 |
| ECLASS 9.0 | 27-44-02-08 |
| ECLASS 9.1 | 27-44-02-08 |
| ECLASS 10.0 | 27-44-02-08 |
| ECLASS 11.0 | 27-44-02-08 |
| ECLASS 12.0 | 27-44-02-08 |
| ECLASS 13.0 | 27-44-02-08 |
| ECLASS 14.0 | 27-44-02-08 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1964440000Pakningsenhed:10 Styk
Flange FO, IP67, Version 1, LC Duplex coupling, Multimode
-
Produkt ID:1963430000Pakningsenhed:10 Styk
Flange FO, IP67, Version 1, LC Duplex coupling, Singlemode
-
Produkt ID:1963540000Pakningsenhed:10 Styk
Empty enclosure, Flange-mounted housing, Variant 1 to IEC 61076-3-106, IP67
-
Produkt ID:1016960000Pakningsenhed:10 Styk
Empty enclosure, Flange-mounted housing, IP67
-
Produkt ID:1963480000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 1 metal, IDC, EIA/TIA 586 A, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1963470000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 1 metal, RJ45 / RJ45 coupling, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
-
-
Produkt ID:1963440000Pakningsenhed:10 Styk
Flange FO, IP67, Version 1, coupling from SCRJ on 2*SC, Singlemode
-
Produkt ID:1964450000Pakningsenhed:10 Styk
Flange FO, IP67, Version 1, coupling from SCRJ on 2*SC, Multimode
-
Produkt ID:1012380000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 1 metal, IDC, EIA/TIA 586 A, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1012370000Pakningsenhed:10 Styk
Flange RJ45, IP67, Variant 1 plastic, RJ45 / RJ45 coupling, Cat.6A / Class EA (ISO/IEC 11801 2010)
