Egenskaber

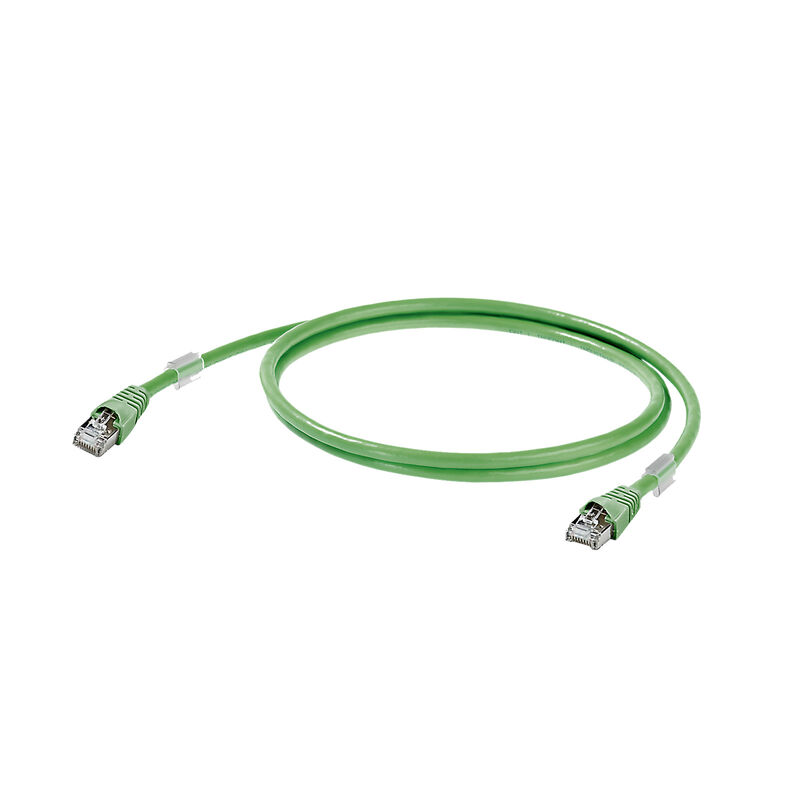

| Version | System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PVC, 2 m |
| Order No. | 1166020020 |
| Type | IE-C5ES8VG0020M40M40-G |
| GTIN (EAN) | 4032248956838 |
| Qty. | 1 Styk |
| Length | 2 m |
| Length (inches) | 78,74 inch |
| Net weight | 94 g |
| Operating temperature | -40 °C...75 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 2879 (80°C/30V) |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Connector standard | IEC 60603-7-51 |
| Connector standard | IEC 60603-7-51 |
| Generic communication cable facilities |
ISO / IEC 11801:2002
EN 50173-1:2007 |
| Standard, assembly | UL-Style 2879 (80°C/30V) |
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Diameter of wire pair | 2,4 mm |
| Insulation | PE |
| Insulation cross-section | 0,98 mm |
| Material sheath | PVC |
| Number of wires | 8 |
| Overlap of shielding braid | 70 % |
| Sheath diameter, max. | 5,8 mm |
| Sheath diameter, min. | 5,4 mm |
| Sheathing colour | green (RAL 6018) |
| Sheathing material thickness | 0,5 mm |
| Shielding | SF/UTP |
| Shielding braid thickness | 0,1 mm |
| Standard designations |
LI02YSCY 4X2X0.15 PIMF GN
SF/UTP |
| Strands | 7 |
| Wire core insulation thickness | 0,25 mm |
| Wire material | Stranded tin-plated copper wire |
| Wire pair shielding |
Aluminium foil
Plastic foil |
| Capacity at 1 kHz | 48 nF/km |
| Category | Cat.5 (ISO/IEC 11801) |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Delay skew | 25 ns/100m |
| Loop resistance | 150 Ω/km |
| Operating voltage (UL rating) | 30 V |
| Operating voltage, UL | 30 V |
| Resistance differential | 3 % |
| Shield attenuation | 55 dB at 30–600 MHz |
| Signal propagation time | 5,13 ns/m |
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
| Transfer impedance |
15 mΩ/m at 1 MHz
20 mΩ/m at 10 MHz 30 mΩ/m at 30 MHz |
| Transmission rate |
10/100 MBit/s
1000 MBit/s |
| Abrasion resistance | good |
| Halogen | Yes |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug left | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_181104) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1166020020) |
| Product Change Notification |
[PCN-PB47-20180213-00-A_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_52811)
[PCN-PB47-20180213-00-A_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_52812) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| Approvals |   |
| ROHS | Conform |
