IE-C6FP8LD0012M40V40-D
IE-C6FP8LD0012M40V40-D
Wiring
IE-C6FP8LD0012M40V40-D
Dimensioned drawing
IE-C6FP8LD0012M40V40-D
Dimensioned drawing

IE-C6FP8LD0012M40V40-D

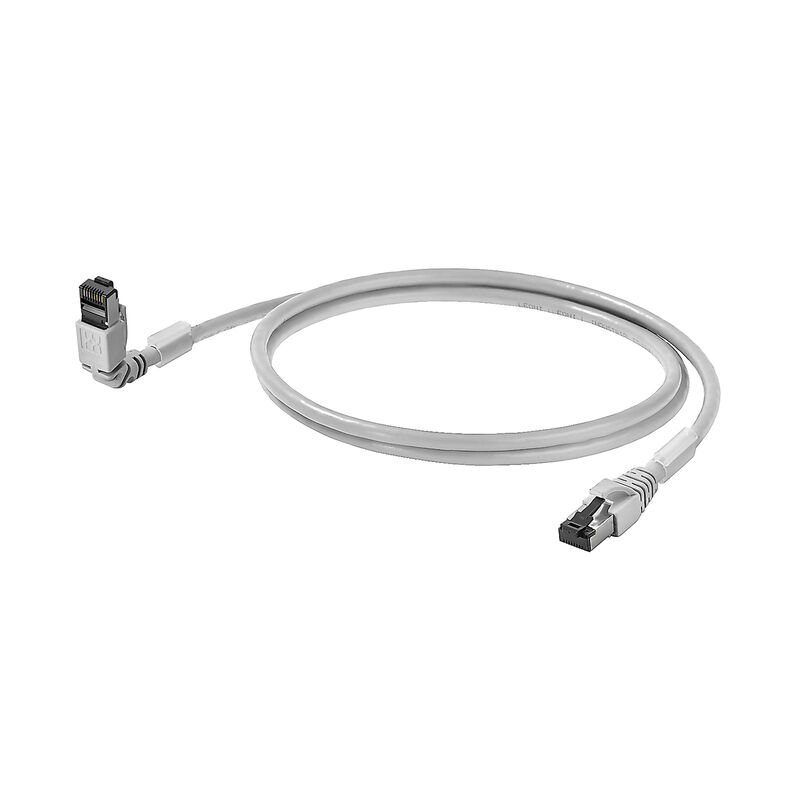

Patch cable, RJ45 IP 20, RJ45 IP 20, Angled 90°, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.2 m

Ürün No. 1248280012
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Versione
Patch cable, RJ45 IP 20, RJ45 IP 20, Angled 90°, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.2 m
Order No.
1248280012
유형
IE-C6FP8LD0012M40V40-D
GTIN (EAN)
4050118044713
수량
1 adet

Dimensions and weights

Hossz
1,2 m
Length (inches)
47,244 inch
Net weight
63 g

Temperatures

보관 온도
-20 °C...60 °C
작동 온도
-20 °C...60 °C
설치 온도
0 °C...50 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Barevná posloupnost vodičů – párů vodičů
white - blue, white - orange, white - green, white - brown
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,04 mm
Kompletní stínění
Shielding braid made from copper wiring
Material sheath
LSZH
Number of wires
8
Překrývání opletu stínění
60 %
Sheath diameter, max.
5,9 mm
Sheath diameter, min.
5,5 mm
Sheathing colour
grey
Shielding
S/FTP
Strands
7
Wire pair shielding
Aluminium foil

Electrical properties of cable

Betriebsspannung
50 V DC
Capacity at 1 kHz
46 nF/km
Delay skew
2,5 ns/100m
Impédance caractéristique
100 ± 15 Ω at 1–100 MHz
Kategorie
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Kopplungsdämpfung bis 1000 MHz
80 dB
Resistance differential
5 %
Resistencia al acoplamiento a 10 MHz / m
5 mΩ
Separating class according to EN 50174-2
d
Tension de fonctionnement (classification UL)
30 V AC / 42.4 V DC
Tensión de prueba: conductor-conductor-apantallado
2.5 kV / DC for 2 sec
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Colour
grey
Halogenki
halogen-free, according to IEC 60754-2
Promień gięcia, min., jednorazowy
4 x cable diameter
Огнестойкость
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Plug right
RJ45, IP20, male contact, angled 90°, plug, Plastic, shielded
플러그 좌측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Штекер левый
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, angled 90°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
