IE-C6FP8LD0012M40W40-D

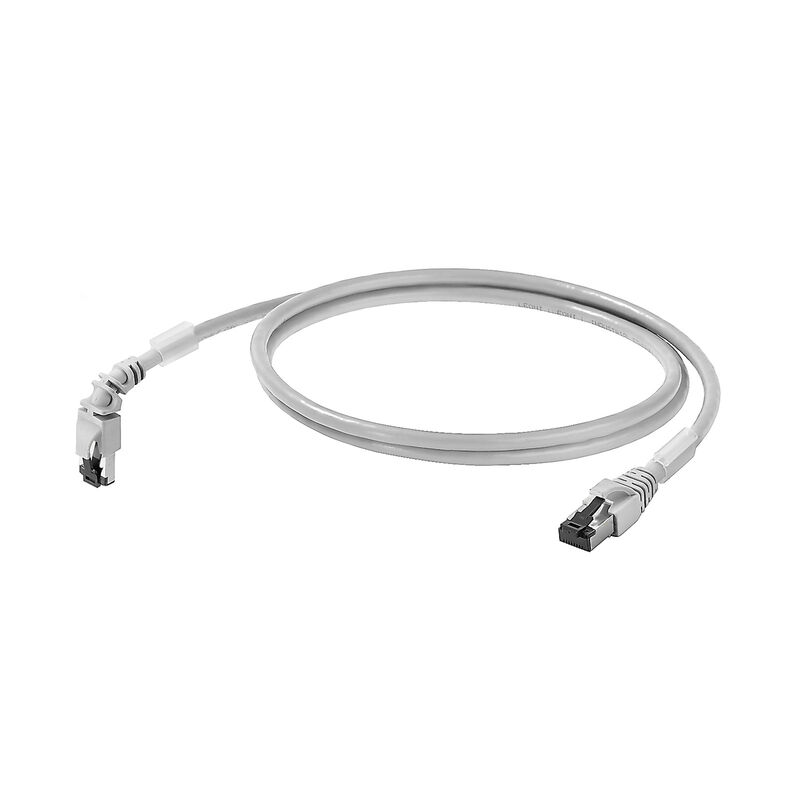

Patch cable, RJ45 IP 20, Angled 270°, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.2 m

Produkt ID 1233160012
Download datablad Engineering Support Product Downloads
Tilbehør 2 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319218/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Ausfuehrung
Patch cable, RJ45 IP 20, Angled 270°, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 1.2 m
Order No.
1233160012
Tipo
IE-C6FP8LD0012M40W40-D
GTIN (EAN)
4050118016741
CPZ
1 Styk

Dimensions and weights

Länge
1,2 m
Length (inches)
47,244 inch
Net weight
63 g

Temperatures

Temperatura de almacenamiento
-20 °C...60 °C
Temperatura d'esercizio
-20 °C...60 °C
Telepítési hőmérséklet
0 °C...50 °C

Environmental Product Compliance

RoHS 対応状況
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,04 mm
Material sheath
LSZH
Number of wires
8
Overlap of shielding braid
60 %
Sheath diameter, max.
5,9 mm
Sheath diameter, min.
5,5 mm
Sheathing colour
grey
Shielding
S/FTP
Strands
7
Wire pair shielding
Aluminium foil

Electrical properties of cable

Betriebsspannung (UL Rating)
30 V AC / 42.4 V DC
Capacity at 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Charakteristische Impedanz
100 ± 15 Ω at 1–100 MHz
Coupling attenuation up to 1000 MHz
80 dB
Coupling resistance at 10 MHz / m
5 mΩ
Operating voltage
50 V DC
Resistance differential
5 %
Separating class according to EN 50174-2
d
Signallaufzeitunterschied
2,5 ns/100m
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
odporność na rozprzestrzenianie się płomienia
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)
컬러 코드
grey

Plug

プラグ右
RJ45, IP20, male contact, angled 270°, plug, Plastic, shielded
플러그 좌측
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Wtyk po lewej
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

プラグ右
RJ45, IP20, male contact, angled 270°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
