Egenskaber

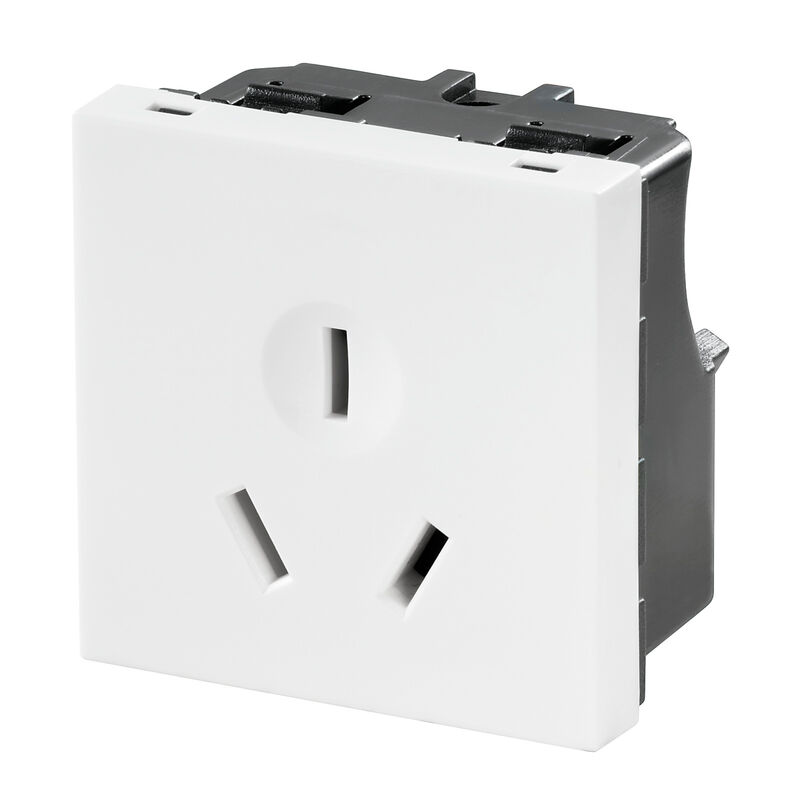

| Version | FrontCom, Insert Power large, Type I, Socket connector, CN |
| Order No. | 1450790000 |
| Type | IE-FCI-PWB-CN |
| GTIN (EAN) | 4050118255386 |
| Qty. | 1 Styk |
| Net weight | 33 g |
| Storage temperature | -10 °C...70 °C |
| Operating temperature | -5 °C...40 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Connector face | Type I |
| Fire load | 630 kJ |
| Insert type | Insert Power large |
| Protection degree | IP20 |
| Conductor connection cross-section, extremely flexible with wire end ferrule |
|
| Conductor connection cross-section, extremely flexible with wire end ferrule | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, extremely flexible without wire end ferrule |
|
| Conductor connection cross-section, extremely flexible without wire end ferrule | 1.5 ... 4 mm² |
| Conductor connection cross-section, flexible with wire end ferrule |
|
| Conductor connection cross-section, flexible with wire end ferrule | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, flexible without wire end ferrule | 1.5 ... 4 mm² |
| Conductor connection cross-section, flexible without wire end ferrule |
|
| Conductor connection cross-section, rigid |
|
| Conductor connection cross-section, rigid | 1.5 ... 4 mm² |
| Stripping length | 9 mm |
| Type of connection | Screw connection |
| Housing main material | Polycarbonate PC |
| Rated current | 10 A |
| Rated voltage (AC) | 250 V |
| Certificate No. (DNV) | TAA000022B |
| Approval/Certificate/Document of Conformity | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97721) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1450790000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1450790000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Socket Insert Overview EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_87399) [Socket Insert Overview DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_87400) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90844) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-18-90-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ECLASS 14.0 | 27-18-28-92 |
| Approvals |  |
| ROHS | Conform |
