Egenskaber

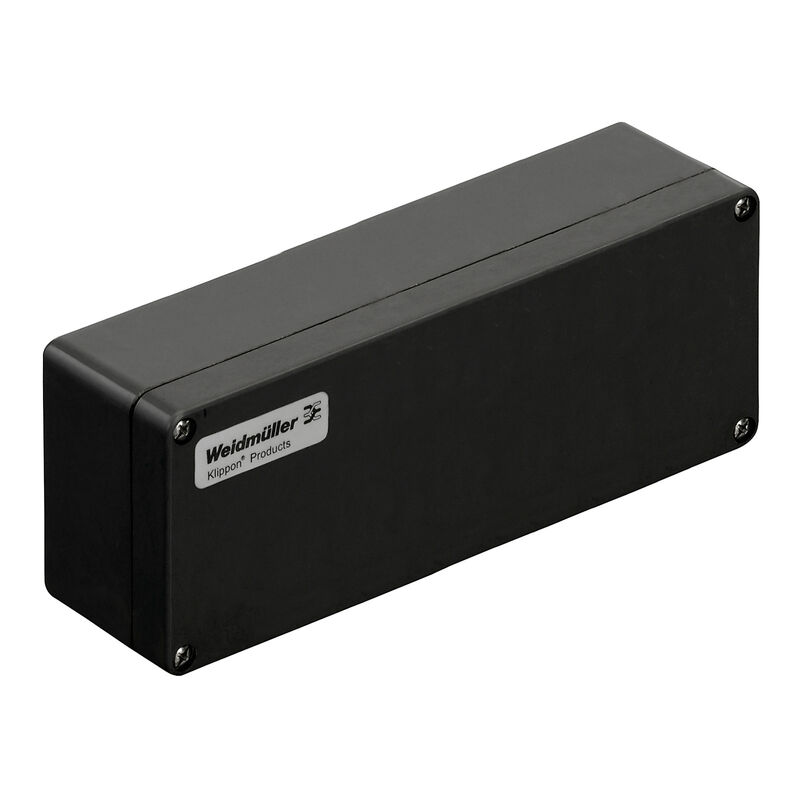

| Version | Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 230 mm, Depth: 56 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black |
| Order No. | 1306040000 |
| Type | KLIPPON POK 082306 EX |
| GTIN (EAN) | 4050118108453 |
| Qty. | 1 Styk |
| Depth | 56 mm |
| Depth (inches) | 2,205 inch |
| Height | 75 mm |
| Height (inches) | 2,953 inch |
| Height of lowest version | 56 mm |
| Width | 230 mm |
| Width (inches) | 9,055 inch |
| Mounting dimension - height | 45 mm |
| Mounting dimension - width | 218 mm |
| Net weight | 628 g |
| Operating temperature | -55 °C...100 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | afb385d0-c52b-4449-8502-203596817ab0 |
| M12 | 1 |
| M16 | 1 |
| M20 | 1 |
| M12 | 1 |
| M16 | 1 |
| M20 | 1 |
| M12 | 16 |
| M16 | 6 |
| M20 | 6 |
| M25 | 4 |
| Approval conditions |
ATEX
DNV INMETRO IECEX LR RMRS UL AEx Class Div. UL AEx Class Zone cULus KC CCC |
| Attestation of Conformatiy No. (AoC) | DE PS2600 160308 001ISS03 |
| Certificate No. (ATEX) | IBEXU13ATEX1004X |
| Certificate no. (cULus) | E256877 |
| Certificate No. (DNV) | TAE00002R2 |
| Certificate No. (IECEX) | IECEXIBE13.0003U |
| Certificate no. empty enclosure (AEx) | E223792 |
| Certificate no. empty enclosure (ATEX) | IBExU13ATEX1003 U |
| Certificate no. empty enclosure (IECEx) | IECEx IBE 13.0003U |
| Certificate no. empty enclosure (INMETRO) | LMP 23.0528U |
| Certificate no. Terminal Box (AEx) | E223792 |
| Certificate no. Terminal Box (ATEX) | IBExU13ATEX1004 X |
| Certificate no. Terminal Box (IECEx) | IECEX IBE 13.0004X |
| Certificate no. Terminal Box (INMETRO) | LMP 21.0021X |
| Certificate no. Terminal Box (KOSHA) | 16-AV4BO-0246X |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2600 160412 001ISS02 |
| Access opening: height | 66,42 mm |
| Access opening: width | 221,42 mm |
| Areas of use |
Explosive risk zone
Harbour facilities Machine construction Process industry Transportation |
| Enclosure attachment |
Installation through the housing rear wall
Fixing lugs |
| Flange plate | No |
| Impact resistance | 7 J ATEX version |
| Lid | Yes |
| Lid attachment | Slotted/Phillips screws |
| Material | Glass fibre-reinforced polyester |
| Material thickness of cover | 4,2 mm |
| Material thickness of enclosure | 4,29 mm |
| Number of lid screws | 6 |
| Operating temperature, max. | 100 °C |
| Operating temperature, min. | -55 °C |
| Protection class (UL) |
Type 4
Type 4X |
| Protection degree | IP66 |
| Seal material | Silicone |
| Standards |
DIN EN 62208 - Empty enclosure standard
IEC 60079-0 IEC 60079-7 IEC 60079-31 |
| Surface finish |
untreated
polished |
| Torque for lid screws | 2,5 Nm |
| UL 94 flammability rating | V-0 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x33 |
| WDU 4 / ZDU 4 | 1x28 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | * |
| WDU 4 / ZDU 4 | * |
| Approval/Certificate/Document of Conformity |
[CCC 2020322303002628 POK Assembly Enclosure](https://mdcop.weidmueller.com/mediadelivery/asset/900_177323)
[UKCA TÜV 22 UKEX 7093 X](https://mdcop.weidmueller.com/mediadelivery/asset/900_263770) [IBEXU13ATEX1003U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157735) [IBEXU13ATEX1004X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157736) [IECEXIBE13.0003U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157737) [INMETRO CERTIFICADO LMP 21.0021X KLIPPON POK](https://mdcop.weidmueller.com/mediadelivery/asset/900_217521) [EU Declaration of Conformity - Klippon POK Empty Enclosures Ex - DoC DE PS2600 160412 001ISS02](https://mdcop.weidmueller.com/mediadelivery/asset/900_40372) [UKCA Declaration of Conformity - Klippon POK Empty Enclosures Ex - UKCA DE PS2600 220623 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319948) [UKCA TÜV 22 UKEX 7092 U](https://mdcop.weidmueller.com/mediadelivery/asset/900_263771) [INMETRO CERTIFICADO LMP 23.0528U KLIPPON® POK...Ex](https://mdcop.weidmueller.com/mediadelivery/asset/900_302415) [Attestation of Conformity - Klippon POK Empty Enclosures - AoC DE PS2600 160308 001ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_40363) [UKCA Attestation of Conformity - Klippon POK Empty Enclosures - UKCA DE PS2600 220623 000ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319947) [14_20001](https://mdcop.weidmueller.com/mediadelivery/asset/900_157728) [TAE00002R2](https://mdcop.weidmueller.com/mediadelivery/asset/900_157729) [IECEXIBE13.0004X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157731) [16-AV4BO-246X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157733) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54083) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1306040000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1306040000) |
| Tender specification |
[Klippon POK 082306 Ex_1306040000_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_56616)
[Klippon POK 082306 Ex_1306040000_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_56675) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB OVERV. PROCESS WD DE](http://download.weidmueller.com/asset/download/file/40063)
[MB KLIPPON ENCL.TECN EN](http://download.weidmueller.com/asset/download/file/39472) [MB PROCESS EN](http://download.weidmueller.com/asset/download/file/38262) [FL KLIPPON POK EN](http://download.weidmueller.com/asset/download/file/38243) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| Approvals |          |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E256877 |
