KSW 2.5 EL WS 50M
KSW 2.5 EL WS 50M

KSW 2.5 EL WS 50M

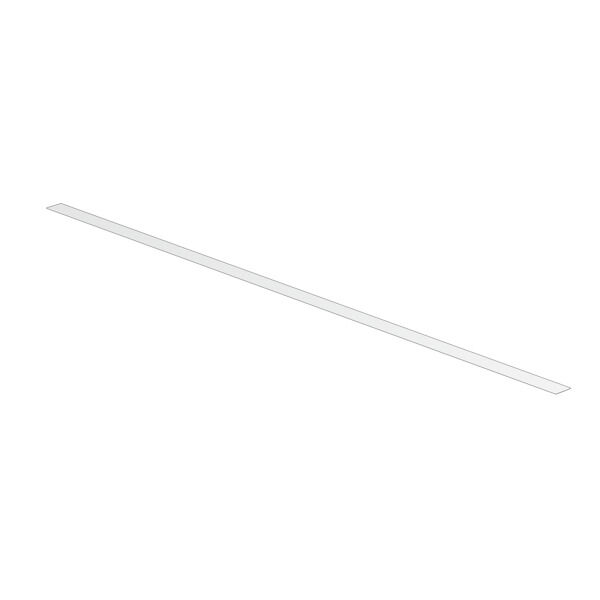

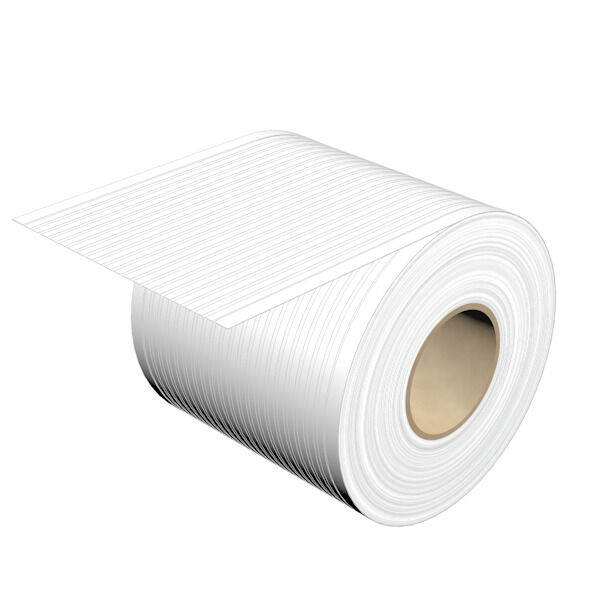

KSW, Terminal marker, 2.5 x , Pitch in mm (P): 2.50 Weidmueller, white

Produkt ID 1812660000
Download datablad Product Downloads Engineering Support
Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
KSW, Terminal marker, 2.5 x , Pitch in mm (P): 2.50 Weidmueller, white
Référence
1812660000
Tipo
KSW 2.5 EL WS 50M
GTIN (EAN)
4032248296064
Qty.
50

Dimensions and weights

Hauteur
2,5 mm
Height (inches)
0,098 inch
Hossz
50 000 mm
Length (inches)
1 968,5 inch
Net weight
15,827 g

Temperatures

Температурный диапазон вставки
150 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adesivo
Acrylate
Aplikacja / producent
Weidmueller
Orientamento della stampa
horizontal and vertical
Printed characters
without
Qtà/foglio
20
Tipo di stampa
neutral
Zakres temperatury stosowania
150 °C
Выходные данные
Neutral
기본 재질
Polyester, PVC-free
길이
50 000 mm
작동 온도 범위, 최대
150 °C
컬러 코드
white
할로겐
No

Device markers

Alogeni
No

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
