Egenskaber

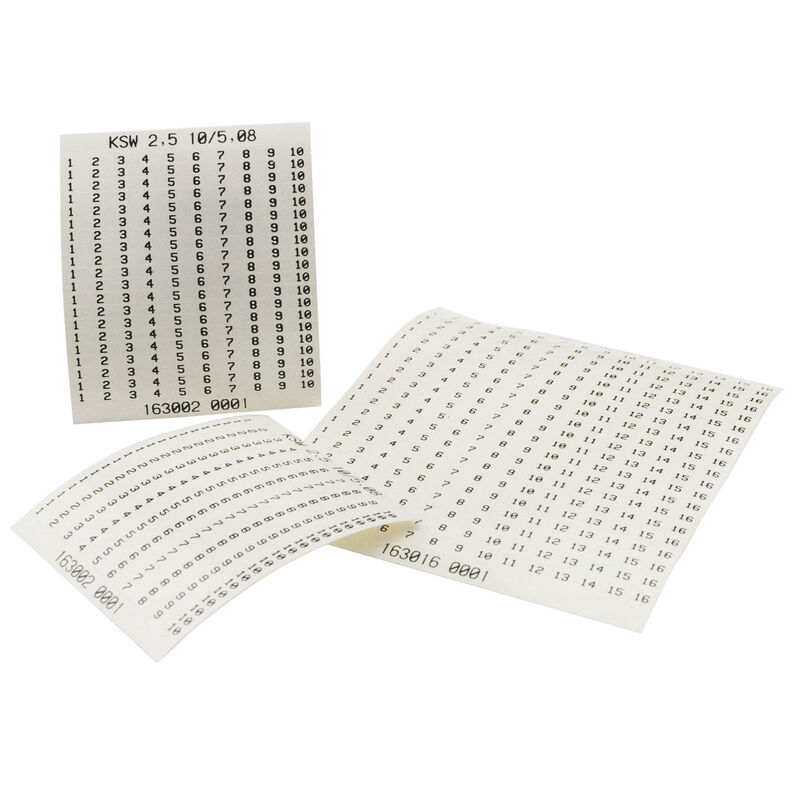

| Version | KSW, Terminal marker, 2.5 x 100 mm, Pitch in mm (P): 2.50 Weidmueller, white |
| Order No. | 1629920000 |
| Type | KSW 2,5 < 100MM SONDDR. |
| GTIN (EAN) | 4008190202828 |
| Qty. | 1 Styk |
| Height | 2,5 mm |
| Height (inches) | 0,098 inch |
| Width | 100 mm |
| Width (inches) | 3,937 inch |
| Net weight | 0,047 g |
| Operating temperature range | 150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Acrylate |
| Application/manufacturer | Weidmueller |
| Colour | white |
| Colour of printing | black |
| compatible printer | [THM MMP](~/p/2430920000) |
| Material | Polyester, PVC-free |
| Number per sheet | 20 |
| Operating temperature range | 150 °C |
| Operating temperature range, max. | 150 °C |
| Orientation of print | horizontal |
| Printed characters | To customer specification |
| Printing | Custom printing |
| Printing method | Thermal transfer |
| Version | Self-adhesive |
| Width | 100 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1629920000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
