MBGE ADPT, ET200M, 40 POLE

MBGE ADPT, ET200M, 40 POLE

Download data sheet Related products

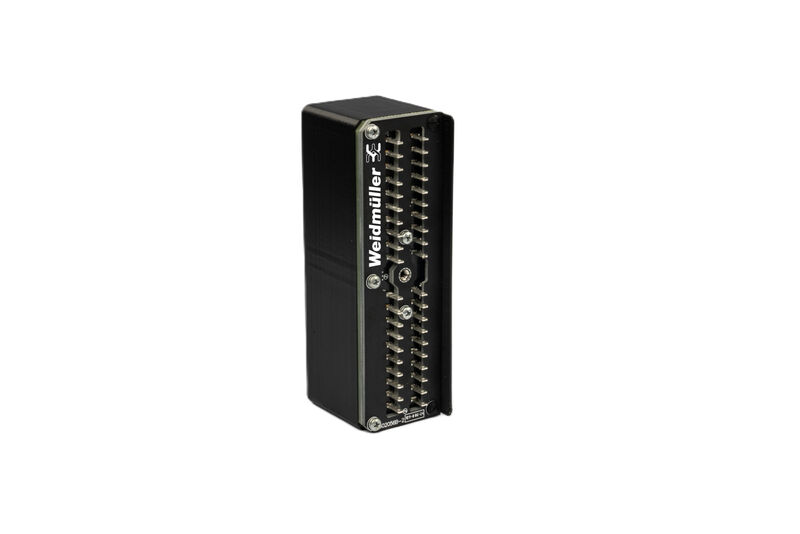

MBGE ADPT, ET200M, 40 POLE

Item No. 8000125284

Properties

General ordering data

Order No.	8000125284
Type	MBGE ADPT, ET200M, 40 POLE
GTIN (EAN)	4099986881587
Qty.	1 items

Dimensions and weights

Depth	61.3 mm
Depth (inches)	2.413 inch
Height	127 mm
Height (inches)	5 inch
Width	40.6 mm
Width (inches)	1.598 inch
Net weight	122.5 g

Storage temperature	-20...70 °C
Operating temperature	-20...50 °C

Operating temperature UL, max.	50 °C
Operating temperature UL, min.	-20 °C
Storage temperature UL, max.	70 °C
Storage temperature UL, min.	-20 °C
Rated current I_max	40 A
Rated voltage U_N	250 V

Connection data

Connection (field side)	Siemens ET200M / S7-300 40-pole connector
Connection to PLC	New PLC terminal block or hardwired

Operating voltage	250 V
Max. current per channel	5.5 A
Total operating current	40 A

Insulation coordination (EN50178)

Surge voltage category	II
Pollution severity level	2
Pulse voltage test (1,2/50μs)	2.5 kV
Insulation test voltage AC	1.35 kV

Technical Documentation

[SIEMENS ET200M 40 POLE ADAPTER](https://mdcop.weidmueller.com/mediadelivery/asset/900_317587)

Classifications

ETIM 6.0	EC002584
ETIM 7.0	EC002584
ETIM 8.0	EC002584
ETIM 9.0	EC002584
ETIM 10.0	EC002584
ECLASS 9.0	27-33-02-92
ECLASS 9.1	27-24-22-92
ECLASS 10.0	27-33-02-92
ECLASS 11.0	27-33-02-92
ECLASS 12.0	27-33-02-92
ECLASS 13.0	27-33-02-92
ECLASS 14.0	27-33-02-92
ECLASS 15.0	27-33-02-92
