Egenskaber

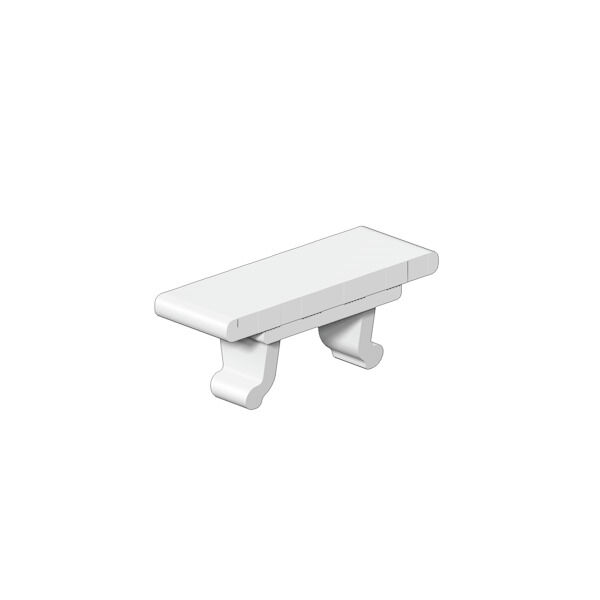

| Version | Terminal marker, 10 x 3.5 mm, Pitch in mm (P): 3.50 white |
| Order No. | 2885970000 |
| Type | MF 10/3.5 MM WS |
| GTIN (EAN) | 4064675854579 |

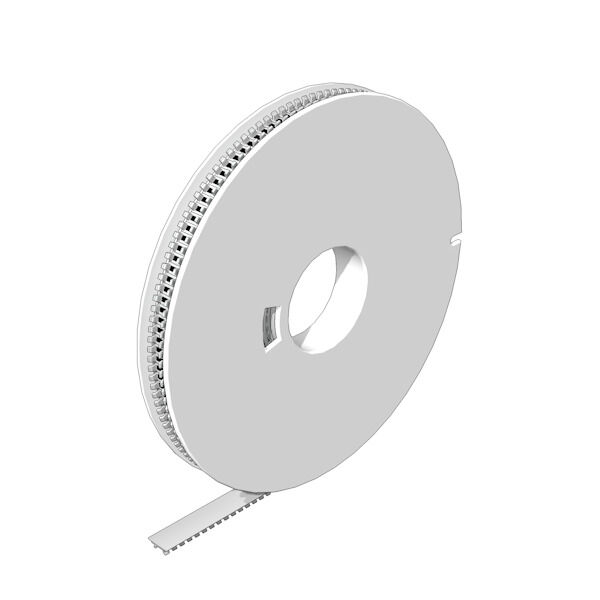

| Qty. | 850 Styk |
| Depth | 0,7 mm |
| Depth (inches) | 0,028 inch |
| Height | 10 mm |
| Height (inches) | 0,394 inch |
| Width | 3,5 mm |
| Width (inches) | 0,138 inch |
| Net weight | 0,105 g |
| Operating temperature range | -50...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Operating temperature range | -50...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-2 |
| Version | halogen-free |
| Width | 3,5 mm |
| Pitch in mm (P) | 3,5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_274761) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2885970000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
Er tilbehør til
Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Retaining clips
Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRI miniature industrial relay modules (16mm width)Retaining clips
