PTSI 4/LD 36V AC/DC

Field Power® plug-in connector, Fuse, IP20, Polyamide, PUSH IN,Number of poles : 5

Produkt ID 1252210000

General ordering data

Version	Field Power® plug-in connector, Fuse, IP20, Polyamide, PUSH IN,Number of poles : 5
Order No.	1252210000
Type	PTSI 4/LD 36V AC/DC
GTIN (EAN)	4050118044331
Qty.	1 Styk

Dimensions and weights

Depth	55 mm
Depth (inches)	2,165 inch
Height	85 mm
Height (inches)	3,346 inch
Width	57 mm
Width (inches)	2,244 inch
Net weight	92 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7cI
REACH SVHC	No SVHC above 0.1 wt%

Clamping capacity, PUSH IN connection

Blade size, PUSH IN connection	3.0 x 0.5 mm
Clamping range, max. PUSH IN connection	4 mm²
Clamping range, min. PUSH IN connection	0,5 mm²
Cross-section for connected wire PUSH IN connection, solid, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, PUSH IN connection, solid, max.	4 mm²
Finely-stranded flexible, max. PUSH IN connection	4 mm²
Finely-stranded flexible, min. PUSH IN connection	0,5 mm²
Stripping length, PUSH IN connection	12 mm

Clamping capacity

Connection data - plug-in connector

Wire connection method:

PUSH IN
Blade size of operating tool:

3.0 x 0.5 mm
Stripping length:

12 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

4 mm²
Conductor connection cross-section, solid, min.:

0,5 mm²
Conductor connection cross-section, stranded, max.:

4 mm²
Conductor connection cross-section, stranded, min.:

0,5 mm²
Conductor connection cross-section, finely stranded, max.:

4 mm²
Conductor connection cross-section, finely stranded, min.:

0,5 mm²
Conductor connection cross-section, finest stranded, max.:

4 mm²
Conductor connection cross-section, finest stranded, min.:

0,5 mm²
Conductor connection cross-section with wire end ferrule:
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  Twin wire-end ferrules
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²

General data

Insulating material	Polyamide
Silicone	No
Colour	black
Protection degree	IP20
UL 94 flammability rating	V-0
Type of mounting	Plugged
Function	Fuse
Can be coded	Yes Coded on PE
Test point	2 mm
Number of poles	5
Number of connections / pole	1
Wire connection method	PUSH IN
Cartridge fuse	6.3 x 32 mm (1/4 x 1 1/4")
Conductor outlet direction	90°

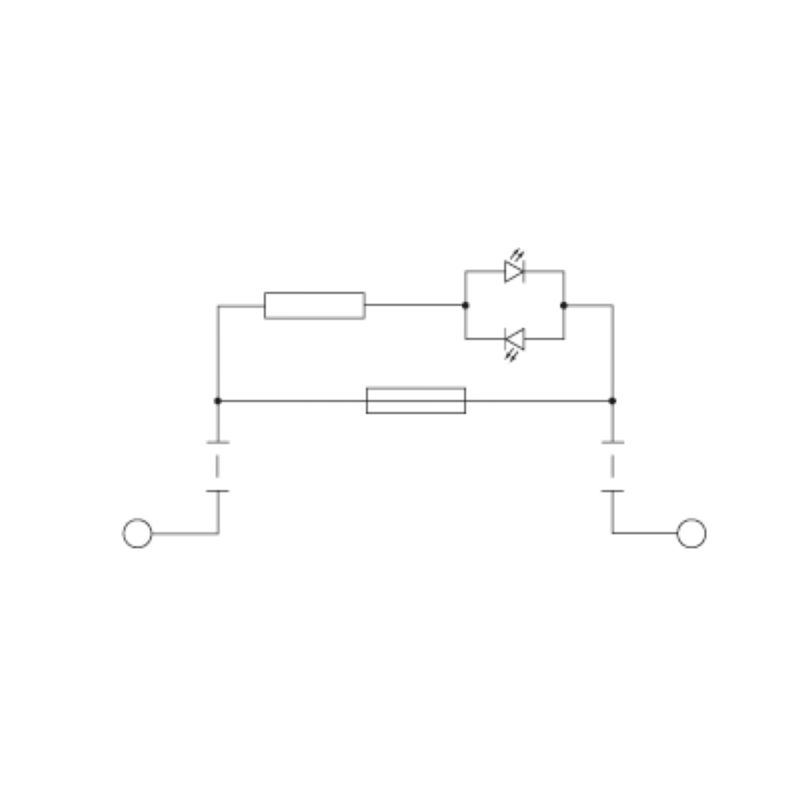

Failure indicator	Red LED

Rated data acc. to IEC

Rated data acc. to IEC for fuse plug

Voltage type:

AC, DC
Standard:

IEC 61984, IEC 60947-7-3
Rated voltage:

36 V
Rated impulse withstand voltage:

6 kV
Rated current:

12 A

Rated data acc. to UL

Rated data acc. to UL for fuse plug

Rated voltage:

600 V
Note:

for use with UL-listed TC-ER cables
Conductor connection cross-section, AWG, min.:

AWG 16
Conductor connection cross-section, AWG, max.:

AWG 12
Standard:

UL 1059
Rated current:

20 A

Downloads

Approval/Certificate/Document of Conformity	UL Certificate FieldPower® terminals and plug-in connectors Manufacturer's Declaration FieldPower® plug-in connectors and HQ adapters
Engineering Data	CAD data -- STEP
CADENAS eCATALOG	CAX data
User Documentation	Datasheet FieldPower® Box Fuse
Catalogues	Catalogues in PDF-format

Classifications

ETIM 6.0	EC002943
ETIM 7.0	EC002943
ETIM 8.0	EC002943
ETIM 9.0	EC002943
ECLASS 9.0	27-44-02-92
ECLASS 9.1	27-44-03-90
ECLASS 10.0	27-44-02-92
ECLASS 11.0	27-44-02-92
ECLASS 12.0	27-44-02-92
ECLASS 13.0	27-44-02-92
ECLASS 14.0	27-44-02-92

Approvals

Approvals
ROHS	Conform
UL File Number Search	UL Website
Certificate No. (cURus)	E60693
