Egenskaber

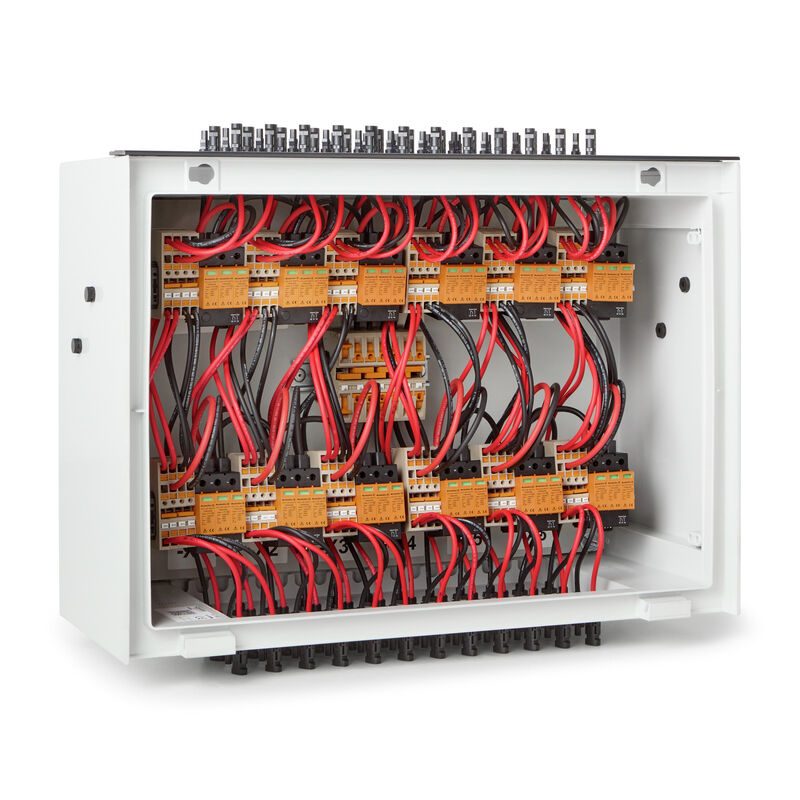

| Version | Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, Surge protection I / II, WM4C, for wall mounting, Landscape, String Inverter, 12 MPP's |
| Order No. | 8000117002 |
| Type | PV 124SXFXCXXV1O1TXPX15LWW |
| GTIN (EAN) | 4099986756199 |
| Qty. | 1 Styk |
| Depth | 300 mm |
| Depth (inches) | 11,811 inch |
| Height | 536 mm |
| Height (inches) | 21,102 inch |
| Width | 747 mm |
| Width (inches) | 29,409 inch |
| Net weight | 29.000 g |
| Ambient temperature | -20ºC to +45ºC |
| Operating temperature | -20ºC to +45ºC |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Earthing | Directly at the VPU |
| Rated voltage | 1.500 V |
| Surge protection DC side | 1500 V type I+II without remote contact |
| Amount of maximum power points (MPP) | 12 |
| Connection DC input cable (+) | WM4C plug-in connector |
| Connection DC input cable (-) | WM4C plug-in connector |
| Connection type, DC input cable | WM4C plug-in connector |
| Functional earth connector |
|
| Fuse | Neither fuse cartridge nor holder |
| Fuse type | Neither fuse cartridge nor holder |
| Number of conduit inlets | 1 |
| Number of DC inputs | 24 |
| Number of inputs | 24 |
| Connection type, DC output cable | WM4C plug-in connector |
| DC output cable connection | WM4C plug-in connector |
| Number of DC outputs | 24 |
| Monitoring function | Non monitored |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards |
IEC 61439-2 ed 3.0
EN 61439-2:2020 |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity Combiner Boxes non monitored](https://mdcop.weidmueller.com/mediadelivery/asset/900_216553) |
| Engineering Data | [Thermal Report PV 124SXFXCXXV1O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318652) |
| Technical Documentation |
[Electrical Drawing PV 124SXFXCXXV1O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318640)
[Mechanical Drawing PV 124SXFXCXXV1O1TXPX15LWW](https://mdcop.weidmueller.com/mediadelivery/asset/900_318646) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC003857 |
| ETIM 9.0 | EC003857 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 22-57-02-90 |
| ECLASS 10.0 | 22-57-02-90 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| ECLASS 14.0 | 22-57-02-92 |
| Approvals |  |
| ROHS | Conform |
