Egenskaber

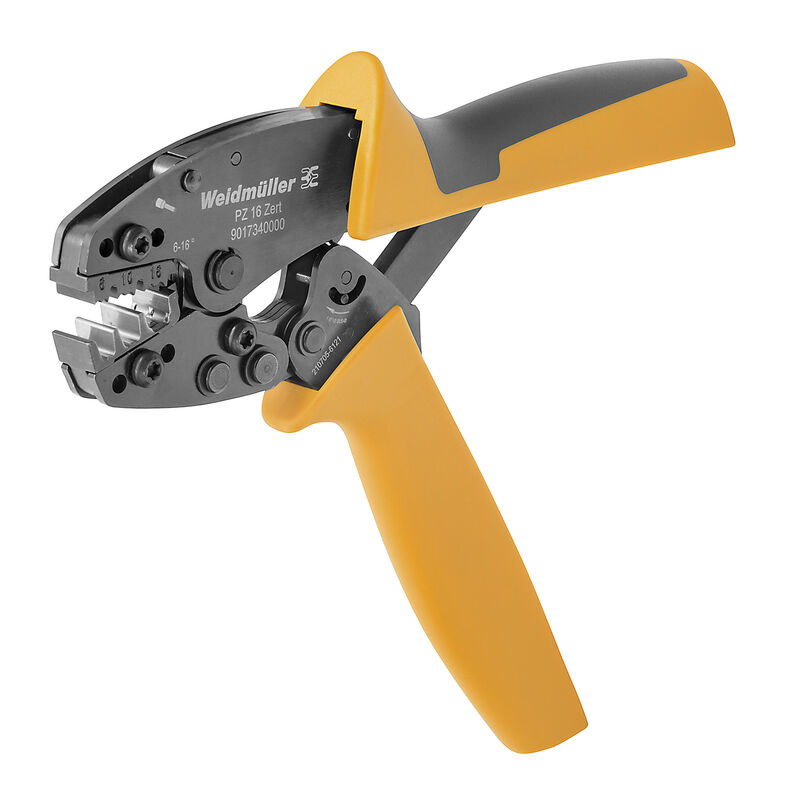

| Version | Crimping tool for wire-end ferrules, 6mm², 16mm², Indent crimp |
| Order No. | 9017340000 |
| Type | PZ 16 ZERT |
| GTIN (EAN) | 4008190420468 |
| Qty. | 1 Styk |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 436 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | (1)Crimping tool |
| Conductor cross-section, max. AWG | AWG 6 |
| Conductor cross-section, min. AWG | AWG 10 |
| Crimping range, max. | 16 mm² |
| Crimping range, min. | 6 mm² |
| Type of contact | Wire-end ferrules with/without plastic collars |
| Crimping type/profile | Indent crimp |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318107) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9017340000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
Tilbehør
-
Produkt ID:0566000000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, green
-
Produkt ID:9021170000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, white
-
Produkt ID:9019270000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, blue
-
Produkt ID:9021180000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, white
-
Produkt ID:0565900000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, green
-
Produkt ID:9019260000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, blue
-
Produkt ID:9037570000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, red
-
Produkt ID:9037340000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, Ivory
-
Produkt ID:9037350000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 23 mm, 18 mm, Ivory
-
Produkt ID:9037580000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 23 mm, 18 mm, red
-
Produkt ID:9037710000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, brown
-
Produkt ID:9037720000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 23 mm, 18 mm, brown
-
-
-
Produkt ID:9019230000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 20 mm, 18 mm, yellow
-
Produkt ID:9021130000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 14 mm, 12 mm, green
-
Produkt ID:0533500000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 14 mm, 12 mm, black
-
Produkt ID:0565700000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 20 mm, 18 mm, black
-
Produkt ID:9021140000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 20 mm, 18 mm, green
-
Produkt ID:9019220000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 14 mm, 12 mm, yellow
-
Produkt ID:9004710000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, red
-
Produkt ID:9004940000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, Ivory
-
Produkt ID:9005170000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, brown
-
Produkt ID:9018880000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, red
-
Produkt ID:9018870000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 23 mm, 18 mm, Ivory
-
Produkt ID:9018890000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 23 mm, 18 mm, red
-
Produkt ID:9018860000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 17 mm, 12 mm, Ivory
-
Produkt ID:9006790000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 17 mm, 12 mm, yellow
-
Produkt ID:9037690000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, green
-
Produkt ID:9037330000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 24 mm, 18 mm, black
-
Produkt ID:9037700000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 24 mm, 18 mm, green
-
Produkt ID:9037560000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 24 mm, 18 mm, yellow
-
Produkt ID:9037320000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, black
-
Produkt ID:9037550000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, yellow
-
Produkt ID:9025920000Pakningsenhed:1 Styk
Assortment of wire end ferrules, Box, Colour code: Weidmüller
-
Produkt ID:9025400000Pakningsenhed:1 Styk
Assortment of wire end ferrules, Box, Colour code: DIN
-
Produkt ID:9005160000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, green
-
Produkt ID:9004930000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, black
-
Produkt ID:9004720000Pakningsenhed:100 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 12 mm, yellow
-
Produkt ID:9004130000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 18 mm, 18 mm, No
-
Produkt ID:0191900000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 12 mm, 12 mm, No
-
-
Produkt ID:9004120000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 10 mm, 10 mm, No
-
Produkt ID:9037740000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 29 mm, 25 mm, white
-
Produkt ID:9037370000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 29 mm, 25 mm, green
-
Produkt ID:9037600000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 29 mm, 25 mm, blue
-
Produkt ID:9037590000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 16 mm, blue
-
Produkt ID:9037360000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 16 mm, green
-
Produkt ID:9037730000Pakningsenhed:50 Styk
Wire-end ferrule, Twin wire-end ferrule, 20 mm, 16 mm, white
-
Produkt ID:9019250000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, red
-
Produkt ID:9019240000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, red
-
Produkt ID:0534200000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, Ivory
-
Produkt ID:0565800000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, Ivory
-
Produkt ID:9021150000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 15 mm, 12 mm, brown
-
Produkt ID:9021160000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 21 mm, 18 mm, brown
-
Produkt ID:0492500000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 12 mm, 12 mm, No
-
Produkt ID:9004160000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 32 mm, 32 mm, No
-
Produkt ID:0124800000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 15 mm, 15 mm, No
-
Produkt ID:0375200000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 18 mm, 18 mm, No
-
Produkt ID:0124300000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 15 mm, 15 mm, No
-
Produkt ID:0379300000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 18 mm, 18 mm, No
-
Produkt ID:9004150000Pakningsenhed:100 Styk
Wire-end ferrule, Standard, 25 mm, 25 mm, No
-
Produkt ID:0282900000Pakningsenhed:500 Styk
Wire-end ferrule, Standard, 12 mm, 12 mm, No
