Egenskaber
| Version | Pressing tool, Crimping tool for wire-end ferrules, 6mm², 16mm², Indent crimp |
| Order No. | 9012600000 |

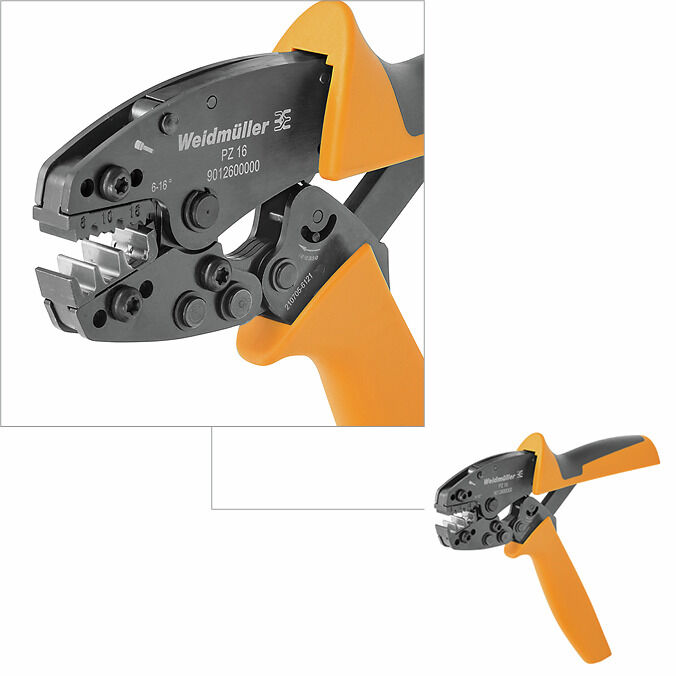

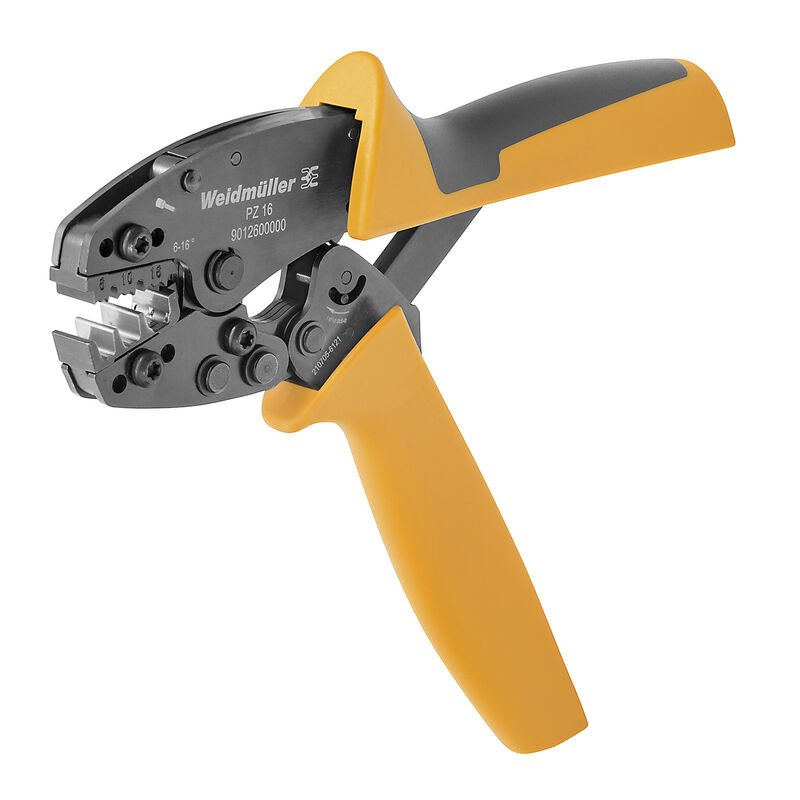

| Type | PZ 16 |
| GTIN (EAN) | 4008190035440 |
| Qty. | 1 Styk |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 429,8 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | (2)Crimping tool |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 6 |
| Conductor cross-section, min. AWG | AWG 10 |
| Crimping range, max. | 16 mm² |
| Crimping range, min. | 6 mm² |
| Type of contact | Wire-end ferrules with/without plastic collars |

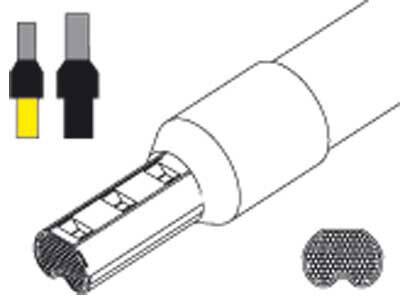

| Crimping type/profile | Indent crimp |
| Wire end ferrules cross-section, max. | 16 mm² |
| Wire end ferrules cross-section, min. | 6 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66797) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9012600000) |
| User Documentation | [manual_PZ16_PZ6/5](https://mdcop.weidmueller.com/mediadelivery/asset/900_314404) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
