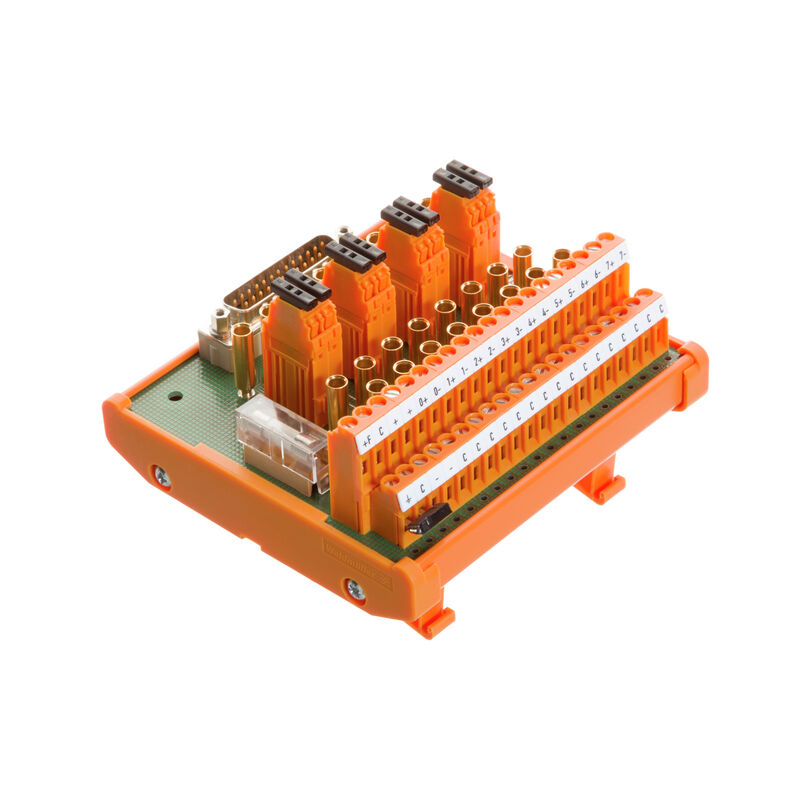

RS 8AIO I-M-DP SD Z

RS 8AIO I-M-DP SD Z

Download datablad Anvendte produkter

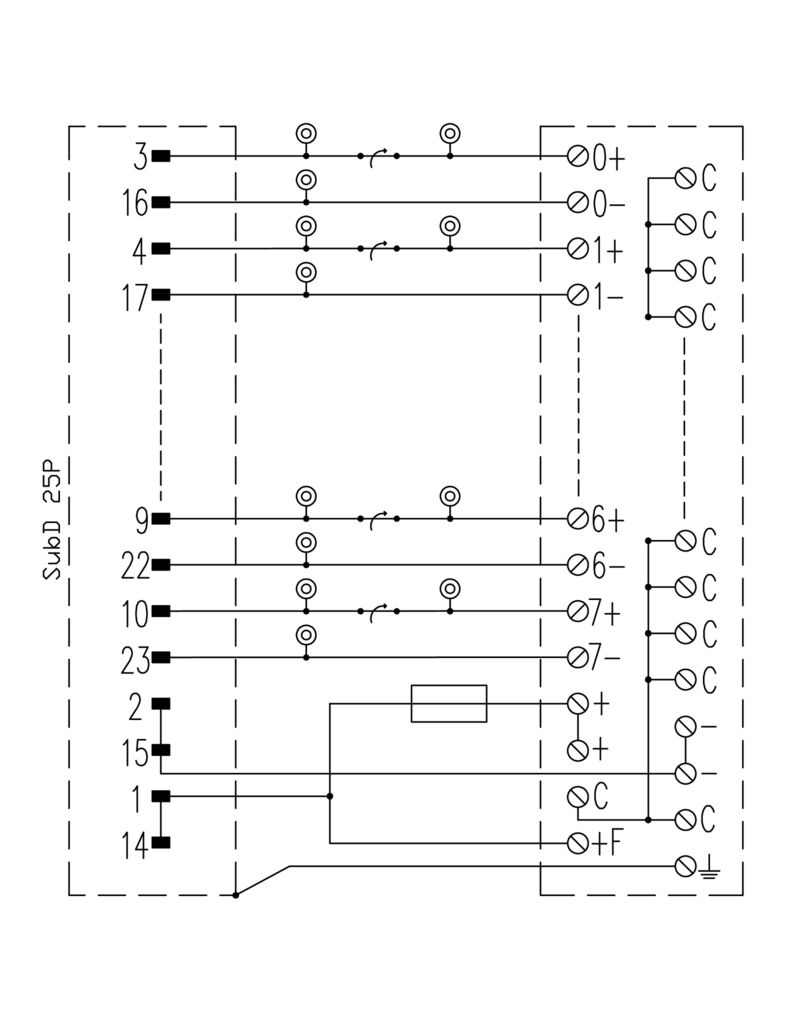

RS 8AIO I-M-DP SD Z

Interface, RS, Spacer, 2-wire, Tension-clamp connection

Produkt ID 9449110000

Egenskaber

General ordering data

Version	Interface, RS, Spacer, 2-wire, Tension-clamp connection
Order No.	9449110000
Type	RS 8AIO I-M-DP SD Z
GTIN (EAN)	4032248253487
Qty.	1 Styk

Dimensions and weights

Depth	81 mm
Depth (inches)	3,189 inch
Height	109 mm
Height (inches)	4,291 inch
Width	114 mm
Width (inches)	4,488 inch
Net weight	327 g

Storage temperature	-40...60 °C
Operating temperature	-20...50 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6aI, 6c
REACH SVHC	Lead 7439-92-1
SCIP	7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Operating temperature UL, max.	25 °C
Operating temperature UL, min.	0 °C
Rated current I_N	0,5 A
Rated voltage U_N	≤ 25 V AC 50 V DC
Rated voltage DC U_N (supply)	24 V
Rated current (supply)	3 A
Rated current fuse (supply)	3,15 A

LED status display per channel	No
Disconnection per channel	Yes
Voltage point of measurement	Yes
Current-measuring testpoint	Yes
Type of test point	Diameter: 4 mm
LED status of the supply voltage	No
Power supply fuse	3.15 A
Common pole polarity	Positive or negative can be selected using jumper

Connection data

Connection (field side)	LMNZF 5.08mm
Connection on control side	D-sub connectors, acc. to IEC 60807 / DIN 41652
Connection supply	LMNZF 5.08mm
Number of poles (control side)	25-pole plug
Protective earth connection	Shielding in SUB-D plug-in connector
Wiring system	2-wire

Operating voltage	≤ 25 V AC / 50 V DC
Max. current for common pole	3.15 A
Max. current per channel	0,5 A

Insulation coordination (EN50178)

According to	DIN EN 50178
Rated insulation voltage	<50 V AC
Surge voltage category	III
Pollution severity level	2
Pulse voltage test (1,2/50μs)	0,8 kV
Insulation test voltage AC	0,35 kV

Connection field

Clamping range, max.	2,5 mm²
Clamping range, min.	0,13 mm²
Flexible with sleeve, max.	1,5 mm²
Flexible, max. H05(07) V-K	1,5 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Max. wire cross-section, AWG	AWG 14
Min. wire cross-section, AWG	AWG 26
Solid, max. H05(07) V-U	1,5 mm²
Solid, min. H05(07) V-U	0,5 mm²
Stripping length	7 mm
Type of connection	Tension-clamp connection

Supply connection

Type of connection	Tension-clamp connection
Clamping range, min.	0,13 mm²
Clamping range, max.	2,5 mm²
Solid, min. H05(07) V-U	0,2 mm²
Solid, max. H05(07) V-U	2,5 mm²
Flexible, min. H05(07) V-K	0,2 mm²
Flexible, max. H05(07) V-K	1,5 mm²
Flexible with sleeve, max.	1,5 mm²
Flexible with sleeve, min.	0,25 mm²
Ferrule with plastic collar, max.	1,5 mm²
Wire cross-section, min. AWG	AWG 24
Wire cross-section, max. AWG	AWG 14
Stripping length	7,5 mm

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153606)
Product Change Notification	[20220525 Technical change to RS and RSM](https://mdcop.weidmueller.com/mediadelivery/asset/900_257205) [Technical change to module RS 8AIO I-M-DP SD Z](https://mdcop.weidmueller.com/mediadelivery/asset/900_304066)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002780
ETIM 7.0	EC002780
ETIM 8.0	EC002780
ETIM 9.0	EC002780
ECLASS 9.0	27-14-11-52
ECLASS 9.1	27-14-11-52
ECLASS 10.0	27-14-11-52
ECLASS 11.0	27-14-11-52
ECLASS 12.0	27-14-11-52
ECLASS 13.0	27-14-11-52
ECLASS 14.0	27-14-11-52

Approvals	![CE](/picture/CE.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E141197
