SAI-ADAPT-M8/M8 4/3P
SAI-ADAPT-M8/M8 4/3P
Dimensioned drawing
SAI-ADAPT-M8/M8 4/3P

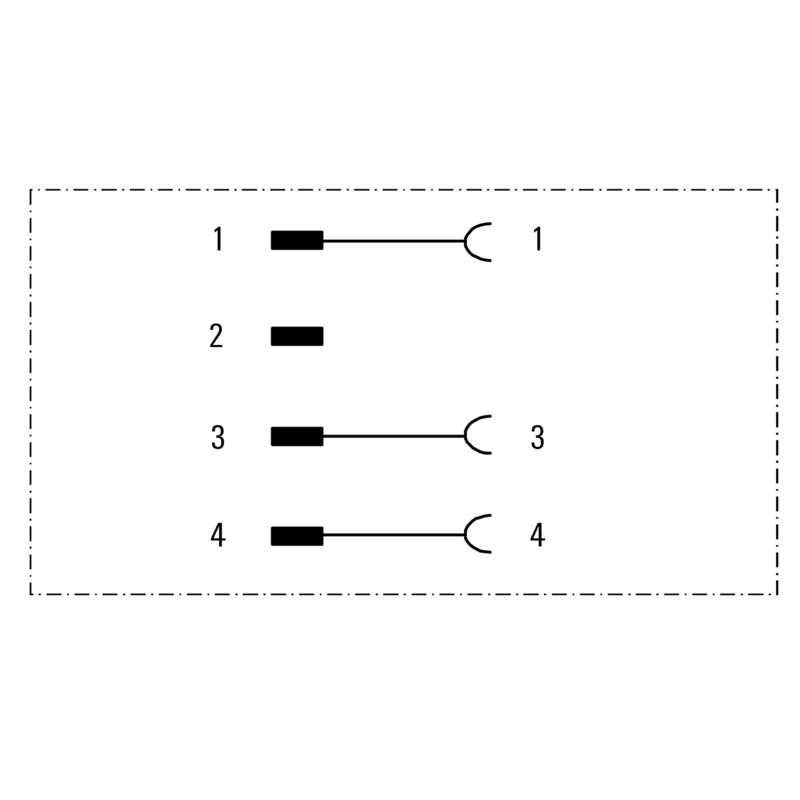

Wiring diagram

SAI-ADAPT-M8/M8 4/3P

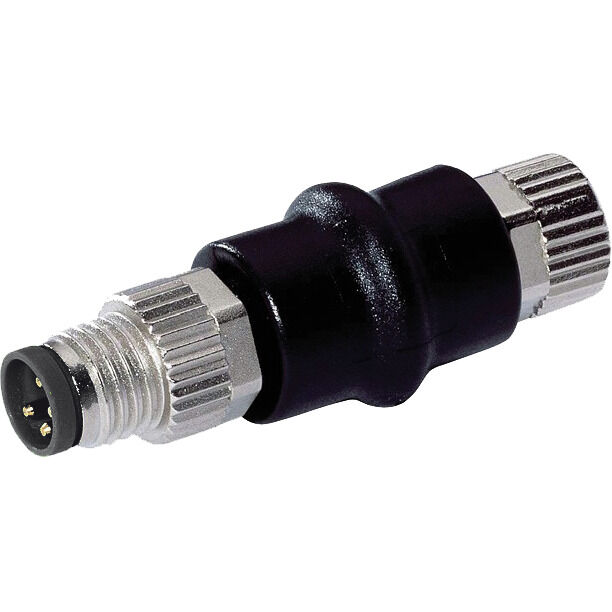

Y connector, M8 / M8

Product ID 1990570000
Gegevensblad downloaden Engineeringondersteuning
Verwante producten 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Connection data Technical data customisable plug-in connectors Standards General data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
Y connector, M8 / M8
Order No.
1990570000
Type
SAI-ADAPT-M8/M8 4/3P
GTIN (EAN)
4050118376609
Qty.
1 items

Dimensions and weights

Net weight
10 g

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Connection data

Single outlet 1 - plug-in connector
M8 pin
Single outlet 2 - plug-in connector
M8 socket
Tightening torque
M8: 0.5 Nm

Technical data customisable plug-in connectors

Coding
M8 = none
Materiál kroužku se závitem
Diecast zinc
nickel-plated
Nominal current
4 A
Nominal voltage
24 V
Number of poles
4
Protection degree
IP67
Připojení stínění
No
Rozsah teplot krytu
-25…+85 °C
Závažnost znečištění
3

Standards

커넥터 표준
IEC 61076-2-104

General data

Coding
M8 = none
Conductor O.D.
-
Connection thread
M8 / M8
Nominal current
4 A
Nominal voltage
24 V
Number of poles
4
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-25…+85 °C

Classifications

ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
