SAIE-M12S-5-0.5U-FP-PG9
SAIE-M12S-5-0.5U-FP-PG9
SAIE-M12S-5-0.5U-FP-PG9
Wiring diagram
SAIE-M12S-5-0.5U-FP-PG9
Pole scheme
M12, pin, A-coded

SAIE-M12S-5-0.5U-FP-PG9

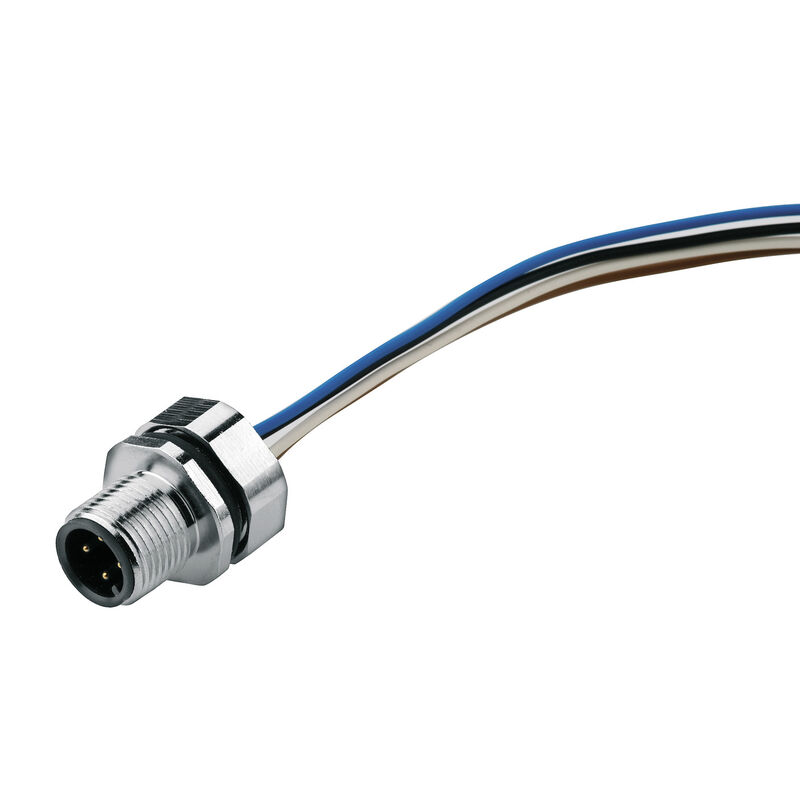

내장 플러그, M12, 핀, 직선형, 장착 나사산: PG 9, 극 수: 5, 가닥/케이블 길이: 0.5 m, 전면 장착

Tuotteen tunnus 1814900000
Lataa tietosivu Engineering Support
Samankaltaiset tuotteet 6
Agréments 일반 주문 데이터 Dimensions and weights Conformità ambientale del prodotto Technical specifications for cable Technical data customisable plug-in connectors Standards General data Classifications

Agréments

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

일반 주문 데이터

Version
내장 플러그, M12, 핀, 직선형, 장착 나사산: PG 9, 극 수: 5, 가닥/케이블 길이: 0.5 m, 전면 장착
Order No.
1814900000
Type
SAIE-M12S-5-0.5U-FP-PG9
GTIN (EAN)
4032248303137
Qty.
1 items

Dimensions and weights

Net weight
34 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Colour coding
brown
white
blue
black
grey
Core cross-section
0,34 mm²
Number of poles
5
PE function
No
Strand / cable length
0,5 m

Technical data customisable plug-in connectors

Cable gland
PG 9
Coding
A-coded
Contact surface
Gold-plated
Housing main material
Brass
nickel-plated
Nominal voltage
60 V
Number of poles
5
Plugging cycles
≥ 100
Protection degree
IP67
when screwed in

Standards

Connector standard
IEC 61076-2-101

General data

Basic material
PVC
Cable gland
PG 9
Coding
A-coded
Conductor O.D.
-
Connection 1
M12
Connection 2
Flying wires
Connection thread
M12
Contact surface
Gold-plated
Core cross-section
0,34 mm²
Housing main material
Brass
nickel-plated
Mounting thread
PG 9
Mounting torque
  • max.:
    2 Nm
Mounting torque range
2 Nm
Nominal voltage
60 V
Number of poles
5
Plugging cycles
≥ 100
Protection degree
IP67
when screwed in
Rated voltage
250 V (4-pole) / 125 V (5-pole) / 60 V (8-pole)
Strand / cable length
0,5 m
Tightening torque
1 Nm
Type of mounting
Montage frontal

Classifications

ETIM 8.0
EC003570
ETIM 9.0
EC003570
ETIM 10.0
EC003570
ECLASS 14.0
27-44-01-03
ECLASS 15.0
27-44-01-03
