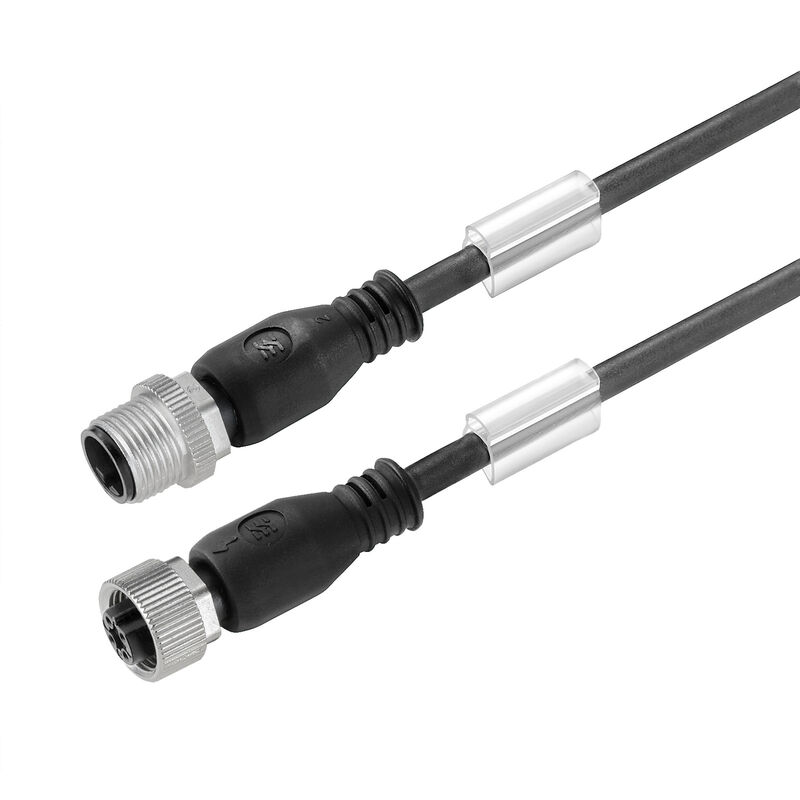

SAIL-M12GM12G-12-10U

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 12, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1964401000

Egenskaber

General ordering data

Version	Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 12, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1964401000
Type	SAIL-M12GM12G-12-10U
GTIN (EAN)	4032248648801
Qty.	1 Styk

Dimensions and weights

Net weight

405 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration	5 m/s²
Bending cycles	1 mill.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	10 m

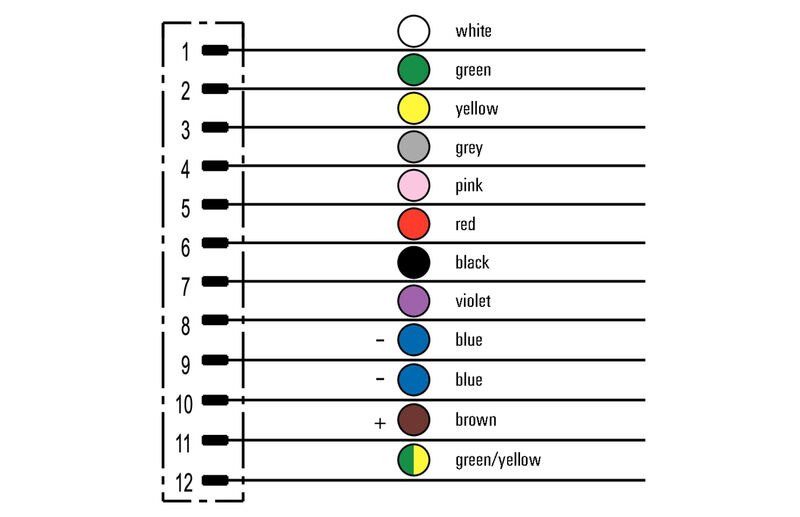

Colour coding	yellow pink red / blue black grey / pink green white blue violet brown red grey
Configurable cable length	Yes
Core cross-section	0,14 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Insulation	PP
Irradiation crosslinked	No

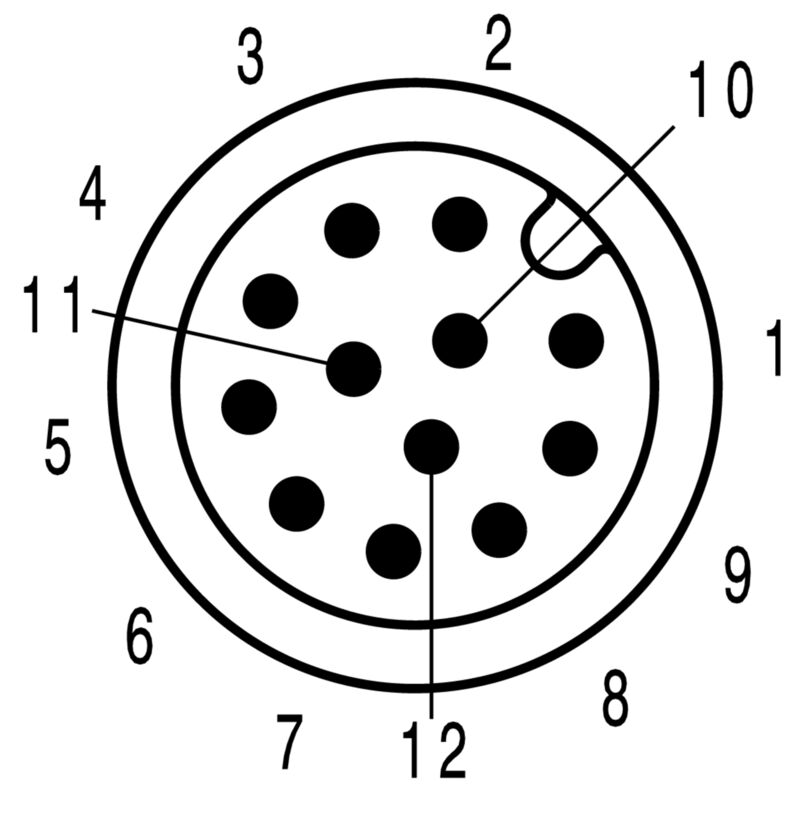

Number of poles	12
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	5.6 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	180 °/m
Welding spark resistance	No

General technical data

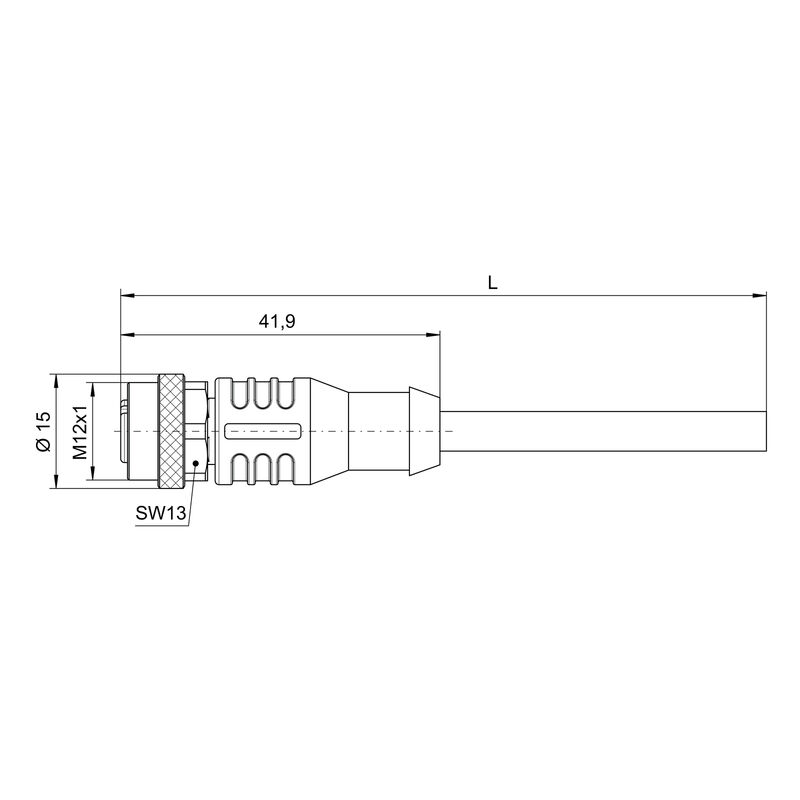

AF size	13 mm
Coding	A-coded
Connection thread	M12 / M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP65 IP67 IP68 when screwed in
Rated current	1,5 A
Rated voltage	30 V
Shock and vibration proof according to	Section B
Temperature range of housing	-40 … +85 ° C
Threaded ring material	Brass, nickel-plated
Tightening torque	M12: 0.8 - 1.2 Nm
Version	pin, straight - socket, straight

Electrical properties

Insulation strength	10⁸ Ω
Rated current	1.5 A
Rated voltage	30 V

General standards

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Standards

Connector standard	IEC 61076-2-101
Shock and vibration proof according to	Section B

Plug, left

Plug left

M12, A-coded, IP67, male contact, straight, Plastic, unshielded

Plug, right

Plug right

M12, A-coded, IP67, female contact, straight, Plastic, unshielded

Downloads

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1964401000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC001855
ETIM 7.0	EC001855
ETIM 8.0	EC001855
ETIM 9.0	EC001855
ECLASS 9.0	27-06-03-11
ECLASS 9.1	27-06-03-11
ECLASS 10.0	27-06-03-11
ECLASS 11.0	27-06-03-11
ECLASS 12.0	27-06-03-11
ECLASS 13.0	27-06-03-11
ECLASS 14.0	27-06-03-11

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E307231
