SAIS-M23-12P-AN-1,0M
SAIS-M23-12P-AN-1,0M
Dessin coté
Male, angled
SAIS-M23-12P-AN-1,0M
Schéma des pôles
Male
SAIS-M23-12P-AN-1,0M
Schéma

SAIS-M23-12P-AN-1,0M

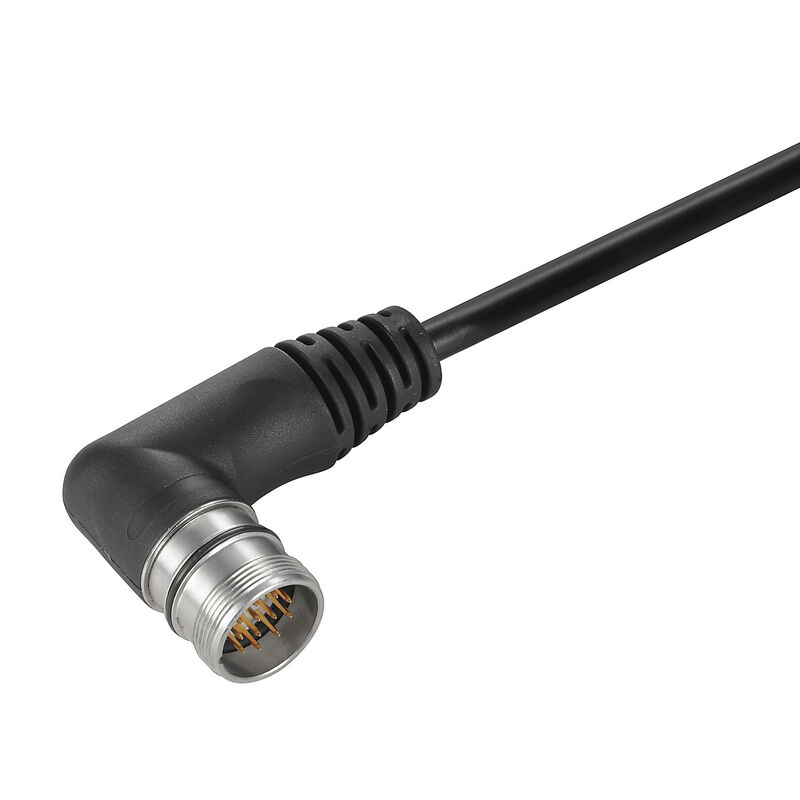

Sensor/actuator line, One end without connector, M23, External thread, Number of poles: 12, 1 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1906290100
Download datablad Produktdownloads Engineering-support
Tilbehør 2 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Obecné standardy Plug, left Plug, right Product images Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E486077

General ordering data

バージョン
Sensor/actuator line, One end without connector, M23, External thread, Number of poles: 12, 1 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1906290100
種別
SAIS-M23-12P-AN-1,0M
GTIN (EAN)
4032248528837
Qty.
1 Styk

Dimensions and weights

Net weight
170 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Barevné kódování
white
green
Green/yellow
yellow
grey
pink
red
black
violet
blue
brown
Blindé
No
Couleur de la gaine
black
Cycles de courbure
2 Mio
Diámetro exterior
7.7 mm ± 0.3 mm
Gaine selon UL AWM
21198 (80 °C / 300 V)
Halogène
No
Isolation
TPM
Longueur du câble
1 m
Matériau de la gaine
PUR
Número de polos
12
Odolnost proti zkrutu
0 °/m
Odolnost vůči jiskrám ze sváření
No
Rayon de courbure, mobile
10 x cable diameter
Resistente a las salpicaduras de soldadura
No
Réticulé par irradiation
No
Section max. du conducteur (Impression/en ligne)
3 x 0.75 mm² + 8 x 0.34 mm²
Temperaturbereich, bewegt
-25...80 °C
Temperaturbereich, fest verlegt
-50...80 °C
Utilisation sur chaîne porte-câbles
Yes

General technical data

Anslutningssida version
  • Connection side:
    1
  • Connection thread:
    M23
  • Type of contact:
    Pin
  • Type of thread:
    External thread
  • Outlet direction:
    angled
bockad
No
Connection side version 1
M23, Pin, External thread, angled
Isolationsmotstånd
1012 Ω
Kapslingsmaterial
PUR
LED
No
Märkström
8 A
Nominell spänning
120 V
Skyddsklass
IP67
Stickcykler
≥ 50
Temperature range of housing
-25…+80 °C
Threaded ring material
Diecast zinc
Tightening torque
M23: 2.5 Nm
Utförande
pin, 90°
Поверхность контакта
Gold-plated
Соединительная резьба
M23
External thread
Степень загрязнения
2

Electrical properties

Insulation resistance
1012 Ω
Nominal voltage
120 V

Obecné standardy

Certificat Nº (cURus)
E486077

Plug, left

Plug left
IP67, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
