Egenskaber

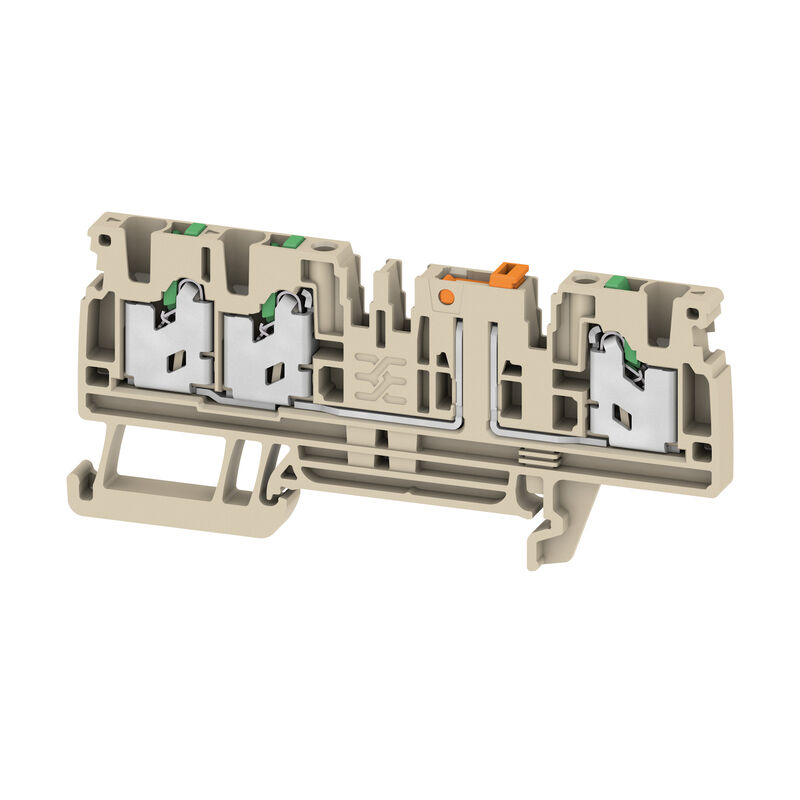

| Version | Test-disconnect terminal, SNAP IN, dark beige, 2.5 mm², 24 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Order No. | 3016680000 |
| Type | SDT 2.5 3C |
| GTIN (EAN) | 4099986926530 |
| Qty. | 50 Styk |
| Depth | 37,65 mm |
| Depth (inches) | 1,482 inch |
| Height | 84,5 mm |
| Height (inches) | 3,327 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 13,518 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | dark beige |
| Colour of operational elements | green |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | right |
| Snap-on | Yes |
| Type of mounting | Snap-on |
| Connection type, additional connection | SNAP IN |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 2,5 mm² |
| Clamping range, min. | 0,34 mm² |
| Connection cross-section, stranded, max. | 2,5 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Type of connection | SNAP IN |
| Type of connection 2 | SNAP IN |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 0,34 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,34 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,34 mm² |
| Wire connection cross-section, solid core, max. | 2,5 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Rail | TS 35 |
| Standards | DIN EN 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 22 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 24 A |
| Current at maximum wires | 20 A |
| Standards | DIN EN 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 mW |
| Pollution severity | 3 |
| Surge voltage category | III |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318382) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
