Egenskaber

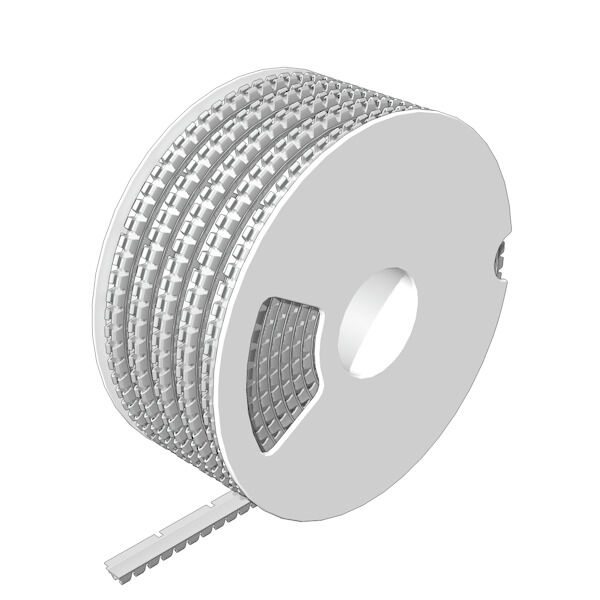

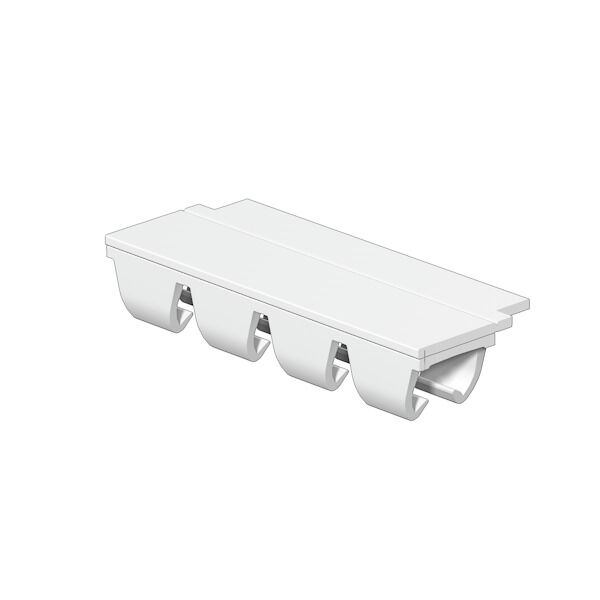

| Version | Conductor and cable markers, 2.5 - 4 mm, 24 x 5.7 mm, white |
| Order No. | 2719230000 |
| Type | SFM 4/24 3.3-4.0 MM WS |
| GTIN (EAN) | 4050118888263 |
| Qty. | 600 Styk |
| Height | 24 mm |
| Height (inches) | 0,945 inch |
| Width | 5,7 mm |
| Width (inches) | 0,224 inch |
| Net weight | 0,45 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| Size of labelling field | 4.9 x 21.5 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 5,7 mm |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 3,3 mm² |
| Conductor O.D. | 2.5 - 4 mm |
| Conductor O.D., max. | 4 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 3.3 - 4 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_244235) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2719230000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2719230000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
