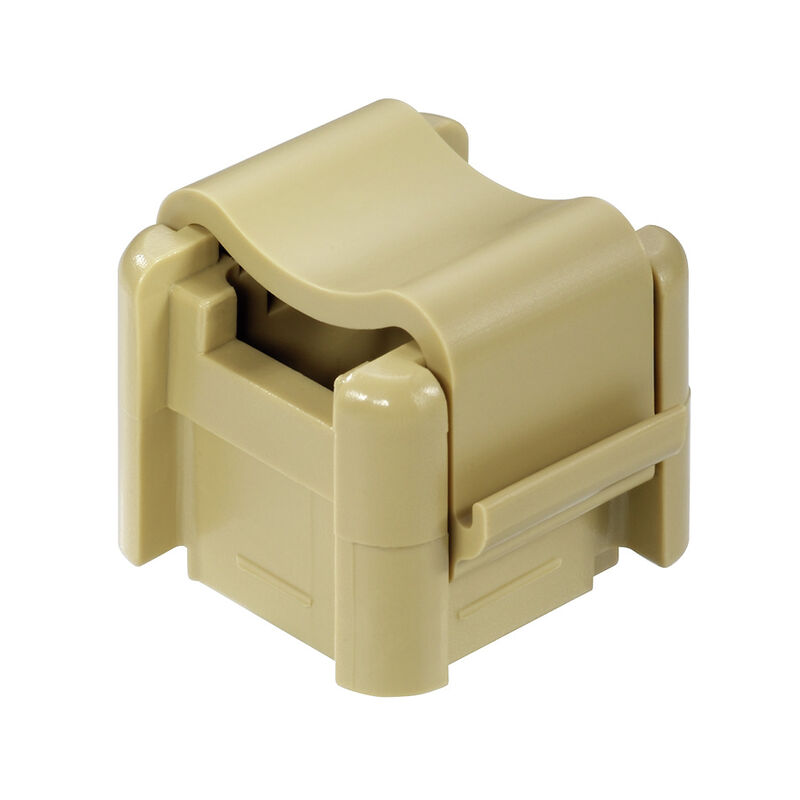

SH 1

Busbar support, beige, 100 °C, Width: 26 mm, V-2, Polyamide 66, when screwed in

Produkt ID 0299860000

Egenskaber

General ordering data

Version	Busbar support, beige, 100 °C, Width: 26 mm, V-2, Polyamide 66, when screwed in
Order No.	0299860000
Type	SH 1
GTIN (EAN)	4008190135133
Qty.	20 Styk

Dimensions and weights

Depth	24 mm
Depth (inches)	0,945 inch
Height	24,5 mm
Height (inches)	0,965 inch
Width	26 mm
Width (inches)	1,024 inch
Net weight	2 g

Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Polyamide 66
Surface finish	all others
Colour	beige
UL 94 flammability rating	V-2

Additional technical data

Installation advice	Direct mounting
Type of mounting	when screwed in

Conductors for clamping (rated connection)

Type of connection

Miscellaneous

Installation advice	Direct mounting
Number of poles	1
Operating temperature range, max.	100 °C
Surface finish	all others

Engineering Data	[CAD data -- 02961_SH_1_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38107) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58969)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.0299860000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0299860000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001166
ETIM 7.0	EC001166
ETIM 8.0	EC001166
ETIM 9.0	EC001166
ECLASS 9.0	27-40-06-07
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-40-06-07
ECLASS 11.0	27-40-06-07
ECLASS 12.0	27-40-06-07
ECLASS 13.0	27-40-06-07
ECLASS 14.0	27-40-06-07

ROHS

Conform
