Egenskaber

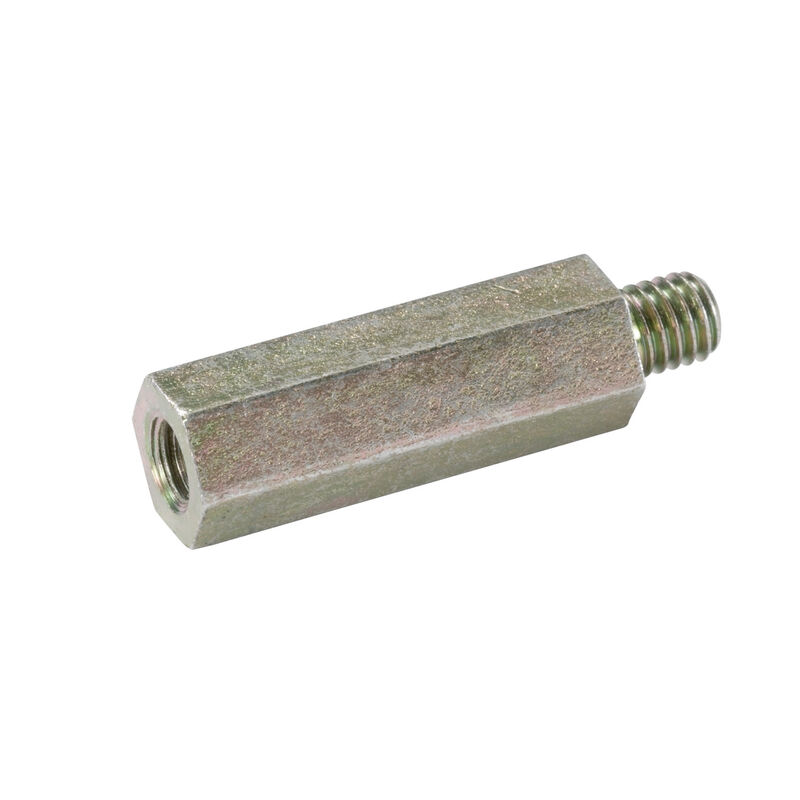

| Version | Klippon EB (Essential Box), Spacer, Height: 11.2 mm, Width: 10 mm, Depth: 30 mm, Material: Steel, silver |
| Order No. | 3896300000 |
| Type | SP M6 30 MSZN |
| GTIN (EAN) | 4008190850241 |
| Qty. | 2 Styk |
| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 11,2 mm |
| Height (inches) | 0,441 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 20 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6aI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4fe41ce4-fb58-49a0-ad55-50be51f269ad |
| Material | Steel |
| Type of fixing | when screwed in |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72196) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.3896300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=3896300000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002625 |
| ETIM 7.0 | EC002625 |
| ETIM 8.0 | EC002625 |
| ETIM 9.0 | EC002625 |
| ECLASS 9.0 | 27-18-28-07 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-28-07 |
| ECLASS 11.0 | 27-18-28-07 |
| ECLASS 12.0 | 27-18-28-07 |
| ECLASS 13.0 | 27-18-28-07 |
| ECLASS 14.0 | 27-18-28-07 |
| ROHS | Conform |
