Egenskaber
| Version | Socket (terminal), Plug-in depth: 11.1 mm, Depth: 26.6 mm |
| Order No. | 1071080000 |

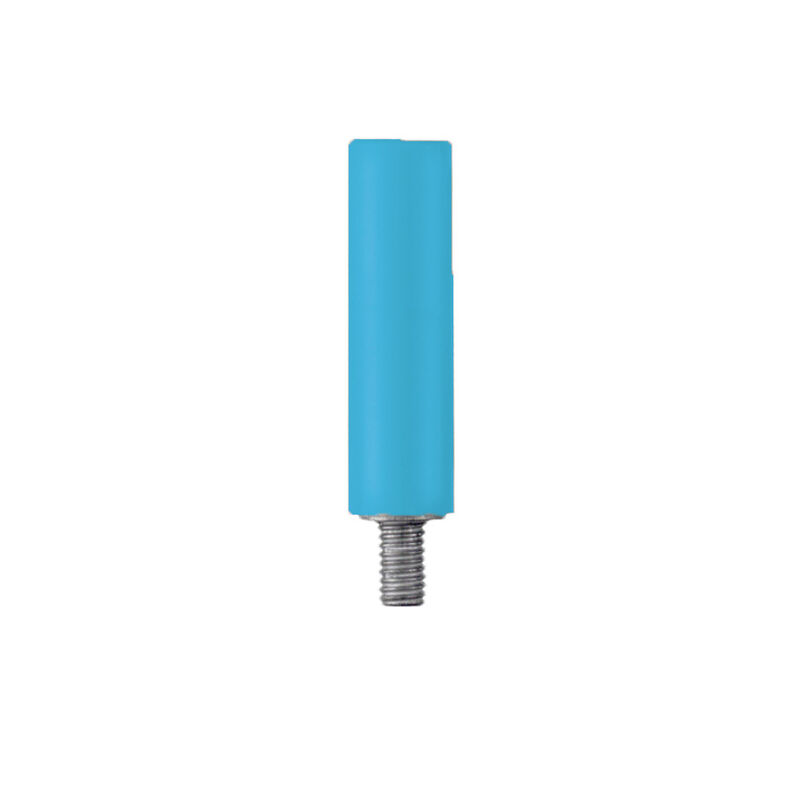

| Type | STB 21.6/IH/BL WTL6/3 |
| GTIN (EAN) | 4008190043957 |
| Qty. | 50 Styk |
| Depth | 26,6 mm |
| Depth (inches) | 1,047 inch |
| Height | 6,1 mm |
| Height (inches) | 0,24 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 2,31 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | dce63e23-eea1-4eaa-9071-1c98fc8fa2ea |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Plug-in depth | 11,1 mm |
| TS 32 offset | 54,5 mm |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 100 °C |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224715) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1071080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1071080000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
