Egenskaber

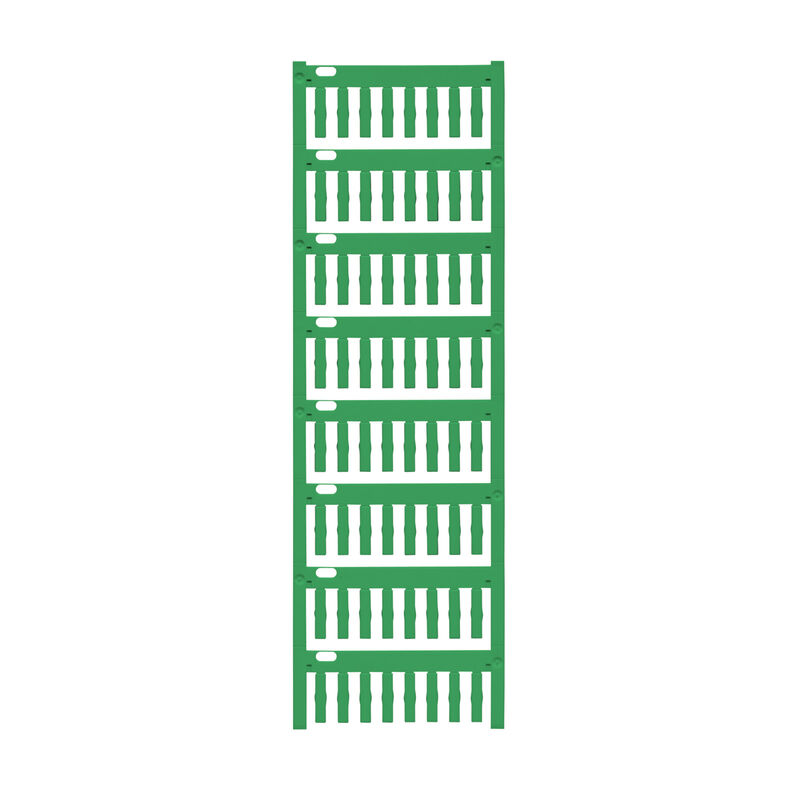

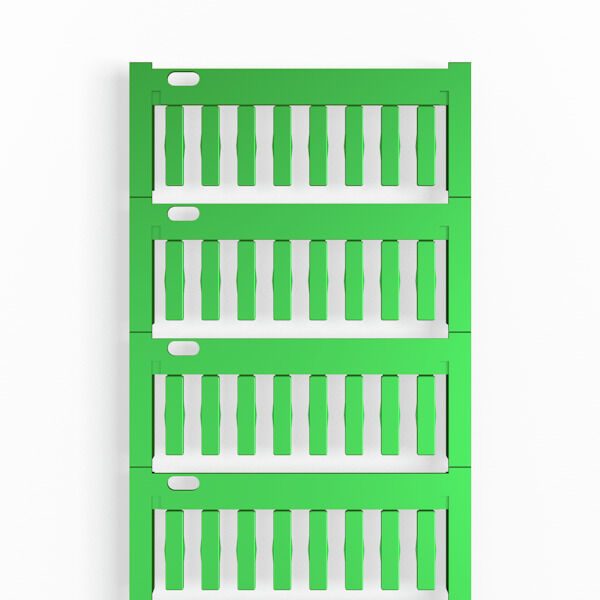

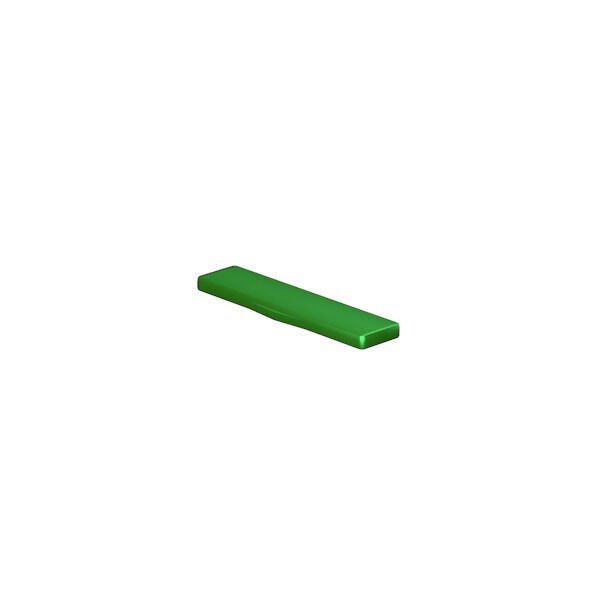

| Version | TM-I, Insert markers, 1.5 - 22 mm, 18 x 4 mm, green |
| Order No. | 1718431688 |
| Type | TM-I 18 MC NE GN |
| GTIN (EAN) | 4008190398699 |
| Qty. | 320 Styk |
| Depth | 1,7 mm |
| Depth (inches) | 0,067 inch |
| Height | 18 mm |
| Height (inches) | 0,709 inch |
| Width | 4 mm |
| Width (inches) | 0,157 inch |
| Net weight | 0,3 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | green |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 5 |
| Number of markers per combination | 1 MultiCard = Insert markers |
| Number of markers per packaging unit |
|
| Number per sheet | 64 |
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | neutral |
| Recommended industries |
Transportation
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 4 mm |
| Conductor O.D. | 1.5 - 22 mm |
| Conductor O.D., max. | 22 mm |
| Conductor O.D., min. | 1,5 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63033) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1718431688) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1718431688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ETIM 10.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ECLASS 15.0 | 27-28-11-02 |
| ROHS | Conform |
