TOP 24-230VUC 48VDC0,1A ED2
TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, PUSH IN
Produkt ID
2663070000
Egenskaber
| Version | TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, PUSH IN |
| Order No. | 2663070000 |
| Type | TOP 24-230VUC 48VDC0,1A ED2 |
| GTIN (EAN) | 4050118698008 |
| Qty. | 10 Styk |
| Depth | 87,8 mm |
| Depth (inches) | 3,457 inch |
| Height | 89,4 mm |
| Height (inches) | 3,52 inch |
| Width | 6,4 mm |
| Width (inches) | 0,252 inch |
| Net weight | 35 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
| MTTF | 1.150 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9 |
| Ambient temperature (operational), max. | 60 °C |
| Connection cross-section AWG, min. | AWG 26 |
| Connection cross-section AWG, max. | AWG 14 |
| Type of conductor |
rigid copper conductor
flexible copper conductor |
| Pollution severity level | 2 |
| Rated control voltage | 24…230 V UC ±10 % |

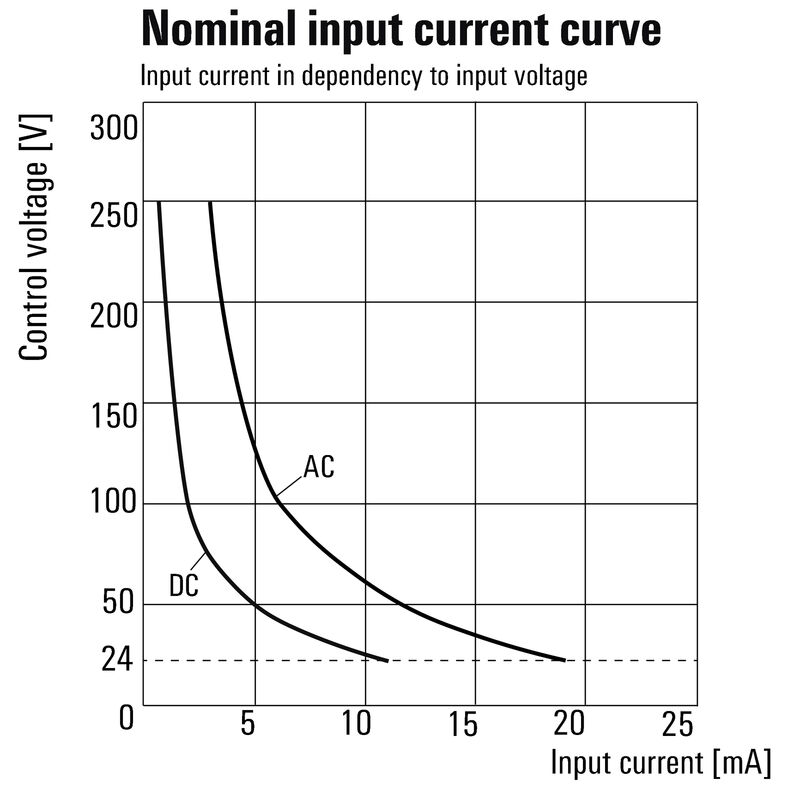

| Nominal control current |
11.0 mA at 24 V DC
1.1 mA at 230 V DC 19.0 mA at 24 V AC 2.8 mA at 230 V AC |
| Rated current AC |
19.0 mA @ 24 V AC
2.8 mA @ 230 V AC |
| Rated current DC |
11.0 mA @ 24 V DC
1.1 mA @ 230 V DC |
| Power rating |
265 mW @ 24 V DC
255 mW @ 230 V DC 455 mVA @ 24 V AC 645 mVA @ 230 V AC |
| Status indicator | Green LED |
| Protective circuit | Rectifier |
| Input frequency | 3 Hz |
| Coil voltage of the replacement relay deviating from the rated control voltage | Yes |
| Coil voltage of the replacement relay | 24 V DC |
| Rated switching voltage | 3... 48 V DC |
| Continuous current | 0.1 A |
| Rated switching current | 100 mA |
| Switch-on delay | ≤ 40 ms |
| Switch-off delay | ≤ 70 ms |
| Voltage drop at max. load | ≤ 1 V |
| Leakage current | <10 µA |
| Min. switching current | 500 µA |
| Short-circuit-proof | No |
| Protective circuit, load side | Free-wheeling diode |

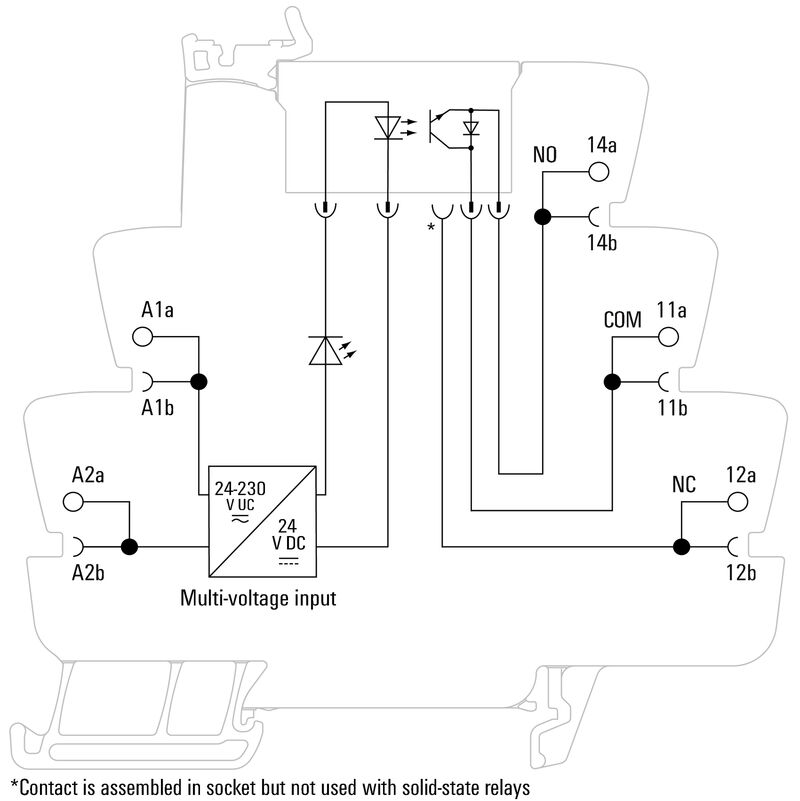

| Contact type | 1 NO contact (Bipolar transistor) |
| max. switching frequency (AC control voltage) | 3 Hz |
| max. switching frequency (DC control voltage) | 3 Hz |
| Operating altitude |
≤ 2000 m
above sea level |
| Rail | TS 35 |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 6 mm |
| Dielectric strength for control side - load side | 3.51 kVeff /1 min. |
| Dielectric strength to mounting rail | 3.51 kVeff / 1 min. |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (DNV) | TAA00001E5 |
| Certificate no. (cULus) | E141197 |
| Wire connection method | PUSH IN |
| Stripping length, rated connection | 9 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,14 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.4 x 2.0 mm |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Decleration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_96535) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205659) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2663070000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2663070000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2663070000&norm=0) |
| User Documentation | [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ECLASS 14.0 | 27-37-16-04 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
