Egenskaber
| Order No. | 2857070000 |

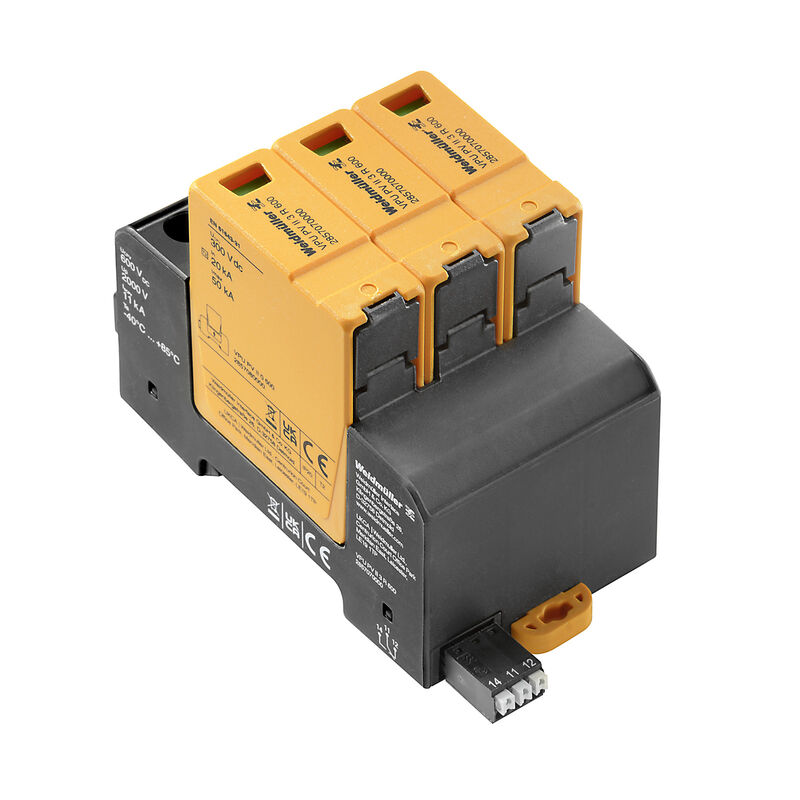

| Type | VPU PV II 3 R 600 |
| GTIN (EAN) | 4064675537434 |
| Qty. | 1 Styk |
| Depth | 75 mm |
| Depth (inches) | 2,953 inch |
| Height | 110 mm |
| Height (inches) | 4,331 inch |
| Width | 54 mm |
| Width (inches) | 2,126 inch |
| Mounting dimension - height | 75 mm |
| Net weight | 353 g |
| Storage temperature | 85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Connection type | PUSH IN |
| Cross-section for connected wire, solid core, max. | 1,5 mm² |
| Cross-section for connected wire, solid core, min. | 0,14 mm² |
| Stripping length | 8 mm |
| Colour |
black
orange |
| Design |
Installation housing; 3TE
Insta IP 20 |
| Operating altitude | ≤ 4000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | with remote contact |
| Pollution severity | 2 |
| Surge voltage category | III |
| Discharge current In (8/20 µs) | 20 kA |
| Operating height in the grounded PV system | ≤ 2000 m |
| Operating height in ungrounded PV system | ≤ 4000 m |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 2 kV |
| PV system voltage, max. Ucpv | 600 V |
| Requirements class | Type II |
| Short-circuit curent ISCPV | 11.000 A |
| Standards |
EN 61643-31
EN 50539-11 |
| Total discharge current Itotal ( 8/20µs) | 50 kA |
| Discharge current Imax (8/20µs) wire-PE | 50 kA |
| Leakage current at Un | 30 µA |
| Number of poles | 3 |
| Rated voltage (DC) | 600 V |
| Response time | ≤ 25 ns |
| Signalling contact | 250 V 1A 1CO |
| SPD type | T2 |
| Standards |
EN 61643-31
EN 50539-11 |
| Voltage type | DC |
| Stripping length | 18 mm |
| Type of connection | Screw connection |
| Stripping length, rated connection | 18 mm |
| Tightening torque, min. | 3 Nm |
| Tightening torque, max. | 4,5 Nm |
| Clamping range, rated connection | 6 mm² |
| Clamping range, min. | 1,5 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1,5 mm² |
| Wire cross-section, solid, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 25 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Voltage type | DC |
| Number of poles | 3 |
| Protection degree | IP20 |
| Colour |
black
orange |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_290532) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249052) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2857070000) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_101426) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| Approvals |  |
| ROHS | Conform |
