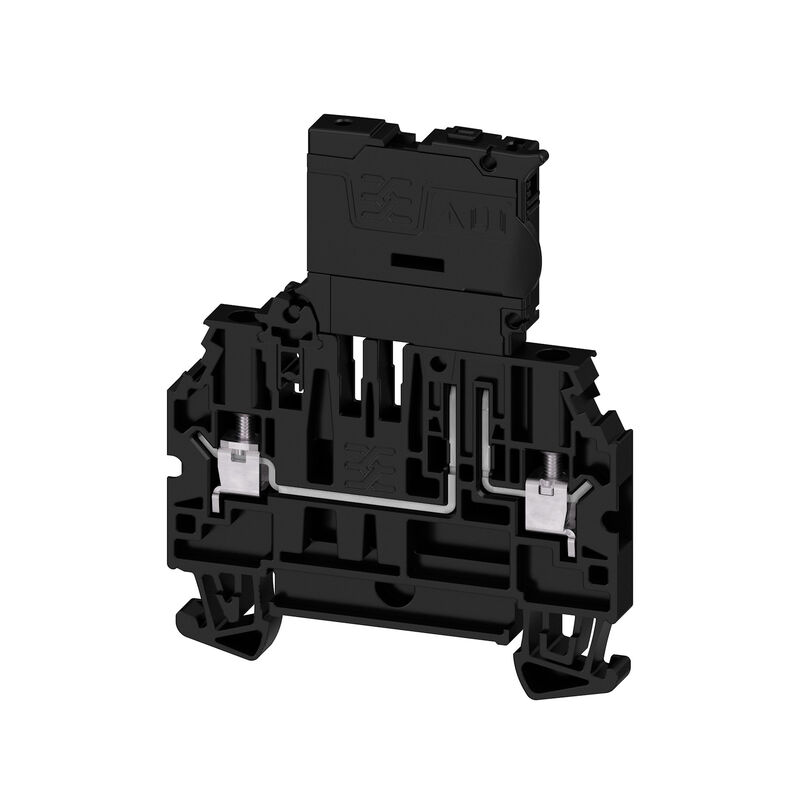

W2C 4 FS BK STB

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20

Produkt ID 2892930000

Egenskaber

General ordering data

Version	Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, G-Si. 5 x 20
Order No.	2892930000
Type	W2C 4 FS BK STB
GTIN (EAN)	4064675884514
Qty.	50 Styk

Dimensions and weights

Depth	75 mm
Depth (inches)	2,953 inch
Height	60 mm
Height (inches)	2,362 inch
Width	6,1 mm
Width (inches)	0,24 inch
Net weight	18,12 g

Temperatures

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	71bca7a4-d3a0-4004-a59e-223f1cfa650d

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV20ATEX8502U
Certificate No. (IECEX)	IECEXTUR20.0014U
Max. voltage (ATEX)	550 V
Current (ATEX)	6.3 A
Wire cross section max. (ATEX)	4 mm²
Max. voltage (IECEX)	550 V
Current (IECEX)	6.3 A
Wire cross section max. (IECEX)	4 mm²

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Installation advice	TS 35
Open sides	right
Snap-on	Yes
Type of mounting	TS 35

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0,25 mm²
Clamping screw	M 3
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	0,25 mm²
Connection direction	on side
Gauge to IEC 60947-1	A3
Number of connections	2
Stripping length	8 mm
Tightening torque, max.	0,6 Nm
Tightening torque, min.	0,5 Nm
Twin wire-end ferrules, max.	1,5 mm²
Twin wire-end ferrules, min.	0,5 mm²
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 24
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,25 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0,25 mm²

Disconnect terminals

Integral test socket

Yes

Display element

Type of voltage for indicator

AC/DC

Fuse terminals

Cartridge fuse	G-Si. 5 x 20
Display	Without LED
Fuse holder (cartridge holder)	Pivoting
Type of voltage for indicator	AC/DC

General

Installation advice	TS 35
Rail	TS 35
Standards	IEC 60947-7-3
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 24

PE rating data

PEN function

Rating data

Rated cross-section	4 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	6,3 A
Current at maximum wires	6,3 A
Standards	IEC 60947-7-3
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	6 kV
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (cURus)	E60693
Conductor size Factory wiring max. (cURus)	12 AWG
Conductor size Factory wiring min. (cURus)	24 AWG
Conductor size Field wiring max. (cURus)	12 AWG
Conductor size Field wiring min. (cURus)	24 AWG

Important note

Product information

The voltage depends on the selected fuse element or the selected indicator light

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_302467) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_302463) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_302464) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_302465) [CCC Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_307337) [CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321644) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_316850)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301876)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2892930000)
User Documentation	[NTI W2C 4 FS](https://mdcop.weidmueller.com/mediadelivery/asset/900_302471)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000899
ETIM 7.0	EC000899
ETIM 8.0	EC000899
ETIM 9.0	EC000899
ECLASS 9.0	27-14-11-16
ECLASS 9.1	27-14-11-16
ECLASS 10.0	27-14-11-16
ECLASS 11.0	27-14-11-16
ECLASS 12.0	27-14-11-16
ECLASS 13.0	27-25-01-13
ECLASS 14.0	27-25-01-13

Approvals

Approvals	![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![IECEXTUR](/picture/IECEXTUR.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![TUEVNATEX](/picture/TUEVNATEX.gif) ![UKEX](/picture/UKEX.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
