Egenskaber

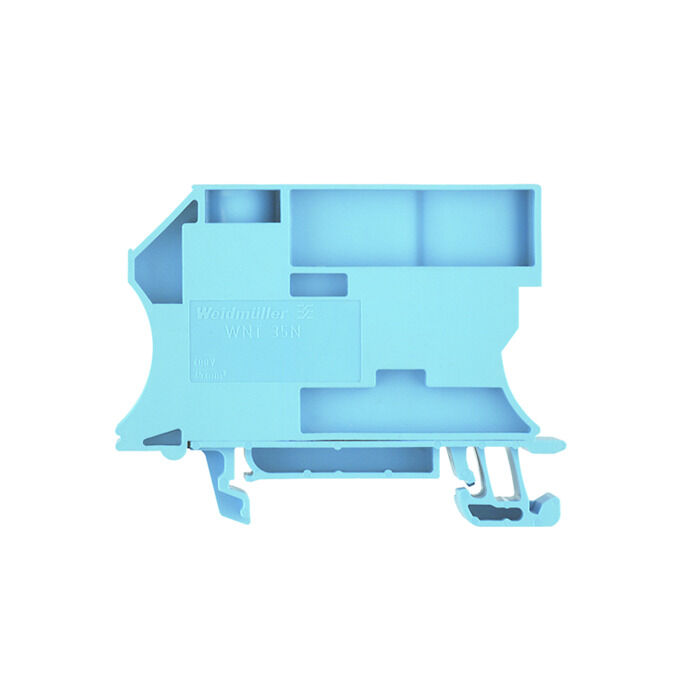

| Version | Neutral conductor modular terminal, Screw connection, 35, 400 V, 125 A, TS 35, blue |
| Order No. | 1718550000 |
| Type | WNT 35N 10X3 |
| GTIN (EAN) | 4008190362430 |
| Qty. | 20 Styk |
| Depth | 50,5 mm |
| Depth (inches) | 1,988 inch |
| Depth including DIN rail | 51 mm |
| Height | 66 mm |
| Height (inches) | 2,598 inch |
| Width | 16 mm |
| Width (inches) | 0,63 inch |
| Net weight | 63,9 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
with busbar connection 10x3 in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Cross-section for connected wire, stranded, two clampable wires, max. | 16 mm² |
| Cross-section for connected wire, stranded, two clampable wires, min. | 16 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 16 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 4 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 16 mm² |
| Explosion-tested version | No |
| Installation advice | Busbar |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 35 mm² |
| Blade size | 6.5 x 1.2 mm |
| Clampable conductor |
|
| Clamping range, max. | 50 mm² |
| Clamping range, min. | 2,5 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 50 mm² |
| Connection cross-section, stranded, min. | 2,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B8 |
| Number of connections | 1 |
| Stripping length | 18 mm |
| Tightening torque, max. | 5 Nm |
| Tightening torque, min. | 4 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 2,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 2,5 mm² |
| Installation advice | Busbar |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 14 |
| Rated cross-section | 35 mm² |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Rated current | 125 A |
| Current at maximum wires | 140 A |
| Standards | In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,26 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37359)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63053) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1718550000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1718550000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1718550000&norm=0) |
| User Documentation |
[Beipackzettel_WDL.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35396)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-11 |
| ECLASS 14.0 | 27-25-01-11 |
| Approvals |    |
| ROHS | Conform |
