Egenskaber

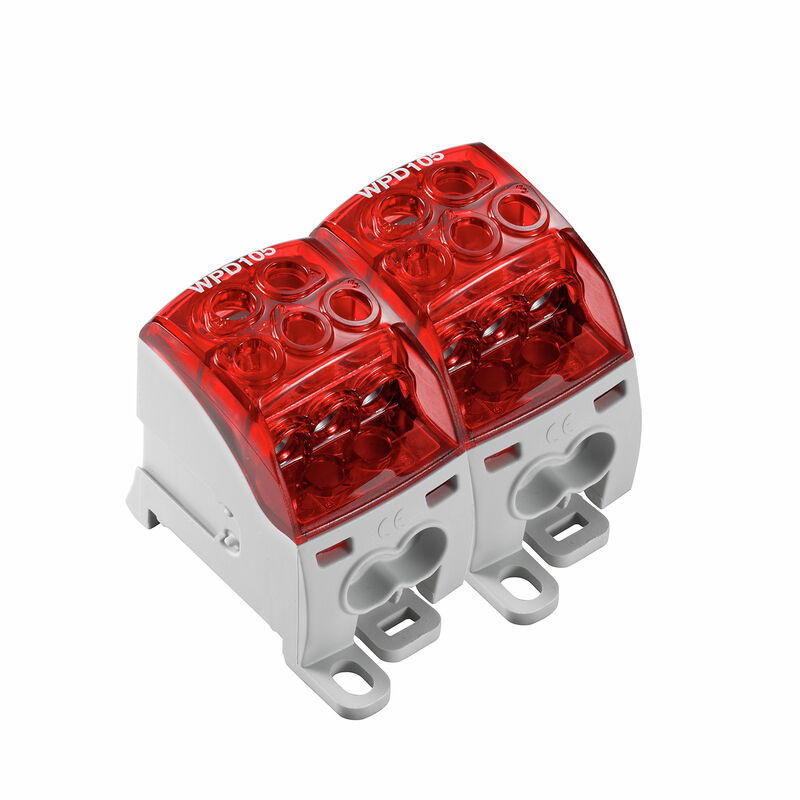

| Version | Potential distributor terminal, Screw connection, red, 35 mm², 214 A, 1000 V, Number of connections: 12, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid |
| Order No. | 2725320000 |
| Type | WPD 205 2X35/4X25+6X16 2XRD |
| GTIN (EAN) | 4050118796568 |
| Qty. | 1 Styk |

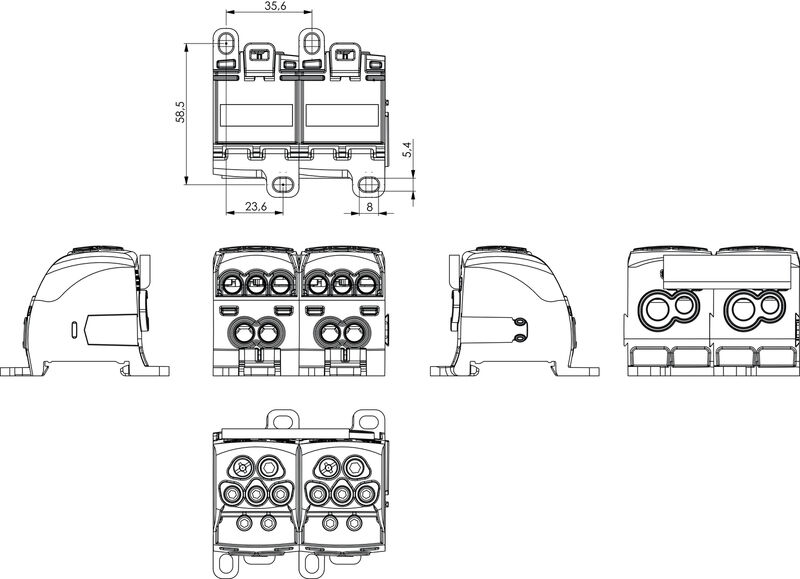

| Depth | 53,7 mm |
| Depth (inches) | 2,114 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 71,2 mm |
| Width (inches) | 2,803 inch |
| Net weight | 279 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Material | Wemid |
| Colour | red |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| Rail |
Mounting plate
TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Connection direction | on side |
| Number of connections | 12 |
| Type of connection | Screw connection |
| Number of poles | 2 |
| Rail |
Mounting plate
TS 35 |
| Standards |
IEC 60947-7-1
UL 1059 |
| Rated cross-section | 35 mm² |
| Rated voltage | 1.000 V |
| Rated AC voltage | 1.000 V |
| Rated DC voltage | 1.500 V |
| Rated current | 214 A |
| Standards |
IEC 60947-7-1
UL 1059 |
| Product information | The socket complies with flammability class V-2 according to UL94. |
| Approval/Certificate/Document of Conformity |
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253936)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89230) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253013) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165231) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_303899) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2725320000) |
| User Documentation |
[DATA SHEET WPD 205](https://mdcop.weidmueller.com/mediadelivery/asset/900_89320)
[Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |  |
| ROHS | Conform |
